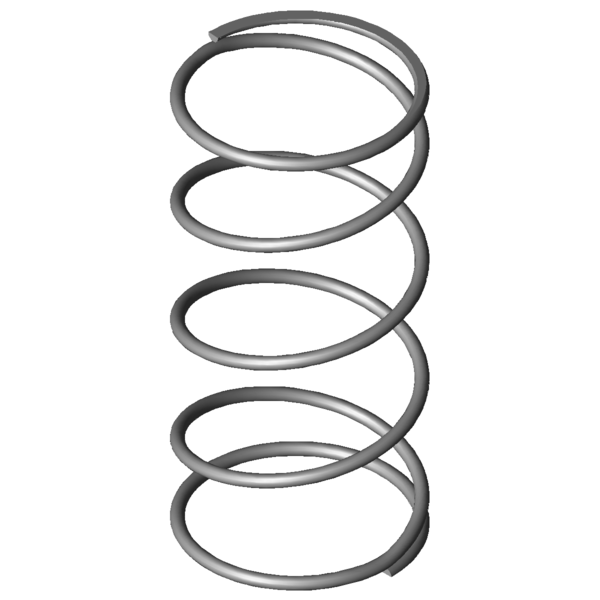

Home » Products » Compression springs » vd-313s Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-313S Stainless steel Ø 4 x 66 x 145 mm Scaled prices - Compression spring VD-313S Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-313S Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-313S Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 66 mm Mean coil diameter De 70 mm Outer coil diameter Dd 60 mm maximum diameter of mandrel Dh 73.7 mm minimum diameter of bush L0 145 mm unstressed spring length Lk mm buckling length Fn 257.969 N maximum force in static use Ln 29.12 mm Minimum length in static use sn 115.88 mm Maximum spring deflection in static use Fndyn 250.038 N maximum force in dynamic use Lndyn 32.68 mm Minimum length in dynamic use shdyn 24.96 mm Maximum stroke in dynamic use S 40.286 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 2.226 N/mm Spring rate Weight 113.2783 g weight of one spring Fntol 21.83 N (+/-) tolerance of maximum force in static use Fndtol 21.7 N (+/-) tolerance of maximum dynamic force Detol 1.4 mm (+/-) tolerances of outer coil diameter L0tol 6.69 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-313S Stainless steel Ø 4 x 66 x 145 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-313S Stainless steel Ø 4 x 66 x 145 mm Metal spring characteristic download pdf file CAD data Compression spring VD-313S Stainless steel Ø 4 x 66 x 145 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-313S Stainless steel Ø 4 x 66 x 145 mm force-path-calculation Compression spring VD-313S Inquiry formular Compression spring VD-313S Stainless steel Ø 4 x 66 x 145 mm Inquiry formular Compression spring VD-313S Similar compression springs to Compression spring VD-313S Stainless steel Ø 4 x 66 x 145 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-313S 1.4310 4 70 145 257.969 29.12 115.88 3.5 2.226 100.0 | 100.0 | 100.0 | 100.0 D-313S EN 10270-1 4 70 145 300.349 29.12 115.88 3.5 2.592 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-339J-11 68 173 2.156 1.4310 265.363 49.91 123.09 94.2 | 89.9 | 95.7 | 96.8 VD-313S 70 145 2.226 1.4310 257.969 29.12 115.88 100.0 | 100.0 | 100.0 | 100.0 VD-339Z-02 75 178 2.899 1.4310 375.884 48.34 129.67 80.2 | 84.9 | 79.0 | 76.8 VD-339F 75 146 2.926 1.4310 333.163 32.12 113.88 85.9 | 93.8 | 87.9 | 76.1 VD-315 54 150 3.258 1.4310 367.014 37.36 112.64 81.1 | 91.3 | 83.7 | 68.3 VD-364E-06 80 165 3.521 1.4310 395.725 52.6 112.4 75.7 | 82.7 | 81.1 | 63.2 VD-364R-32 69 136 3.973 1.4310 251.418 72.71 63.29 73.3 | 87.9 | 76.0 | 56.0 VD-341 68 180 3.977 1.4310 529.678 46.8 133.2 69.9 | 85.9 | 67.8 | 56.0 VD-339Z-01 75 117 4.555 1.4310 376.298 34.4 82.61 67.8 | 84.7 | 69.9 | 48.9 VD-346A 55 150 5.147 1.4310 447.151 63.13 86.88 64.9 | 85.1 | 66.3 | 43.3 VD-364E-12 70 147 5.425 1.4310 523.262 50.55 96.45 65.9 | 90.5 | 66.3 | 41.0 VD-364R-61 77 153 5.761 1.4310 563.216 55.23 97.77 62.6 | 84.1 | 65.1 | 38.6 VD-364R-43 54 135 6.072 1.4310 236.535 96.04 38.96 60.0 | 80.6 | 62.7 | 36.7 VD-340 68 120 6.249 1.4310 541.039 33.42 86.58 61.2 | 86.6 | 61.2 | 35.6 VD-369D 78.3 165 6.714 1.4310 721.467 57.55 107.45 59.2 | 80.3 | 64.2 | 33.2 VD-365 86.3 145 7.692 1.4310 790.815 42.19 102.81 57.0 | 81.5 | 60.7 | 28.9 VD-364G 60 128 8.993 1.4310 712.875 48.73 79.27 53.1 | 82.2 | 52.3 | 24.8 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring VD-313S Country of origin: DE, German; Compression spring VD-313S Product image - Compression springs VD-313S QR-Code: Compression spring VD-313S
