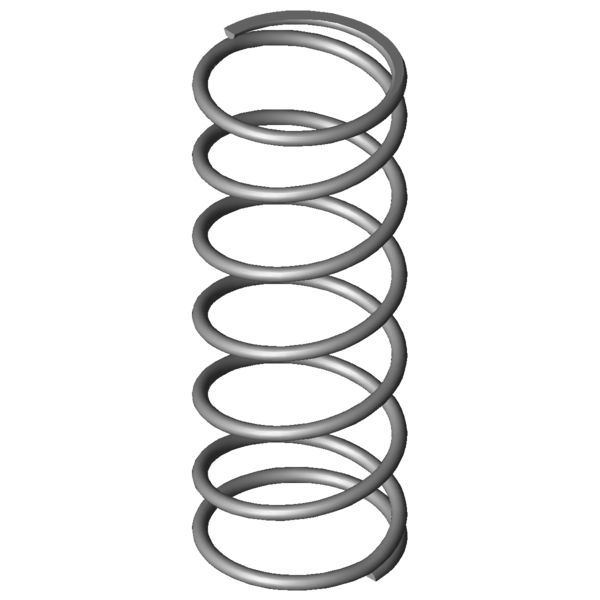

Home » Products » Compression springs » vd-341 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-341 Stainless steel Ø 5 x 63 x 180 mm Scaled prices - Compression spring VD-341 Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-341 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-341 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 63 mm Mean coil diameter De 68 mm Outer coil diameter Dd 56.5 mm maximum diameter of mandrel Dh 71 mm minimum diameter of bush L0 180 mm unstressed spring length Lk mm buckling length Fn 529.678 N maximum force in static use Ln 46.8 mm Minimum length in static use sn 133.2 mm Maximum spring deflection in static use Fndyn 511.182 N maximum force in dynamic use Lndyn 51.45 mm Minimum length in dynamic use shdyn 23.1 mm Maximum stroke in dynamic use S 31.818 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 3.977 N/mm Spring rate Weight 230.3891 g weight of one spring Fntol 33.12 N (+/-) tolerance of maximum force in static use Fndtol 32.79 N (+/-) tolerance of maximum dynamic force Detol 1 mm (+/-) tolerances of outer coil diameter L0tol 5.16 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-341 Stainless steel Ø 5 x 63 x 180 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-341 Stainless steel Ø 5 x 63 x 180 mm Metal spring characteristic download pdf file CAD data Compression spring VD-341 Stainless steel Ø 5 x 63 x 180 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-341 Stainless steel Ø 5 x 63 x 180 mm force-path-calculation Compression spring VD-341 Inquiry formular Compression spring VD-341 Stainless steel Ø 5 x 63 x 180 mm Inquiry formular Compression spring VD-341 Similar compression springs to Compression spring VD-341 Stainless steel Ø 5 x 63 x 180 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-341 1.4310 5 68 180 529.678 46.8 133.2 5.5 3.977 100.0 | 100.0 | 100.0 | 100.0 D-341 EN 10270-1 5 68 180 616.696 46.8 133.2 5.5 4.63 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-289A 55 180 1.2 1.4310 176.817 32.68 147.32 57.9 | 81.6 | 61.9 | 30.2 VD-313S-01 70 203 1.417 1.4310 229.232 41.18 161.82 62.3 | 88.6 | 62.8 | 35.6 VD-313C 60 188 1.489 1.4310 225.991 36.27 151.73 62.7 | 85.3 | 65.2 | 37.5 VD-339J-11 68 173 2.156 1.4310 265.363 49.91 123.09 73.6 | 95.4 | 71.3 | 54.2 VD-313S 70 145 2.226 1.4310 257.969 29.12 115.88 69.9 | 85.9 | 67.8 | 56.0 VD-313R-01 70 133 2.226 1.4310 231.255 29.12 103.88 66.8 | 83.7 | 60.8 | 56.0 VD-364R-33 69 200 2.701 1.4310 265.656 101.66 98.34 74.2 | 92.6 | 62.0 | 67.9 VD-339J-23 58 185 2.757 1.4310 346.784 59.2 125.8 80.0 | 90.9 | 80.0 | 69.3 VD-339Z-02 75 178 2.899 1.4310 375.884 48.34 129.67 84.5 | 96.5 | 84.2 | 72.9 VD-339F 75 146 2.926 1.4310 333.163 32.12 113.88 78.3 | 87.3 | 74.2 | 73.6 VD-364E-14 70 220 3.51 1.4310 519.193 72.1 147.9 90.8 | 90.0 | 94.0 | 88.3 VD-364E-06 80 165 3.521 1.4310 395.725 52.6 112.4 85.8 | 89.2 | 79.5 | 88.5 VD-344A-10 60 190 3.652 1.4310 446.786 67.67 122.33 91.4 | 94.3 | 88.1 | 91.8 VD-364R-32 69 136 3.973 1.4310 251.418 72.71 63.29 78.4 | 87.8 | 47.5 | 99.9 VD-341 68 180 3.977 1.4310 529.678 46.8 133.2 100.0 | 100.0 | 100.0 | 100.0 VD-347 55 195 5.147 1.4310 678.768 63.13 131.88 85.6 | 91.1 | 88.5 | 77.3 VD-364E-12 70 147 5.425 1.4310 523.262 50.55 96.45 82.9 | 89.9 | 85.6 | 73.3 VD-364R-61 77 153 5.761 1.4310 563.216 55.23 97.77 79.4 | 85.5 | 83.7 | 69.0 VD-369D 78.3 165 6.714 1.4310 721.467 57.55 107.45 74.1 | 86.0 | 77.0 | 59.2 VD-364J-04 56 175 7.314 1.4310 780.11 68.34 106.66 72.8 | 90.2 | 74.0 | 54.4 VD-364R-72 61 180 8.019 1.4310 845.175 74.6 105.4 70.5 | 91.0 | 70.9 | 49.6 VD-371 69.3 155 10.023 1.4310 993.127 55.91 99.09 63.8 | 87.9 | 63.9 | 39.7 VD-389G 75 153 12.148 1.4310 1107.916 61.8 91.2 57.7 | 82.4 | 58.1 | 32.7 VD-377 56.3 175 12.973 1.4310 1277.006 76.56 98.44 58.3 | 86.5 | 57.7 | 30.7 VD-402 71 205 16.863 1.4310 1819.055 97.13 107.87 53.6 | 82.0 | 55.1 | 23.6 VD-401 71 140 26.061 1.4310 1863.511 68.49 71.51 45.0 | 78.7 | 41.1 | 15.3 VD-407 58 160 33.732 1.4310 2199.838 94.78 65.22 42.4 | 78.9 | 36.5 | 11.8 VD-414L 63 179 38.377 1.4310 2392.166 116.67 62.33 42.5 | 82.5 | 34.5 | 10.4 VD-432 73 200 41.169 1.4310 3352.762 118.56 81.44 41.9 | 77.7 | 38.5 | 9.7 VD-414M-03 57 184 47.191 1.4310 2495.286 131.12 52.88 39.3 | 79.1 | 30.5 | 8.4 Number of similar metal springs: 29 Customs tariff number: 73202081; Compression spring VD-341 Country of origin: DE, German; Compression spring VD-341 Product image - Compression springs VD-341 QR-Code: Compression spring VD-341
