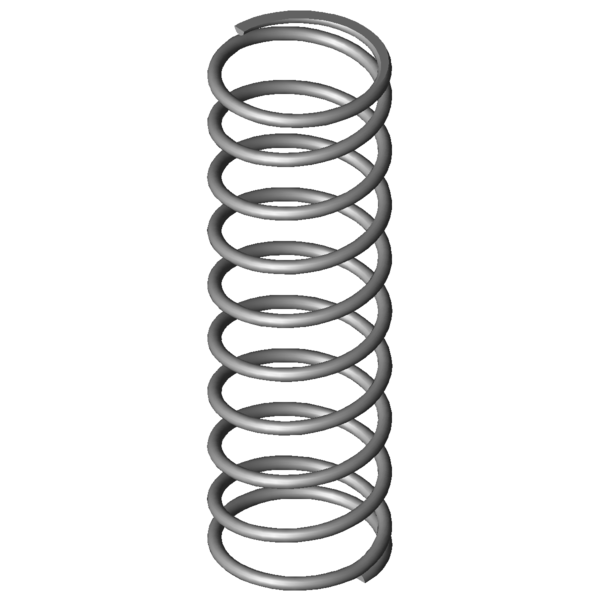

Home » Products » Compression springs » vd-339j-23 Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-339J-23 Stainless steel Ø 4.5 x 53.5 x 185 mm Scaled prices - Compression spring VD-339J-23 Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-339J-23 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339J-23 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 4.5 mm Wire diameter Di - mm Inner coil diameter D 53.5 mm Mean coil diameter De 58 mm Outer coil diameter Dd 47.8 mm maximum diameter of mandrel Dh 59.3 mm minimum diameter of bush L0 185 mm unstressed spring length Lk mm buckling length Fn 346.784 N maximum force in static use Ln 59.2 mm Minimum length in static use sn 125.8 mm Maximum spring deflection in static use Fndyn 330.244 N maximum force in dynamic use Lndyn 65.2 mm Minimum length in dynamic use shdyn 51.1 mm Maximum stroke in dynamic use S 21.235 mm pitch of spring n 8.5 pc. number of active coils nt - pc. total number of coils R 2.757 N/mm Spring rate Weight 221.8648 g weight of one spring Fntol 23.7 N (+/-) tolerance of maximum force in static use Fndtol 23.5 N (+/-) tolerance of maximum dynamic force Detol 1 mm (+/-) tolerances of outer coil diameter L0tol 6.2 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339J-23 Stainless steel Ø 4.5 x 53.5 x 185 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339J-23 Stainless steel Ø 4.5 x 53.5 x 185 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339J-23 Stainless steel Ø 4.5 x 53.5 x 185 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339J-23 Stainless steel Ø 4.5 x 53.5 x 185 mm force-path-calculation Compression spring VD-339J-23 Inquiry formular Compression spring VD-339J-23 Stainless steel Ø 4.5 x 53.5 x 185 mm Inquiry formular Compression spring VD-339J-23 Similar compression springs to Compression spring VD-339J-23 Stainless steel Ø 4.5 x 53.5 x 185 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339J-23 1.4310 4.5 58 185 346.784 59.2 125.8 8.5 2.757 100.0 | 100.0 | 100.0 | 100.0 D-339J-23 EN 10270-1 4.5 58 185 403.8 59.2 125.8 8.5 3.21 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-289A 55 180 1.2 1.4310 176.817 32.68 147.32 66.5 | 87.7 | 68.2 | 43.5 VD-289C-03 48 176 1.2 1.4310 158.083 44.32 131.68 65.7 | 83.0 | 70.6 | 43.5 VD-313C 60 188 1.489 1.4310 225.991 36.27 151.73 73.3 | 91.7 | 74.0 | 54.0 VD-313E-13 48 200 1.679 1.4310 243.442 55.01 144.99 74.8 | 85.1 | 78.5 | 60.9 VD-339J-04 58 210 1.896 1.4310 241.226 82.75 127.25 83.0 | 96.0 | 84.2 | 68.8 VD-339J-11 68 173 2.156 1.4310 265.363 49.91 123.09 86.1 | 92.9 | 87.2 | 78.2 VD-339J-23 58 185 2.757 1.4310 346.784 59.2 125.8 100.0 | 100.0 | 100.0 | 100.0 VD-315 54 150 3.258 1.4310 367.014 37.36 112.64 88.1 | 87.7 | 92.0 | 84.6 VD-344A-10 60 190 3.652 1.4310 446.786 67.67 122.33 85.9 | 94.7 | 87.4 | 75.5 VD-341 68 180 3.977 1.4310 529.678 46.8 133.2 80.0 | 90.9 | 80.0 | 69.3 VD-339M 50 187 4.01 1.4310 498.87 62.58 124.42 82.7 | 95.0 | 84.2 | 68.8 VD-364R-44 54 200 4.103 1.4310 259.411 136.77 63.23 72.8 | 88.7 | 62.5 | 67.2 VD-347 55 195 5.147 1.4310 678.768 63.13 131.88 73.3 | 93.2 | 73.2 | 53.6 VD-346A 55 150 5.147 1.4310 447.151 63.13 86.88 71.8 | 88.6 | 73.3 | 53.6 VD-364H 60 213 5.206 1.4310 712.402 76.17 136.83 70.6 | 88.4 | 70.3 | 52.9 VD-364J-04 56 175 7.314 1.4310 780.11 68.34 106.66 64.4 | 91.0 | 64.6 | 37.7 VD-364R-72 61 180 8.019 1.4310 845.175 74.6 105.4 62.0 | 89.1 | 62.4 | 34.4 VD-377A 56.3 217 8.168 1.4310 839.767 114.19 102.81 59.9 | 84.6 | 61.5 | 33.7 VD-364J-24 48 185 8.344 1.4310 769.33 92.8 92.2 60.1 | 88.2 | 59.2 | 33.0 VD-383A 46.3 195 11.642 1.4310 548.878 147.85 47.15 52.0 | 82.0 | 50.3 | 23.7 VD-377 56.3 175 12.973 1.4310 1277.006 76.56 98.44 53.9 | 87.7 | 52.7 | 21.2 VD-383 46.3 195 17.23 1.4310 1568.138 103.99 91.01 48.4 | 82.0 | 47.2 | 16.0 Number of similar metal springs: 21 Customs tariff number: 73202081; Compression spring VD-339J-23 Country of origin: DE, German; Compression spring VD-339J-23 Product image - Compression springs VD-339J-23 QR-Code: Compression spring VD-339J-23
