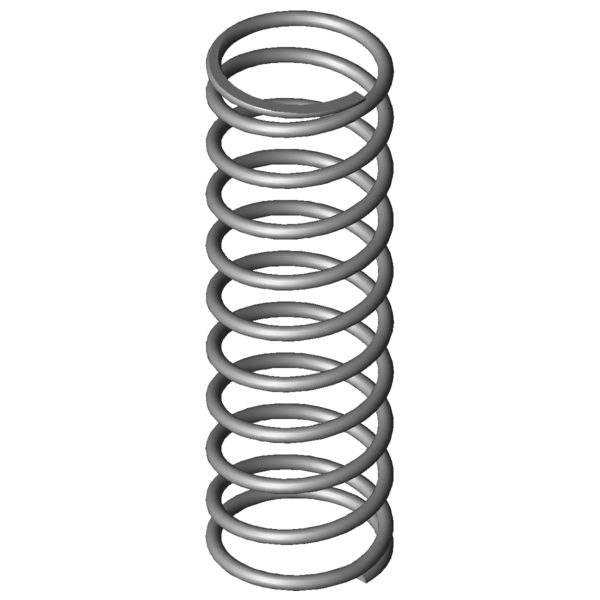

Home » Products » Compression springs » vd-344a-10 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-344A-10 Stainless steel Ø 5 x 55 x 190 mm Scaled prices - Compression spring VD-344A-10 Quantity Single price [EUR] 1 14.4000 EUR 2 11.4700 EUR 3 7.0900 EUR 7 5.2300 EUR 17 3.6600 EUR 37 3.0100 EUR 75 2.9700 EUR 125 2.9700 EUR 175 2.9700 EUR 250 2.9700 EUR 350 2.9700 EUR Compression spring Buy Product image Compression spring VD-344A-10 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-344A-10 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 55 mm Mean coil diameter De 60 mm Outer coil diameter Dd 48.5 mm maximum diameter of mandrel Dh 62.2 mm minimum diameter of bush L0 190 mm unstressed spring length Lk mm buckling length Fn 446.786 N maximum force in static use Ln 67.67 mm Minimum length in static use sn 122.33 mm Maximum spring deflection in static use Fndyn 423.658 N maximum force in dynamic use Lndyn 74 mm Minimum length in dynamic use shdyn 51.51 mm Maximum stroke in dynamic use S 20.556 mm pitch of spring n 9 pc. number of active coils nt pc. total number of coils R 3.652 N/mm Spring rate Weight 294.9956 g weight of one spring Fntol 32.68 N (+/-) tolerance of maximum force in static use Fndtol 30.32 N (+/-) tolerance of maximum dynamic force Detol 1 mm (+/-) tolerances of outer coil diameter L0tol 5.35 mm (+/-) tolerance of unstressed spring length Price group #AK - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-344A-10 Stainless steel Ø 5 x 55 x 190 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-344A-10 Stainless steel Ø 5 x 55 x 190 mm Metal spring characteristic download pdf file CAD data Compression spring VD-344A-10 Stainless steel Ø 5 x 55 x 190 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-344A-10 Stainless steel Ø 5 x 55 x 190 mm force-path-calculation Compression spring VD-344A-10 Inquiry formular Compression spring VD-344A-10 Stainless steel Ø 5 x 55 x 190 mm Inquiry formular Compression spring VD-344A-10 Similar compression springs to Compression spring VD-344A-10 Stainless steel Ø 5 x 55 x 190 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-344A-10 1.4310 5 60 190 446.786 67.67 122.33 9 3.652 100.0 | 100.0 | 100.0 | 100.0 D-344A-10 EN 10270-1 5 60 190 520.186 67.67 122.33 9 4.252 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-289A 55 180 1.2 1.4310 176.817 32.68 147.32 59.2 | 83.5 | 61.3 | 32.9 VD-313S-01 70 203 1.417 1.4310 229.232 41.18 161.82 62.9 | 86.4 | 63.5 | 38.8 VD-313C 60 188 1.489 1.4310 225.991 36.27 151.73 65.6 | 90.3 | 65.6 | 40.8 VD-313E-13 48 200 1.679 1.4310 243.442 55.01 144.99 65.9 | 82.3 | 69.4 | 46.0 VD-339J-04 58 210 1.896 1.4310 241.226 82.75 127.25 73.1 | 92.4 | 75.1 | 51.9 VD-339J-11 68 173 2.156 1.4310 265.363 49.91 123.09 76.1 | 89.8 | 79.4 | 59.0 VD-364R-33 69 200 2.701 1.4310 265.656 101.66 98.34 78.1 | 90.4 | 69.9 | 74.0 VD-339J-23 58 185 2.757 1.4310 346.784 59.2 125.8 85.9 | 94.7 | 87.4 | 75.5 VD-344A-10 60 190 3.652 1.4310 446.786 67.67 122.33 100.0 | 100.0 | 100.0 | 100.0 VD-341 68 180 3.977 1.4310 529.678 46.8 133.2 91.4 | 94.3 | 88.1 | 91.8 VD-339M 50 187 4.01 1.4310 498.87 62.58 124.42 91.9 | 90.6 | 93.9 | 91.1 VD-364R-44 54 200 4.103 1.4310 259.411 136.77 63.23 78.4 | 91.4 | 54.9 | 89.0 VD-347 55 195 5.147 1.4310 678.768 63.13 131.88 82.2 | 96.4 | 79.3 | 71.0 VD-364H 60 213 5.206 1.4310 712.402 76.17 136.83 79.9 | 93.4 | 76.1 | 70.1 VD-364J-04 56 175 7.314 1.4310 780.11 68.34 106.66 71.4 | 92.1 | 72.2 | 49.9 VD-364R-72 61 180 8.019 1.4310 845.175 74.6 105.4 69.1 | 92.1 | 69.5 | 45.5 VD-377A 56.3 217 8.168 1.4310 839.767 114.19 102.81 66.8 | 86.9 | 68.6 | 44.7 VD-364J-24 48 185 8.344 1.4310 769.33 92.8 92.2 66.6 | 89.4 | 66.7 | 43.8 VD-383A 46.3 195 11.642 1.4310 548.878 147.85 47.15 58.7 | 84.7 | 60.0 | 31.4 VD-377 56.3 175 12.973 1.4310 1277.006 76.56 98.44 58.1 | 88.4 | 57.7 | 28.2 VD-383 46.3 195 17.23 1.4310 1568.138 103.99 91.01 52.4 | 84.7 | 51.4 | 21.2 VD-408 58 230 22.938 1.4310 2251.11 131.86 98.14 48.9 | 80.6 | 50.0 | 15.9 VD-389N-04 46 194 27.244 1.4310 2061.324 118.34 75.66 45.7 | 82.0 | 41.8 | 13.4 VD-407 58 160 33.732 1.4310 2199.838 94.78 65.22 42.9 | 81.1 | 36.8 | 10.8 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring VD-344A-10 Country of origin: DE, German; Compression spring VD-344A-10 Product image - Compression springs VD-344A-10 QR-Code: Compression spring VD-344A-10
