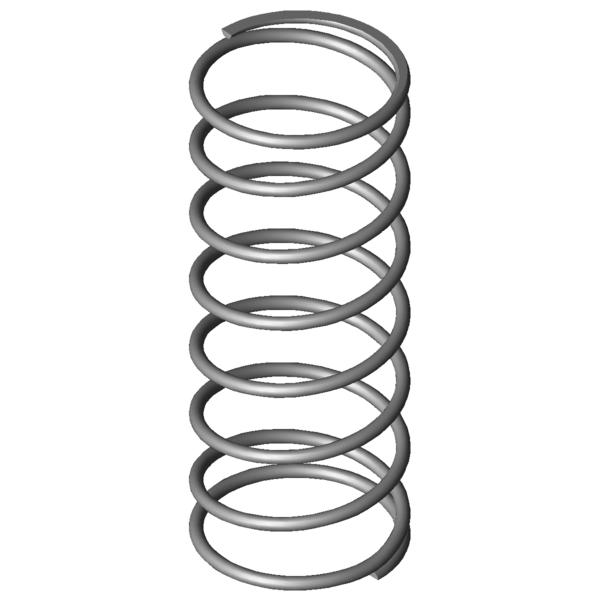

Home » Products » Compression springs » vd-339j-11 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339J-11 Stainless steel Ø 4.5 x 63.5 x 173 mm Scaled prices - Compression spring VD-339J-11 Quantity Single price [EUR] 1 14.4000 EUR 2 11.4700 EUR 3 7.0900 EUR 7 5.2300 EUR 17 3.6600 EUR 37 3.0100 EUR 75 2.9700 EUR 125 2.9700 EUR 175 2.9700 EUR 250 2.9700 EUR 350 2.9700 EUR Compression spring Buy Product image Compression spring VD-339J-11 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339J-11 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 63.5 mm Mean coil diameter De 68 mm Outer coil diameter Dd 57.1 mm maximum diameter of mandrel Dh 70.7 mm minimum diameter of bush L0 173 mm unstressed spring length Lk mm buckling length Fn 265.363 N maximum force in static use Ln 49.91 mm Minimum length in static use sn 123.09 mm Maximum spring deflection in static use Fndyn 252.798 N maximum force in dynamic use Lndyn 55.74 mm Minimum length in dynamic use shdyn 62.29 mm Maximum stroke in dynamic use S 25.923 mm pitch of spring n 6.5 pc. number of active coils nt pc. total number of coils R 2.156 N/mm Spring rate Weight 213.1758 g weight of one spring Fntol 23.27 N (+/-) tolerance of maximum force in static use Fndtol 23.05 N (+/-) tolerance of maximum dynamic force Detol 1.4 mm (+/-) tolerances of outer coil diameter L0tol 7.42 mm (+/-) tolerance of unstressed spring length Price group #AK - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339J-11 Stainless steel Ø 4.5 x 63.5 x 173 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339J-11 Stainless steel Ø 4.5 x 63.5 x 173 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339J-11 Stainless steel Ø 4.5 x 63.5 x 173 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339J-11 Stainless steel Ø 4.5 x 63.5 x 173 mm force-path-calculation Compression spring VD-339J-11 Inquiry formular Compression spring VD-339J-11 Stainless steel Ø 4.5 x 63.5 x 173 mm Inquiry formular Compression spring VD-339J-11 Similar compression springs to Compression spring VD-339J-11 Stainless steel Ø 4.5 x 63.5 x 173 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339J-11 1.4310 4.5 68 173 265.363 49.91 123.09 6.5 2.156 80.3 | 88.3 | 82.0 | 70.6 D-339J-11 EN 10270-1 4.5 68 173 308.959 49.91 123.09 6.5 2.51 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-289A 55 180 1.2 1.4310 176.817 32.68 147.32 71.2 | 82.7 | 75.1 | 55.7 VD-313S-01 70 203 1.417 1.4310 229.232 41.18 161.82 79.1 | 90.4 | 81.2 | 65.7 VD-313C 60 188 1.489 1.4310 225.991 36.27 151.73 79.7 | 86.8 | 83.1 | 69.1 VD-339J-11 68 173 2.156 1.4310 265.363 49.91 123.09 80.3 | 88.3 | 82.0 | 70.6 VD-313S 70 145 2.226 1.4310 257.969 29.12 115.88 78.3 | 83.6 | 78.3 | 72.9 VD-313R-01 70 133 2.226 1.4310 231.255 29.12 103.88 90.1 | 87.6 | 85.8 | 96.8 VD-364R-33 69 200 2.701 1.4310 265.656 101.66 98.34 86.1 | 88.5 | 89.9 | 79.8 VD-339J-23 58 185 2.757 1.4310 346.784 59.2 125.8 86.1 | 92.9 | 87.2 | 78.2 VD-339Z-02 75 178 2.899 1.4310 375.884 48.34 129.67 95.3 | 93.5 | 97.5 | 95.0 VD-339F 75 146 2.926 1.4310 333.163 32.12 113.88 90.7 | 89.1 | 87.1 | 95.9 VD-364E-06 80 165 3.521 1.4310 395.725 52.6 112.4 91.6 | 94.8 | 93.3 | 86.7 VD-344A-10 60 190 3.652 1.4310 446.786 67.67 122.33 76.1 | 89.8 | 79.4 | 59.0 VD-364R-32 69 136 3.973 1.4310 251.418 72.71 63.29 71.1 | 85.8 | 73.1 | 54.3 VD-341 68 180 3.977 1.4310 529.678 46.8 133.2 84.0 | 90.4 | 84.9 | 76.7 VD-364E-12 70 147 5.425 1.4310 523.262 50.55 96.45 73.0 | 87.6 | 75.0 | 56.3 VD-364R-61 77 153 5.761 1.4310 563.216 55.23 97.77 71.6 | 89.1 | 72.9 | 53.0 VD-369D 78.3 165 6.714 1.4310 721.467 57.55 107.45 68.3 | 90.3 | 69.0 | 45.5 VD-364J-04 56 175 7.314 1.4310 780.11 68.34 106.66 59.2 | 87.7 | 60.3 | 29.5 VD-364R-72 61 180 8.019 1.4310 845.175 74.6 105.4 57.4 | 86.9 | 58.5 | 26.9 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring VD-339J-11 Country of origin: DE, German; Compression spring VD-339J-11 Product image - Compression springs VD-339J-11 QR-Code: Compression spring VD-339J-11
