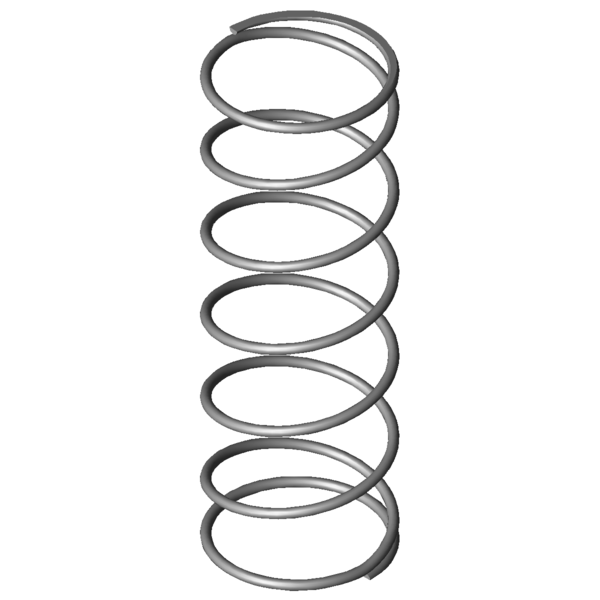

Home » Products » Compression springs » vd-313s-01 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-313S-01 Stainless steel Ø 4 x 66 x 203 mm Scaled prices - Compression spring VD-313S-01 Quantity Single price [EUR] 1 13.8800 EUR 2 11.0500 EUR 3 6.5900 EUR 7 4.6100 EUR 17 2.9500 EUR 37 2.4600 EUR 75 2.3800 EUR 125 2.3800 EUR 175 2.3800 EUR 250 2.3800 EUR 350 2.3800 EUR Compression spring Buy Product image Compression spring VD-313S-01 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-313S-01 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 66 mm Mean coil diameter De 70 mm Outer coil diameter Dd 60 mm maximum diameter of mandrel Dh 73.7 mm minimum diameter of bush L0 203 mm unstressed spring length Lk mm buckling length Fn 229.232 N maximum force in static use Ln 41.18 mm Minimum length in static use sn 161.82 mm Maximum spring deflection in static use Fndyn 221.319 N maximum force in dynamic use Lndyn 46.77 mm Minimum length in dynamic use shdyn 49.56 mm Maximum stroke in dynamic use S 36.182 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 1.417 N/mm Spring rate Weight 154.4704 g weight of one spring Fntol 19.22 N (+/-) tolerance of maximum force in static use Fndtol 19.09 N (+/-) tolerance of maximum dynamic force Detol 1.4 mm (+/-) tolerances of outer coil diameter L0tol 9.23 mm (+/-) tolerance of unstressed spring length Price group #AH - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-313S-01 Stainless steel Ø 4 x 66 x 203 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-313S-01 Stainless steel Ø 4 x 66 x 203 mm Metal spring characteristic download pdf file CAD data Compression spring VD-313S-01 Stainless steel Ø 4 x 66 x 203 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-313S-01 Stainless steel Ø 4 x 66 x 203 mm force-path-calculation Compression spring VD-313S-01 Inquiry formular Compression spring VD-313S-01 Stainless steel Ø 4 x 66 x 203 mm Inquiry formular Compression spring VD-313S-01 Similar compression springs to Compression spring VD-313S-01 Stainless steel Ø 4 x 66 x 203 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-313S-01 1.4310 4 70 203 229.232 41.18 161.82 5.5 1.417 100.0 | 100.0 | 100.0 | 100.0 D-313S-01 EN 10270-1 4 70 203 266.891 41.18 161.82 5.5 1.649 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-313S-01 70 203 1.417 1.4310 229.232 41.18 161.82 100.0 | 100.0 | 100.0 | 100.0 VD-313C 60 188 1.489 1.4310 225.991 36.27 151.73 93.6 | 89.4 | 96.2 | 95.1 VD-339G 75 224 1.862 1.4310 332.631 45.34 178.66 82.3 | 90.9 | 79.7 | 76.1 VD-339J-04 58 210 1.896 1.4310 241.226 82.75 127.25 83.7 | 89.5 | 86.8 | 74.7 VD-339J-11 68 173 2.156 1.4310 265.363 49.91 123.09 79.1 | 90.4 | 81.2 | 65.7 VD-313S 70 145 2.226 1.4310 257.969 29.12 115.88 78.1 | 90.5 | 80.2 | 63.6 VD-364R-33 69 200 2.701 1.4310 265.656 101.66 98.34 71.8 | 89.5 | 73.5 | 52.4 VD-339J-23 58 185 2.757 1.4310 346.784 59.2 125.8 70.3 | 87.6 | 71.9 | 51.4 VD-339Z-02 75 178 2.899 1.4310 375.884 48.34 129.67 68.8 | 87.0 | 70.6 | 48.9 VD-364E-14 70 220 3.51 1.4310 519.193 72.1 147.9 65.5 | 88.3 | 67.8 | 40.4 VD-344A-10 60 190 3.652 1.4310 446.786 67.67 122.33 62.9 | 86.4 | 63.5 | 38.8 VD-364R-62 77 230 3.728 1.4310 563.555 78.81 151.19 62.3 | 81.9 | 67.1 | 38.0 VD-341 68 180 3.977 1.4310 529.678 46.8 133.2 62.3 | 88.6 | 62.8 | 35.6 VD-364R-44 54 200 4.103 1.4310 259.411 136.77 63.23 60.2 | 82.4 | 63.7 | 34.5 VD-369E 78.3 210 4.345 1.4310 555.897 82.05 127.95 58.6 | 83.2 | 60.2 | 32.6 VD-347 55 195 5.147 1.4310 678.768 63.13 131.88 56.7 | 84.9 | 57.6 | 27.5 Number of similar metal springs: 15 Customs tariff number: 73202081; Compression spring VD-313S-01 Country of origin: DE, German; Compression spring VD-313S-01 Product image - Compression springs VD-313S-01 QR-Code: Compression spring VD-313S-01
