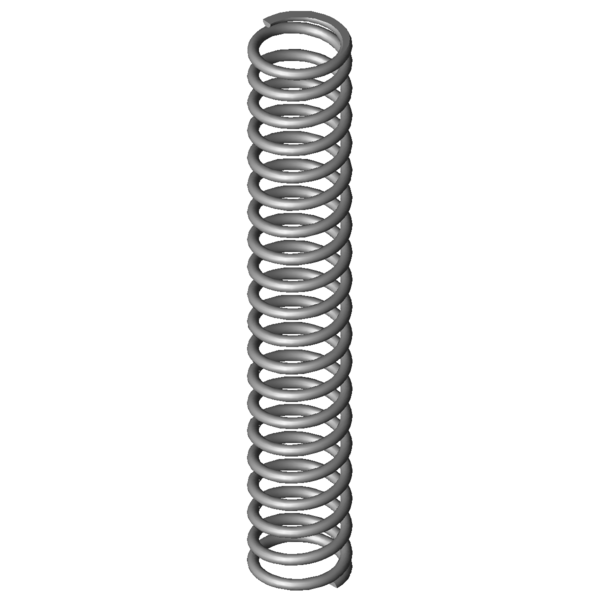

Home » Products » Compression springs » vd-404 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-404 Stainless steel Ø 8 x 63 x 435 mm Scaled prices - Compression spring VD-404 Quantity Single price [EUR] 1 28.6200 EUR 2 22.8000 EUR 3 21.1300 EUR 7 19.5000 EUR 17 18.2300 EUR 37 16.3700 EUR 75 16.0500 EUR 125 16.0500 EUR 175 16.0500 EUR 250 16.0500 EUR 350 16.0500 EUR Compression spring Buy Product image Compression spring VD-404 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-404 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 8 mm Wire diameter Di mm Inner coil diameter D 63 mm Mean coil diameter De 71 mm Outer coil diameter Dd 53.6 mm maximum diameter of mandrel Dh 73.1 mm minimum diameter of bush L0 435 mm unstressed spring length Lk 314.17 mm buckling length Fn 1878.302 N maximum force in static use Ln 192.57 mm Minimum length in static use sn 242.43 mm Maximum spring deflection in static use Fndyn 1764.159 N maximum force in dynamic use Lndyn 207.3 mm Minimum length in dynamic use shdyn 42.16 mm Maximum stroke in dynamic use S 23.081 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 7.748 N/mm Spring rate Weight 1612.1097 g weight of one spring Fntol 96.8 N (+/-) tolerance of maximum force in static use Fndtol 94.9 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 7.1 mm (+/-) tolerance of unstressed spring length Price group #BB - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-404 Stainless steel Ø 8 x 63 x 435 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-404 Stainless steel Ø 8 x 63 x 435 mm Metal spring characteristic download pdf file CAD data Compression spring VD-404 Stainless steel Ø 8 x 63 x 435 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-404 Stainless steel Ø 8 x 63 x 435 mm force-path-calculation Compression spring VD-404 Inquiry formular Compression spring VD-404 Stainless steel Ø 8 x 63 x 435 mm Inquiry formular Compression spring VD-404 Similar compression springs to Compression spring VD-404 Stainless steel Ø 8 x 63 x 435 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-404 1.4310 8 71 435 1878.302 192.57 242.43 18.5 7.748 100.0 | 100.0 | 100.0 | 100.0 D-404 EN 10270-1 8 71 435 2186.881 192.57 242.43 18.5 9.021 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-364R-34 69 296 1.825 1.4310 275.469 145.08 150.92 46.8 | 78.4 | 38.5 | 23.6 VD-349A 55 410 1.944 1.4310 504.34 150.63 259.38 54.4 | 78.1 | 60.2 | 25.1 VD-368 86.3 490 2.154 1.4310 800.599 118.27 371.73 55.0 | 83.3 | 53.9 | 27.8 VD-364R-63 77 365 2.347 1.4310 579.431 118.11 246.89 59.5 | 83.7 | 64.5 | 30.3 VD-349 55 410 2.365 1.4310 672.508 125.63 284.38 56.4 | 78.1 | 60.5 | 30.5 VD-364E-16 70 335 2.387 1.4310 558.819 100.9 234.1 58.5 | 81.5 | 63.2 | 30.8 VD-374A 69.3 500 2.45 1.4310 760.021 189.79 310.21 59.6 | 87.8 | 59.3 | 31.6 VD-374 69.3 500 2.98 1.4310 1018.211 158.29 341.71 62.9 | 87.8 | 62.6 | 38.5 VD-373A 69.3 340 2.98 1.4310 541.454 158.29 181.71 58.4 | 84.8 | 51.9 | 38.5 VD-389E-26 89 390 3.048 1.4310 797.571 128.35 261.65 64.2 | 85.6 | 67.6 | 39.3 VD-389J 75 405 4.311 1.4310 1104.781 148.71 256.29 74.7 | 91.8 | 76.7 | 55.6 VD-373 69.3 340 4.41 1.4310 1009.725 111.04 228.96 72.0 | 84.8 | 74.1 | 56.9 VD-398 88 410 5.6 1.4310 1506.4 141 269 83.0 | 91.6 | 85.2 | 72.3 VD-399D 81 345 6.824 1.4310 1342.438 148.29 196.71 84.5 | 89.0 | 76.3 | 88.1 VD-404 71 435 7.748 1.4310 1878.302 192.57 242.43 100.0 | 100.0 | 100.0 | 100.0 VD-403 71 300 11.467 1.4310 1888.529 135.3 164.7 80.3 | 89.7 | 83.7 | 67.6 VD-434 73 410 18.915 1.4310 3319.382 234.51 175.49 65.3 | 90.5 | 64.5 | 41.0 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring VD-404 Country of origin: DE, German; Compression spring VD-404 Product image - Compression springs VD-404 QR-Code: Compression spring VD-404
