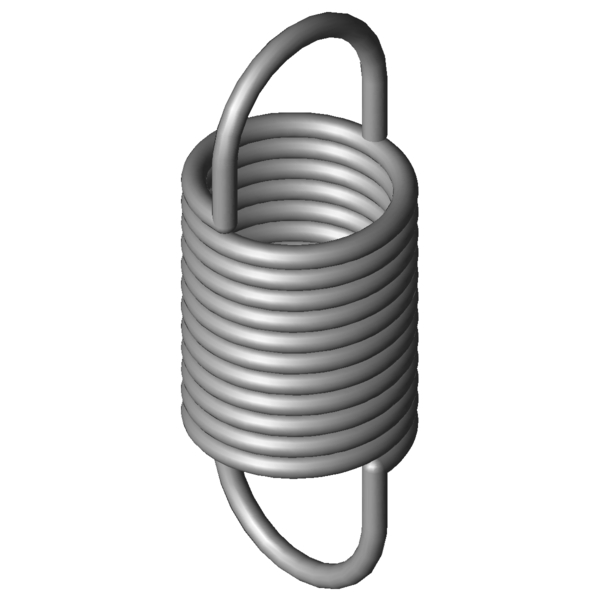

Home » Products » Extension Springs » rz-136e-10x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-136E-10X Stainless steel Ø 2 x 18.6 x 49 mm / 270° Scaled prices - Extension Spring RZ-136E-10X Quantity Single price [EUR] 1 6.5600 EUR 2 4.1300 EUR 3 2.9300 EUR 7 2.5000 EUR 17 1.2300 EUR 37 0.9300 EUR 75 0.7600 EUR 125 0.7108 EUR 175 0.6967 EUR 250 0.6533 EUR 350 0.6276 EUR 450 0.5960 EUR Extension Spring Buy Product image Extension Spring RZ-136E-10X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-136E-10X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 18.6 mm outer coil diameter Dh 22.1 mm minimum bush diameter L0 49 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 25.5 mm length of unstressed spring body Ln 92.3 mm maximum spring length, inner loop to inner loop sn 43.3 mm Maximum spring deflection Fn 121.3 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 11.75 mm distance of inner edge of loop from the spring body R 2.605 N/mm Spring rate F0 8.551 N initial tension Fntol 8.39 N (+/-) tolerance of maximum spring force L0tol 1.3 mm (+/-) tolerance of unstressed length Detol 0.45 mm (+/-) tolerance of outer coil diameter Oesttol 18 degree (+/-) tolerance of loop position Weight 17.4888 g weight of one spring Price group ZK - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-136E-10X Stainless steel Ø 2 x 18.6 x 49 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-136E-10X Stainless steel Ø 2 x 18.6 x 49 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-136E-10X Stainless steel Ø 2 x 18.6 x 49 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-136E-10X Stainless steel Ø 2 x 18.6 x 49 mm / 270° force-path-calculation Extension Spring RZ-136E-10X Inquiry formular Extension Spring RZ-136E-10X Stainless steel Ø 2 x 18.6 x 49 mm / 270° Inquiry formular Extension Spring RZ-136E-10X Similar extension springs to Extension Spring RZ-136E-10X Stainless steel Ø 2 x 18.6 x 49 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-136E-10X 1.4310 2 18.6 49 121.3 92.3 43.3 2.605 100.0 | 100.0 | 100.0 | 100.0 Z-136E-10X EN 10270-1 2 18.6 49 144.7 93.15 44.15 3.033 92.1 | 100.0 | 91.0 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-105X 13.7 50.5 0.447 1.4310 44.22 142.44 91.94 45.6 | 77.7 | 41.8 | 17.2 RZ-101X 17.2 39.8 0.448 1.4310 35.5 114.11 74.31 46.5 | 78.7 | 43.8 | 17.1 RZ-115V-10X 20 48.9 0.509 1.4310 51.22 143.27 94.37 50.9 | 89.3 | 44.1 | 19.4 RZ-115F-10X 20 44 0.536 1.4310 44.2 122.8 78.8 50.0 | 84.3 | 45.7 | 20.0 RZ-115JX 15 55.9 0.54 1.4310 55.72 151.04 95.14 48.7 | 79.4 | 45.7 | 20.9 RZ-116X 21.6 50.2 0.61 1.4310 56.93 138.26 88.06 53.0 | 87.9 | 48.1 | 23.1 RZ-115HX 15 43.3 0.848 1.4310 55.72 103.84 60.54 57.1 | 79.7 | 58.7 | 32.9 RZ-130GX 20 56.8 0.967 1.4310 84.95 138.92 82.12 62.7 | 89.8 | 61.4 | 36.9 RZ-119X 17.6 43.8 1.191 1.4310 69.37 97.83 54.03 67.5 | 88.0 | 68.7 | 45.8 RZ-134X 22 54.8 1.489 1.4310 103.4 119.4 64.6 74.9 | 91.3 | 76.1 | 57.1 RZ-137X 18.6 65 1.55 1.4310 121.3 137.79 72.79 77.0 | 91.8 | 79.7 | 59.5 RZ-121FX 15.5 43.5 1.553 1.4310 78.31 90.19 46.69 74.2 | 84.0 | 78.6 | 59.9 RZ-130FX 20 46 1.563 1.4310 84.95 96.84 50.84 76.5 | 92.3 | 77.6 | 59.6 RZ-130K-20X 16 45 2.516 1.4310 105 83.6 38.6 91.4 | 89.3 | 87.9 | 97.1 RZ-136E-10X 18.6 49 2.605 1.4310 121.3 92.3 43.3 100.0 | 100.0 | 100.0 | 100.0 RZ-139X 18 48.4 2.909 1.4310 125.1 88.18 39.78 94.0 | 98.5 | 94.4 | 89.1 RZ-141FX 16 53 3.239 1.4310 139.7 92.56 39.56 87.1 | 92.8 | 89.1 | 79.3 RZ-147K-20X 20 51.5 3.381 1.4310 147.2 91.6 40.1 85.6 | 93.0 | 87.5 | 76.3 RZ-141E-10X 16 41 5.233 1.4310 139.7 65.5 24.5 70.2 | 89.9 | 71.7 | 49.1 RZ-157AX 18.5 62 5.657 1.4310 223.4 98.31 36.31 66.9 | 86.2 | 69.1 | 45.5 RZ-147MX 15 54.4 6.206 1.4310 192.2 82.7 28.3 64.2 | 87.2 | 64.2 | 41.2 RZ-156E-10X 20 51 6.54 1.4310 207.8 80.3 29.3 64.1 | 89.7 | 63.0 | 39.5 RZ-157X 18.5 54.1 7.101 1.4310 223.4 83.02 28.92 62.3 | 90.0 | 60.5 | 36.3 RZ-162LX 20 53.8 10.841 1.4310 282.9 77.87 24.07 52.7 | 85.2 | 49.2 | 23.8 RZ-160X 15 48.5 14.891 1.4310 269.8 65.05 16.55 48.4 | 86.5 | 41.6 | 17.2 RZ-162U-38X 18 60.5 16.471 1.4310 373.9 81.08 20.58 45.6 | 81.5 | 40.0 | 15.4 RZ-175X 19.2 62 19.064 1.4310 422.9 82.28 20.28 43.6 | 79.5 | 37.8 | 13.4 RZ-177QX 18 56.9 50.481 1.4310 617.1 67.99 11.09 35.7 | 79.5 | 22.6 | 5.0 Number of similar metal springs: 27 Customs tariff number: 73202085; Extension Spring RZ-136E-10X Country of origin: DE, German; Extension Spring RZ-136E-10X Product image - Extension Springs RZ-136E-10X QR-Code: Extension Spring RZ-136E-10X
