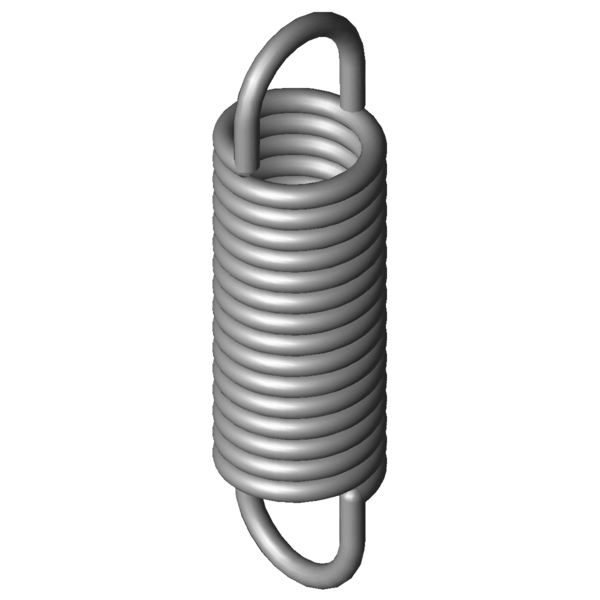

Home » Products » Extension Springs » rz-147mx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-147MX Stainless steel Ø 2.2 x 15 x 54.4 mm / 270° Scaled prices - Extension Spring RZ-147MX Quantity Single price [EUR] 1 6.5600 EUR 2 4.1300 EUR 3 2.9300 EUR 7 2.5000 EUR 17 1.2300 EUR 37 0.9300 EUR 75 0.7600 EUR 125 0.7600 EUR 175 0.7600 EUR 250 0.7600 EUR 350 0.7600 EUR 450 0.7600 EUR Extension Spring Buy Product image Extension Spring RZ-147MX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-147MX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.2 mm Wire diameter D mm mean coil diameter De 15 mm outer coil diameter Dh 18.6 mm minimum bush diameter L0 54.4 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 36.85 mm length of unstressed spring body Ln 82.7 mm maximum spring length, inner loop to inner loop sn 28.3 mm Maximum spring deflection Fn 192.2 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 8.77 mm distance of inner edge of loop from the spring body R 6.206 N/mm Spring rate F0 16.6 N initial tension Fntol 17.74 N (+/-) tolerance of maximum spring force L0tol 1.1 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 22 degree (+/-) tolerance of loop position Weight 21.152 g weight of one spring Price group #ZK - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-147MX Stainless steel Ø 2.2 x 15 x 54.4 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-147MX Stainless steel Ø 2.2 x 15 x 54.4 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-147MX Stainless steel Ø 2.2 x 15 x 54.4 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-147MX Stainless steel Ø 2.2 x 15 x 54.4 mm / 270° force-path-calculation Extension Spring RZ-147MX Inquiry formular Extension Spring RZ-147MX Stainless steel Ø 2.2 x 15 x 54.4 mm / 270° Inquiry formular Extension Spring RZ-147MX Similar extension springs to Extension Spring RZ-147MX Stainless steel Ø 2.2 x 15 x 54.4 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-147MX 1.4310 2.2 15 54.4 192.2 82.7 28.3 6.206 100.0 | 100.0 | 100.0 | 100.0 Z-147MX EN 10270-1 2.2 15 54.4 229.9 83.35 28.95 7.225 92.1 | 100.0 | 90.7 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-115V-21X 15 62.5 0.649 1.4310 67.55 158.68 96.18 42.6 | 85.1 | 32.3 | 10.3 RZ-121GX 15.5 66 0.769 1.4310 78.31 160.23 94.23 43.9 | 84.0 | 35.4 | 12.2 RZ-115HX 15 43.3 0.848 1.4310 55.72 103.84 60.54 44.2 | 81.1 | 37.9 | 13.6 RZ-123X 14.1 59 1.186 1.4310 85.63 125.88 66.88 49.5 | 86.3 | 43.4 | 18.9 RZ-115V-20X 15 41.5 1.309 1.4310 67.55 89.16 47.66 49.9 | 81.5 | 47.3 | 20.9 RZ-115V-31X 12 57.5 1.379 1.4310 83.35 113.76 56.26 49.9 | 80.9 | 46.8 | 21.8 RZ-130K-21X 16 63 1.41 1.4310 105 131.9 68.9 52.5 | 87.3 | 47.9 | 22.4 RZ-121FX 15.5 43.5 1.553 1.4310 78.31 90.19 46.69 52.8 | 83.2 | 50.7 | 24.7 RZ-124F-02X 12.7 52 1.928 1.4310 94.45 97.5 45.5 56.9 | 84.3 | 55.7 | 30.6 RZ-126X 11.6 55 2.317 1.4310 102.6 95.91 40.91 60.4 | 83.0 | 61.3 | 36.9 RZ-130K-20X 16 45 2.516 1.4310 105 83.6 38.6 63.4 | 86.1 | 64.0 | 40.1 RZ-141FX 16 53 3.239 1.4310 139.7 92.56 39.56 72.7 | 94.0 | 72.1 | 52.0 RZ-143X 14.5 58.8 3.629 1.4310 153 97.31 38.51 76.1 | 93.4 | 76.5 | 58.5 RZ-142X 14.5 42.8 6.1 1.4310 153 65.71 22.91 89.1 | 88.8 | 80.3 | 98.3 RZ-147MX 15 54.4 6.206 1.4310 192.2 82.7 28.3 100.0 | 100.0 | 100.0 | 100.0 RZ-146X 12 54.8 7.089 1.4310 181.5 78.19 23.39 88.7 | 90.1 | 88.5 | 87.5 RZ-157X 18.5 54.1 7.101 1.4310 223.4 83.02 28.92 89.8 | 89.5 | 91.9 | 87.9 RZ-147LX 15 41.2 10.025 1.4310 192.2 58.72 17.52 78.3 | 91.9 | 81.0 | 61.9 RZ-160X 15 48.5 14.891 1.4310 269.8 65.05 16.55 66.3 | 92.4 | 64.9 | 41.7 RZ-162RX 14 61 24.306 1.4310 386.7 75.4 14.4 54.2 | 87.0 | 50.3 | 25.3 RZ-162QX 14 44.2 39.263 1.4310 386.7 53.12 8.92 46.9 | 84.4 | 40.6 | 15.7 RZ-177QX 18 56.9 50.481 1.4310 617.1 67.99 11.09 42.5 | 80.0 | 35.2 | 12.2 Number of similar metal springs: 21 Customs tariff number: 73202085; Extension Spring RZ-147MX Country of origin: DE, German; Extension Spring RZ-147MX Product image - Extension Springs RZ-147MX QR-Code: Extension Spring RZ-147MX
