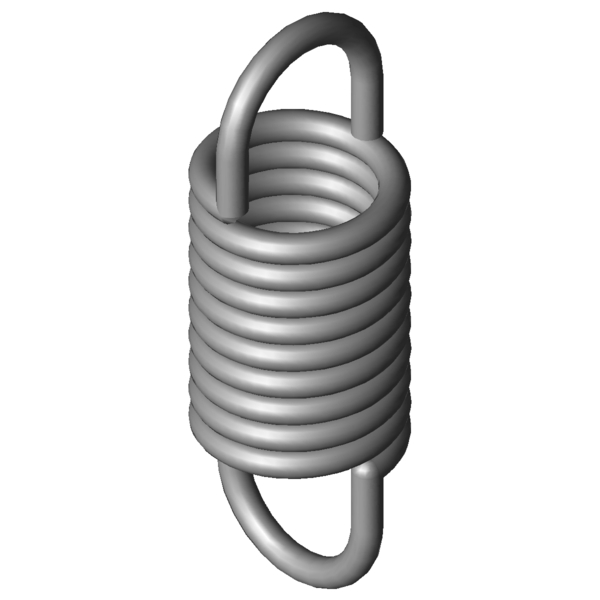

Home » Products » Extension Springs » rz-147lx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-147LX Stainless steel Ø 2.2 x 15 x 41.2 mm / 270° Scaled prices - Extension Spring RZ-147LX Quantity Single price [EUR] 1 6.4000 EUR 2 4.0300 EUR 3 2.8200 EUR 7 2.3500 EUR 17 1.1600 EUR 37 0.8500 EUR 75 0.6900 EUR 125 0.6900 EUR 175 0.6900 EUR 250 0.6900 EUR 350 0.6900 EUR 450 0.6900 EUR Extension Spring Buy Product image Extension Spring RZ-147LX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-147LX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.2 mm Wire diameter D mm mean coil diameter De 15 mm outer coil diameter Dh 18.6 mm minimum bush diameter L0 41.2 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 23.65 mm length of unstressed spring body Ln 58.72 mm maximum spring length, inner loop to inner loop sn 17.52 mm Maximum spring deflection Fn 192.2 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 8.77 mm distance of inner edge of loop from the spring body R 10.025 N/mm Spring rate F0 16.6 N initial tension Fntol 20.68 N (+/-) tolerance of maximum spring force L0tol 1.1 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 17 degree (+/-) tolerance of loop position Weight 13.8999 g weight of one spring Price group #ZJ - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-147LX Stainless steel Ø 2.2 x 15 x 41.2 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-147LX Stainless steel Ø 2.2 x 15 x 41.2 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-147LX Stainless steel Ø 2.2 x 15 x 41.2 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-147LX Stainless steel Ø 2.2 x 15 x 41.2 mm / 270° force-path-calculation Extension Spring RZ-147LX Inquiry formular Extension Spring RZ-147LX Stainless steel Ø 2.2 x 15 x 41.2 mm / 270° Inquiry formular Extension Spring RZ-147LX Similar extension springs to Extension Spring RZ-147LX Stainless steel Ø 2.2 x 15 x 41.2 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-147LX 1.4310 2.2 15 41.2 192.2 58.72 17.52 10.025 100.0 | 100.0 | 100.0 | 100.0 Z-147LX EN 10270-1 2.2 15 41.2 229.9 59.12 17.92 11.671 92.1 | 100.0 | 90.7 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-104X 13.7 34.2 0.942 1.4310 44.22 77.85 43.65 39.3 | 77.1 | 31.6 | 9.2 RZ-119X 17.6 43.8 1.191 1.4310 69.37 97.83 54.03 43.3 | 84.0 | 34.3 | 11.7 RZ-115E-10X 11.3 42.1 1.265 1.4310 59.25 85.3 43.2 41.9 | 77.4 | 35.7 | 12.5 RZ-115V-20X 15 41.5 1.309 1.4310 67.55 89.16 47.66 46.0 | 89.2 | 36.0 | 12.9 RZ-115GX 15 34.9 1.371 1.4310 55.72 72.38 37.48 44.7 | 82.8 | 37.9 | 13.6 RZ-121FX 15.5 43.5 1.553 1.4310 78.31 90.19 46.69 47.5 | 88.1 | 39.1 | 15.3 RZ-122X 14.1 38.2 2.499 1.4310 85.63 69.95 31.75 53.6 | 86.5 | 49.9 | 24.6 RZ-130K-20X 16 45 2.516 1.4310 105 83.6 38.6 54.6 | 89.0 | 50.0 | 24.8 RZ-115V-30X 12 36.5 2.782 1.4310 83.35 64.38 27.88 53.1 | 78.9 | 53.1 | 27.3 RZ-124F-01X 12.7 36 3.568 1.4310 94.45 60.6 24.6 58.9 | 81.6 | 60.2 | 35.0 RZ-141E-10X 16 41 5.233 1.4310 139.7 65.5 24.5 72.9 | 94.7 | 72.1 | 52.0 RZ-130MX 12 44 5.496 1.4310 137 66.94 22.94 71.1 | 85.2 | 73.8 | 54.4 RZ-142X 14.5 42.8 6.1 1.4310 153 65.71 22.91 77.8 | 94.6 | 78.0 | 60.9 RZ-147MX 15 54.4 6.206 1.4310 192.2 82.7 28.3 78.3 | 91.9 | 81.0 | 61.9 RZ-147LX 15 41.2 10.025 1.4310 192.2 58.72 17.52 100.0 | 100.0 | 100.0 | 100.0 RZ-145X 12 38.3 11.915 1.4310 181.5 52.22 13.92 86.3 | 88.0 | 86.9 | 84.1 RZ-160X 15 48.5 14.891 1.4310 269.8 65.05 16.55 80.4 | 91.0 | 82.9 | 67.3 RZ-147E-02X 10 41.6 18.538 1.4310 212 51.77 10.17 70.8 | 85.5 | 74.4 | 52.6 RZ-162QX 14 44.2 39.263 1.4310 386.7 53.12 8.92 54.7 | 88.4 | 50.3 | 25.3 Number of similar metal springs: 18 Customs tariff number: 73202085; Extension Spring RZ-147LX Country of origin: DE, German; Extension Spring RZ-147LX Product image - Extension Springs RZ-147LX QR-Code: Extension Spring RZ-147LX
