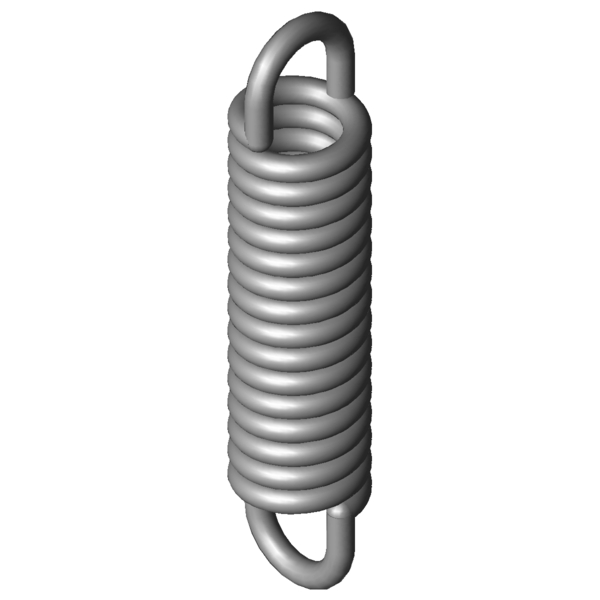

Home » Products » Extension Springs » rz-162rx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-162RX Stainless steel Ø 2.8 x 14 x 61 mm / 270° Scaled prices - Extension Spring RZ-162RX Quantity Single price [EUR] 1 7.0400 EUR 2 4.4400 EUR 3 3.4600 EUR 7 2.9500 EUR 17 2.9500 EUR 37 2.9500 EUR 75 2.9500 EUR 125 2.9500 EUR 175 2.9500 EUR 250 2.9500 EUR 350 2.9500 EUR 450 2.9500 EUR Extension Spring Buy Product image Extension Spring RZ-162RX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-162RX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.8 mm Wire diameter D mm mean coil diameter De 14 mm outer coil diameter Dh 18.6 mm minimum bush diameter L0 61 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 46.9 mm length of unstressed spring body Ln 75.4 mm maximum spring length, inner loop to inner loop sn 14.4 mm Maximum spring deflection Fn 386.7 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 7.05 mm distance of inner edge of loop from the spring body R 24.306 N/mm Spring rate F0 36.8 N initial tension Fntol 55.8 N (+/-) tolerance of maximum spring force L0tol 1.1 mm (+/-) tolerance of unstressed length Detol 0.4 mm (+/-) tolerance of outer coil diameter Oesttol 21 degree (+/-) tolerance of loop position Weight 29.9799 g weight of one spring Price group ###ZN - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-162RX Stainless steel Ø 2.8 x 14 x 61 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-162RX Stainless steel Ø 2.8 x 14 x 61 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-162RX Stainless steel Ø 2.8 x 14 x 61 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-162RX Stainless steel Ø 2.8 x 14 x 61 mm / 270° force-path-calculation Extension Spring RZ-162RX Inquiry formular Extension Spring RZ-162RX Stainless steel Ø 2.8 x 14 x 61 mm / 270° Inquiry formular Extension Spring RZ-162RX Similar extension springs to Extension Spring RZ-162RX Stainless steel Ø 2.8 x 14 x 61 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-162RX 1.4310 2.8 14 61 386.7 75.4 14.4 24.306 100.0 | 100.0 | 100.0 | 100.0 Z-162RX EN 10270-1 2.8 14 61 466.9 75.87 14.87 28.299 91.8 | 100.0 | 89.8 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-115E-11X 11.3 59 0.763 1.4310 59.25 130.6 71.6 31.8 | 74.6 | 17.7 | 3.1 RZ-121GX 15.5 66 0.769 1.4310 78.31 160.23 94.23 33.6 | 80.0 | 17.8 | 3.1 RZ-115V-32X 12 66.5 1.134 1.4310 83.35 134.93 68.43 34.3 | 77.0 | 21.3 | 4.5 RZ-123X 14.1 59 1.186 1.4310 85.63 125.88 66.88 37.0 | 84.4 | 21.8 | 4.8 RZ-124FX 12.7 68 1.321 1.4310 94.45 134.47 66.47 35.8 | 79.2 | 23.0 | 5.3 RZ-115V-31X 12 57.5 1.379 1.4310 83.35 113.76 56.26 35.6 | 77.8 | 23.6 | 5.5 RZ-130K-21X 16 63 1.41 1.4310 105 131.9 68.9 37.5 | 82.9 | 24.0 | 5.7 RZ-124F-02X 12.7 52 1.928 1.4310 94.45 97.5 45.5 37.8 | 77.7 | 28.0 | 7.7 RZ-126X 11.6 55 2.317 1.4310 102.6 95.91 40.91 39.0 | 76.7 | 30.9 | 9.3 RZ-130NX 12 60.2 3.497 1.4310 137 96.24 36.04 44.9 | 82.9 | 37.7 | 14.2 RZ-143X 14.5 58.8 3.629 1.4310 153 97.31 38.51 47.1 | 88.1 | 38.5 | 14.8 RZ-146AX 12 66.8 5.437 1.4310 181.5 97.3 30.5 50.7 | 82.8 | 47.1 | 22.2 RZ-147MX 15 54.4 6.206 1.4310 192.2 82.7 28.3 54.2 | 87.0 | 50.3 | 25.3 RZ-146X 12 54.8 7.089 1.4310 181.5 78.19 23.39 55.2 | 82.3 | 54.3 | 28.9 RZ-162RX 14 61 24.306 1.4310 386.7 75.4 14.4 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 14 Customs tariff number: 73202085; Extension Spring RZ-162RX Country of origin: DE, German; Extension Spring RZ-162RX Product image - Extension Springs RZ-162RX QR-Code: Extension Spring RZ-162RX
