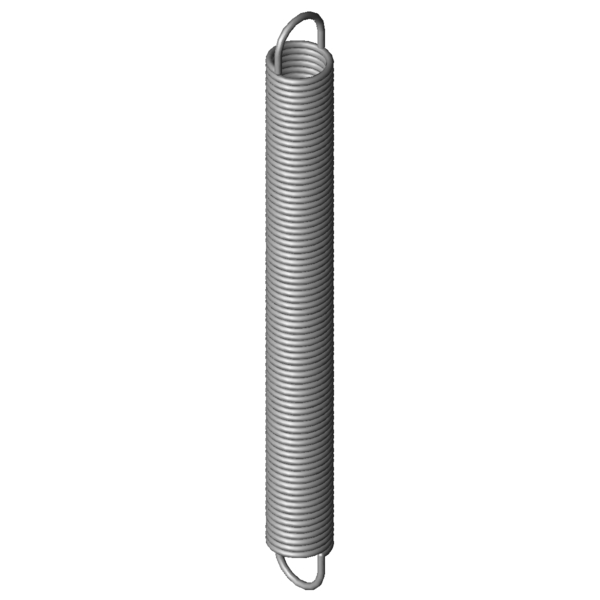

Home » Products » Extension Springs » rz-141ex Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-141EX Stainless steel Ø 2 x 18 x 180 mm / 270° Scaled prices - Extension Spring RZ-141EX Quantity Single price [EUR] 1 7.5200 EUR 2 4.7400 EUR 3 3.7800 EUR 7 3.2200 EUR 17 1.9500 EUR 37 1.5600 EUR 75 1.4700 EUR 125 1.4700 EUR 175 1.4700 EUR 250 1.4700 EUR 350 1.4700 EUR 450 1.4700 EUR Extension Spring Buy Product image Extension Spring RZ-141EX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-141EX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 18 mm outer coil diameter Dh 21.3 mm minimum bush diameter L0 180 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 157.5 mm length of unstressed spring body Ln 443.23 mm maximum spring length, inner loop to inner loop sn 263.23 mm Maximum spring deflection Fn 125.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 11.25 mm distance of inner edge of loop from the spring body R 0.44 N/mm Spring rate F0 9.441 N initial tension Fntol 7.03 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 51 degree (+/-) tolerance of loop position Weight 99.2671 g weight of one spring Price group #ZQ - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-141EX Stainless steel Ø 2 x 18 x 180 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-141EX Stainless steel Ø 2 x 18 x 180 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-141EX Stainless steel Ø 2 x 18 x 180 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-141EX Stainless steel Ø 2 x 18 x 180 mm / 270° force-path-calculation Extension Spring RZ-141EX Inquiry formular Extension Spring RZ-141EX Stainless steel Ø 2 x 18 x 180 mm / 270° Inquiry formular Extension Spring RZ-141EX Similar extension springs to Extension Spring RZ-141EX Stainless steel Ø 2 x 18 x 180 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-141EX 1.4310 2 18 180 125.1 443.23 263.23 0.44 100.0 | 100.0 | 100.0 | 100.0 Z-141EX EN 10270-1 2 18 180 149.2 448.6 268.6 0.512 92.2 | 100.0 | 90.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-121EX 17.6 149 0.18 1.4310 69.37 506.53 357.53 64.1 | 86.9 | 64.5 | 40.8 RZ-130K-02X 20 170 0.193 1.4310 84.95 580.6 410.6 67.0 | 91.5 | 66.0 | 43.5 RZ-130K-06X 16 159 0.423 1.4310 105 388.36 229.36 90.3 | 89.1 | 85.5 | 96.3 RZ-141EX 18 180 0.44 1.4310 125.1 443.23 263.23 100.0 | 100.0 | 100.0 | 100.0 RZ-138AX 18.6 160 0.459 1.4310 121.3 406 246 95.6 | 95.2 | 95.2 | 96.4 RZ-141DX 18 164 0.49 1.4310 125.1 400.15 236.15 93.9 | 97.0 | 94.9 | 89.7 RZ-138X 18.6 147 0.504 1.4310 121.3 370.88 223.88 90.5 | 92.8 | 91.0 | 87.7 RZ-141CX 18 148 0.554 1.4310 125.1 357.06 209.06 87.7 | 94.1 | 89.7 | 79.4 RZ-141KX 16 189 0.609 1.4310 139.7 399.38 210.38 83.7 | 94.7 | 84.7 | 71.6 RZ-156MX 20 203.5 0.901 1.4310 207.8 416.34 212.84 68.5 | 86.2 | 70.5 | 48.7 RZ-144EX 14.5 174 0.922 1.4310 153 325.31 151.31 69.7 | 92.4 | 69.6 | 47.0 RZ-156LX 20 191 0.97 1.4310 207.8 388.8 197.8 67.0 | 88.1 | 67.7 | 45.2 RZ-159EX 18.5 219 1.073 1.4310 223.4 410.38 191.38 63.9 | 86.5 | 64.4 | 40.7 RZ-156KX 20 163.5 1.165 1.4310 207.8 328.21 164.71 62.0 | 86.9 | 61.4 | 37.7 RZ-159DX 18.5 199 1.196 1.4310 223.4 370.69 171.69 62.1 | 89.2 | 60.6 | 36.5 RZ-159CX 18.5 179 1.351 1.4310 223.4 331 152 60.5 | 92.2 | 56.9 | 32.3 RZ-159BX 18.5 159 1.552 1.4310 223.4 291.31 132.31 56.6 | 88.5 | 53.1 | 28.1 RZ-162P-01X 20 202 1.684 1.4310 282.9 356.93 154.93 53.7 | 83.5 | 51.5 | 26.0 RZ-162PX 20 194 1.769 1.4310 282.9 341.53 147.53 53.2 | 84.7 | 50.1 | 24.8 Number of similar metal springs: 18 Customs tariff number: 73202085; Extension Spring RZ-141EX Country of origin: DE, German; Extension Spring RZ-141EX Product image - Extension Springs RZ-141EX QR-Code: Extension Spring RZ-141EX
