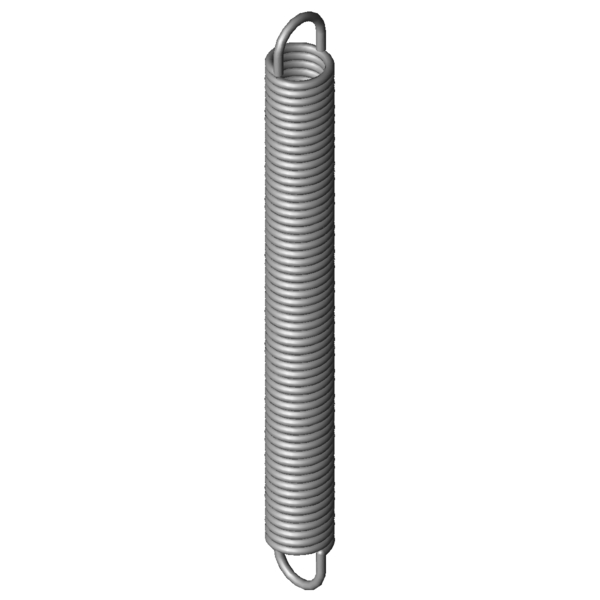

Home » Products » Extension Springs » rz-162px Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-162PX Stainless steel Ø 2.8 x 20 x 194 mm / 270° Scaled prices - Extension Spring RZ-162PX Quantity Single price [EUR] 1 8.0100 EUR 2 5.0500 EUR 3 4.1300 EUR 7 3.5200 EUR 17 3.5200 EUR 37 3.5200 EUR 75 3.5200 EUR 125 3.5200 EUR 175 3.5200 EUR 250 3.5200 EUR 350 3.5200 EUR 450 3.5200 EUR Extension Spring Buy Product image Extension Spring RZ-162PX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-162PX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.8 mm Wire diameter D mm mean coil diameter De 20 mm outer coil diameter Dh 24.6 mm minimum bush diameter L0 194 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 170.1 mm length of unstressed spring body Ln 341.53 mm maximum spring length, inner loop to inner loop sn 147.53 mm Maximum spring deflection Fn 282.9 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 11.98 mm distance of inner edge of loop from the spring body R 1.769 N/mm Spring rate F0 22 N initial tension Fntol 19.09 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 43 degree (+/-) tolerance of loop position Weight 161.7998 g weight of one spring Price group ###ZT - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-162PX Stainless steel Ø 2.8 x 20 x 194 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-162PX Stainless steel Ø 2.8 x 20 x 194 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-162PX Stainless steel Ø 2.8 x 20 x 194 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-162PX Stainless steel Ø 2.8 x 20 x 194 mm / 270° force-path-calculation Extension Spring RZ-162PX Inquiry formular Extension Spring RZ-162PX Stainless steel Ø 2.8 x 20 x 194 mm / 270° Inquiry formular Extension Spring RZ-162PX Similar extension springs to Extension Spring RZ-162PX Stainless steel Ø 2.8 x 20 x 194 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-162PX 1.4310 2.8 20 194 282.9 341.53 147.53 1.769 100.0 | 100.0 | 100.0 | 100.0 Z-162PX EN 10270-1 2.8 20 194 341.5 346.4 152.4 2.06 91.8 | 100.0 | 89.8 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-138AX 18.6 160 0.459 1.4310 121.3 406 246 53.1 | 82.3 | 51.4 | 25.7 RZ-141KX 16 189 0.609 1.4310 139.7 399.38 210.38 59.1 | 83.0 | 59.8 | 34.6 RZ-156DX 22.5 205 0.613 1.4310 186.1 486.03 281.03 61.5 | 90.9 | 59.1 | 34.5 RZ-147K-04X 20 156 0.619 1.4310 147.2 375.04 219.04 60.4 | 86.3 | 59.7 | 35.0 RZ-156CX 22.5 185 0.692 1.4310 186.1 433.79 248.79 64.2 | 91.2 | 62.5 | 39.0 RZ-156NX 20 211 0.865 1.4310 207.8 432.87 221.87 70.9 | 93.7 | 70.0 | 48.8 RZ-156MX 20 203.5 0.901 1.4310 207.8 416.34 212.84 72.4 | 94.9 | 71.4 | 50.9 RZ-156LX 20 191 0.97 1.4310 207.8 388.8 197.8 74.9 | 95.9 | 74.0 | 54.8 RZ-159EX 18.5 219 1.073 1.4310 223.4 410.38 191.38 76.3 | 90.1 | 78.0 | 60.9 RZ-156KX 20 163.5 1.165 1.4310 207.8 328.21 164.71 79.5 | 91.2 | 81.5 | 65.8 RZ-159DX 18.5 199 1.196 1.4310 223.4 370.69 171.69 81.1 | 93.1 | 82.4 | 67.9 RZ-159CX 18.5 179 1.351 1.4310 223.4 331 152 85.3 | 91.4 | 88.0 | 76.6 RZ-162U-34X 24 193 1.424 1.4310 287.9 379.79 186.79 87.0 | 92.1 | 88.6 | 80.4 RZ-162P-01X 20 202 1.684 1.4310 282.9 356.93 154.93 97.2 | 98.7 | 97.6 | 95.2 RZ-162PX 20 194 1.769 1.4310 282.9 341.53 147.53 100.0 | 100.0 | 100.0 | 100.0 RZ-162O-02X 20 171 2.042 1.4310 282.9 298.77 127.77 92.0 | 96.0 | 93.3 | 86.6 RZ-174BX 23.2 202 2.134 1.4310 356.7 357.79 155.79 86.9 | 89.9 | 87.0 | 83.8 RZ-174AX 23.2 180 2.453 1.4310 356.7 315.5 135.5 82.4 | 88.8 | 85.6 | 72.8 RZ-162O-01X 20 146 2.472 1.4310 282.9 251.55 105.55 83.0 | 91.8 | 85.8 | 71.5 RZ-162U-45X 18 207.5 3.401 1.4310 373.9 307.16 99.66 71.7 | 92.3 | 71.6 | 51.1 RZ-177CX 19.2 221 3.628 1.4310 422.9 327.56 106.56 69.4 | 90.4 | 69.6 | 48.3 RZ-162U-44X 18 183.5 3.907 1.4310 373.9 270.25 86.75 68.1 | 92.6 | 67.2 | 44.5 RZ-177BX 19.2 196 4.167 1.4310 422.9 288.76 92.76 67.0 | 94.2 | 64.9 | 42.1 RZ-177AX 19.2 174 4.791 1.4310 422.9 254.68 80.68 62.8 | 91.1 | 60.8 | 36.6 RZ-204X 24 193 6.871 1.4310 643.3 278.63 85.63 53.6 | 84.3 | 51.0 | 25.5 RZ-177TX 18 165 12.382 1.4310 617.1 210.21 45.21 45.5 | 84.3 | 38.2 | 14.0 Number of similar metal springs: 25 Customs tariff number: 73202085; Extension Spring RZ-162PX Country of origin: DE, German; Extension Spring RZ-162PX Product image - Extension Springs RZ-162PX QR-Code: Extension Spring RZ-162PX
