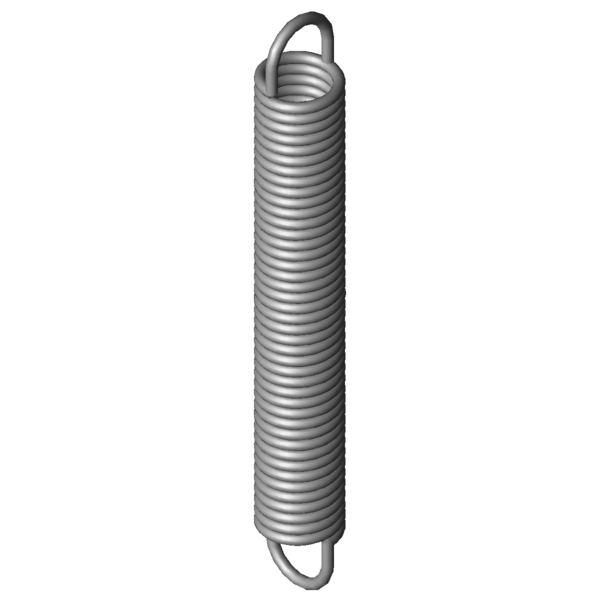

Home » Products » Extension Springs » rz-162o-01x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-162O-01X Stainless steel Ø 2.8 x 20 x 146 mm / 270° Scaled prices - Extension Spring RZ-162O-01X Quantity Single price [EUR] 1 7.5200 EUR 2 4.7400 EUR 3 3.7800 EUR 7 3.2200 EUR 17 3.2200 EUR 37 3.2200 EUR 75 3.2200 EUR 125 3.2200 EUR 175 3.2200 EUR 250 3.2200 EUR 350 3.2200 EUR 450 3.2200 EUR Extension Spring Buy Product image Extension Spring RZ-162O-01X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-162O-01X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.8 mm Wire diameter D mm mean coil diameter De 20 mm outer coil diameter Dh 24.6 mm minimum bush diameter L0 146 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 122.5 mm length of unstressed spring body Ln 251.55 mm maximum spring length, inner loop to inner loop sn 105.55 mm Maximum spring deflection Fn 282.9 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 11.75 mm distance of inner edge of loop from the spring body R 2.472 N/mm Spring rate F0 22 N initial tension Fntol 19.9 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 36 degree (+/-) tolerance of loop position Weight 117.0746 g weight of one spring Price group ###ZQ - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-162O-01X Stainless steel Ø 2.8 x 20 x 146 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-162O-01X Stainless steel Ø 2.8 x 20 x 146 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-162O-01X Stainless steel Ø 2.8 x 20 x 146 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-162O-01X Stainless steel Ø 2.8 x 20 x 146 mm / 270° force-path-calculation Extension Spring RZ-162O-01X Inquiry formular Extension Spring RZ-162O-01X Stainless steel Ø 2.8 x 20 x 146 mm / 270° Inquiry formular Extension Spring RZ-162O-01X Similar extension springs to Extension Spring RZ-162O-01X Stainless steel Ø 2.8 x 20 x 146 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-162O-01X 1.4310 2.8 20 146 282.9 251.55 105.55 2.472 100.0 | 100.0 | 100.0 | 100.0 Z-162O-01X EN 10270-1 2.8 20 146 341.5 255.1 109.1 2.879 91.8 | 100.0 | 89.8 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-138AX 18.6 160 0.459 1.4310 121.3 406 246 48.8 | 85.2 | 42.9 | 18.4 RZ-141DX 18 164 0.49 1.4310 125.1 400.15 236.15 49.2 | 83.5 | 44.5 | 19.8 RZ-138X 18.6 147 0.504 1.4310 121.3 370.88 223.88 51.0 | 87.9 | 45.0 | 20.2 RZ-141CX 18 148 0.554 1.4310 125.1 357.06 209.06 52.1 | 86.7 | 47.4 | 22.3 RZ-147K-04X 20 156 0.619 1.4310 147.2 375.04 219.04 55.3 | 90.7 | 50.1 | 25.1 RZ-141BX 18 132 0.636 1.4310 125.1 313.9 181.9 53.6 | 83.9 | 51.1 | 25.7 RZ-147K-03X 20 134 0.746 1.4310 147.2 315.76 181.76 58.5 | 90.1 | 55.1 | 30.2 RZ-156AX 22.5 148 0.914 1.4310 186.1 336.36 188.36 63.3 | 92.3 | 60.9 | 36.9 RZ-156KX 20 163.5 1.165 1.4310 207.8 328.21 164.71 69.6 | 92.9 | 68.8 | 47.1 RZ-159BX 18.5 159 1.552 1.4310 223.4 291.31 132.31 77.9 | 91.2 | 79.4 | 63.0 RZ-156JX 20 123.5 1.646 1.4310 207.8 240.07 116.57 79.9 | 91.3 | 82.0 | 66.5 RZ-159AX 18.5 141 1.785 1.4310 223.4 256.08 115.08 83.5 | 92.8 | 85.3 | 72.4 RZ-162O-02X 20 171 2.042 1.4310 282.9 298.77 127.77 89.7 | 95.1 | 91.3 | 82.6 RZ-159X 18.5 124 2.099 1.4310 223.4 221.85 97.85 86.6 | 88.9 | 85.8 | 85.2 RZ-162O-01X 20 146 2.472 1.4310 282.9 251.55 105.55 100.0 | 100.0 | 100.0 | 100.0 RZ-162OX 20 138 2.659 1.4310 282.9 236.15 98.15 95.9 | 98.2 | 96.5 | 93.0 RZ-162U-43X 18 162.5 4.492 1.4310 373.9 237.95 75.45 72.9 | 91.1 | 73.6 | 54.1 RZ-162U-42X 18 144.5 5.153 1.4310 373.9 210.27 65.77 70.1 | 94.1 | 69.0 | 47.1 RZ-177X 19.2 151 5.635 1.4310 422.9 219.6 68.6 67.6 | 93.4 | 65.9 | 43.5 RZ-177TX 18 165 12.382 1.4310 617.1 210.21 45.21 49.8 | 85.4 | 44.3 | 19.6 Number of similar metal springs: 19 Customs tariff number: 73202085; Extension Spring RZ-162O-01X Country of origin: DE, German; Extension Spring RZ-162O-01X Product image - Extension Springs RZ-162O-01X QR-Code: Extension Spring RZ-162O-01X
