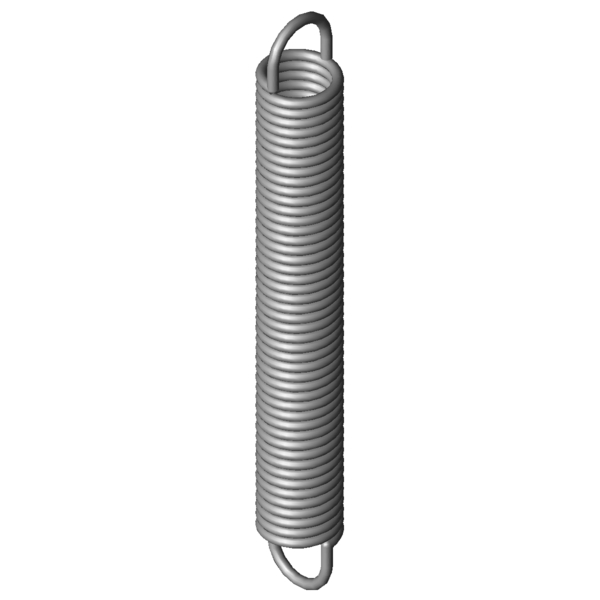

Home » Products » Extension Springs » rz-159ax Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-159AX Stainless steel Ø 2.5 x 18.5 x 141 mm / 270° Scaled prices - Extension Spring RZ-159AX Quantity Single price [EUR] 1 7.1700 EUR 2 4.5200 EUR 3 3.5600 EUR 7 3.0400 EUR 17 1.6000 EUR 37 1.2900 EUR 75 1.1600 EUR 125 1.1600 EUR 175 1.1600 EUR 250 1.1600 EUR 350 1.1600 EUR 450 1.1600 EUR Extension Spring Buy Product image Extension Spring RZ-159AX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-159AX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.5 mm Wire diameter D mm mean coil diameter De 18.5 mm outer coil diameter Dh 22.6 mm minimum bush diameter L0 141 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 119.38 mm length of unstressed spring body Ln 256.08 mm maximum spring length, inner loop to inner loop sn 115.08 mm Maximum spring deflection Fn 223.4 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 10.81 mm distance of inner edge of loop from the spring body R 1.785 N/mm Spring rate F0 18 N initial tension Fntol 15.05 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 38 degree (+/-) tolerance of loop position Weight 94.6276 g weight of one spring Price group #ZO - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-159AX Stainless steel Ø 2.5 x 18.5 x 141 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-159AX Stainless steel Ø 2.5 x 18.5 x 141 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-159AX Stainless steel Ø 2.5 x 18.5 x 141 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-159AX Stainless steel Ø 2.5 x 18.5 x 141 mm / 270° force-path-calculation Extension Spring RZ-159AX Inquiry formular Extension Spring RZ-159AX Stainless steel Ø 2.5 x 18.5 x 141 mm / 270° Inquiry formular Extension Spring RZ-159AX Similar extension springs to Extension Spring RZ-159AX Stainless steel Ø 2.5 x 18.5 x 141 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-159AX 1.4310 2.5 18.5 141 223.4 256.08 115.08 1.785 100.0 | 100.0 | 100.0 | 100.0 Z-159AX EN 10270-1 2.5 18.5 141 268.6 259.39 118.39 2.078 91.9 | 100.0 | 90.2 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-121NX 15.5 133 0.306 1.4310 78.31 369.84 236.84 46.5 | 80.7 | 41.8 | 17.0 RZ-136BX 22 138 0.326 1.4310 103.4 433.79 295.79 49.3 | 87.3 | 42.6 | 18.0 RZ-138AX 18.6 160 0.459 1.4310 121.3 406 246 55.0 | 89.2 | 50.5 | 25.4 RZ-141DX 18 164 0.49 1.4310 125.1 400.15 236.15 55.8 | 87.8 | 52.4 | 27.3 RZ-138X 18.6 147 0.504 1.4310 121.3 370.88 223.88 57.5 | 91.8 | 52.8 | 27.9 RZ-130K-05X 16 134 0.52 1.4310 105 320.97 186.97 55.9 | 84.5 | 54.3 | 28.9 RZ-141CX 18 148 0.554 1.4310 125.1 357.06 209.06 59.1 | 90.9 | 55.5 | 30.8 RZ-147K-04X 20 156 0.619 1.4310 147.2 375.04 219.04 61.4 | 90.3 | 59.2 | 34.6 RZ-141BX 18 132 0.636 1.4310 125.1 313.9 181.9 61.8 | 90.3 | 59.6 | 35.4 RZ-141AX 18 118 0.731 1.4310 125.1 276.28 158.28 64.0 | 87.0 | 64.4 | 40.7 RZ-147K-03X 20 134 0.746 1.4310 147.2 315.76 181.76 66.1 | 91.8 | 64.6 | 41.7 RZ-144CX 14.5 142 1.161 1.4310 153 262.41 120.41 77.8 | 85.9 | 82.0 | 65.5 RZ-159BX 18.5 159 1.552 1.4310 223.4 291.31 132.31 92.2 | 96.2 | 93.5 | 87.0 RZ-156JX 20 123.5 1.646 1.4310 207.8 240.07 116.57 93.7 | 93.4 | 95.9 | 91.8 RZ-159AX 18.5 141 1.785 1.4310 223.4 256.08 115.08 100.0 | 100.0 | 100.0 | 100.0 RZ-159X 18.5 124 2.099 1.4310 223.4 221.85 97.85 91.2 | 96.0 | 92.5 | 85.0 RZ-162O-01X 20 146 2.472 1.4310 282.9 251.55 105.55 83.5 | 92.8 | 85.3 | 72.4 RZ-162OX 20 138 2.659 1.4310 282.9 236.15 98.15 80.9 | 93.2 | 82.1 | 67.4 RZ-162AX 15 136 3.743 1.4310 269.8 201.83 65.83 70.0 | 92.5 | 70.0 | 47.4 RZ-162U-43X 18 162.5 4.492 1.4310 373.9 237.95 75.45 63.7 | 89.1 | 62.7 | 39.2 RZ-162U-42X 18 144.5 5.153 1.4310 373.9 210.27 65.77 61.8 | 92.7 | 58.5 | 34.1 RZ-177X 19.2 151 5.635 1.4310 422.9 219.6 68.6 59.0 | 89.3 | 56.2 | 31.5 RZ-162U-41X 18 123.5 6.222 1.4310 373.9 177.97 54.47 57.1 | 89.4 | 53.5 | 28.3 RZ-177TX 18 165 12.382 1.4310 617.1 210.21 45.21 45.3 | 84.1 | 37.7 | 14.2 Number of similar metal springs: 23 Customs tariff number: 73202085; Extension Spring RZ-159AX Country of origin: DE, German; Extension Spring RZ-159AX Product image - Extension Springs RZ-159AX QR-Code: Extension Spring RZ-159AX
