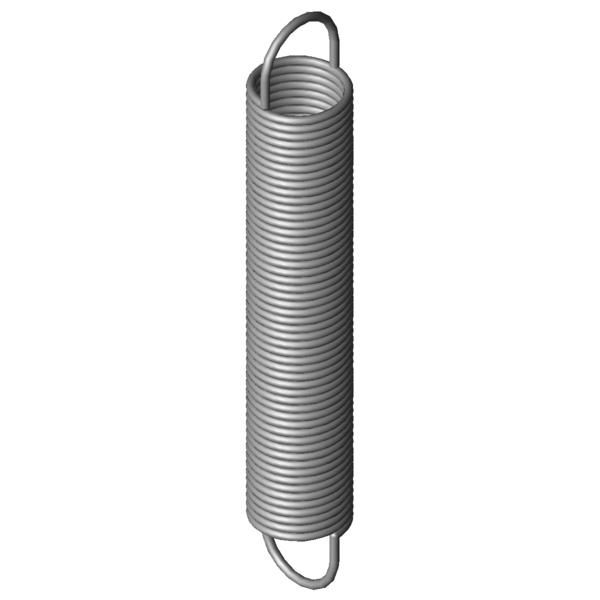

Home » Products » Extension Springs » rz-136bx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-136BX Stainless steel Ø 2 x 22 x 138 mm / 270° Scaled prices - Extension Spring RZ-136BX Quantity Single price [EUR] 1 7.1700 EUR 2 4.5200 EUR 3 3.5600 EUR 7 3.0400 EUR 17 1.6000 EUR 37 1.2900 EUR 75 1.1600 EUR 125 1.0882 EUR 175 1.0680 EUR 250 1.0487 EUR 350 1.0339 EUR 450 0.9731 EUR Extension Spring Buy Product image Extension Spring RZ-136BX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-136BX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 22 mm outer coil diameter Dh 25.5 mm minimum bush diameter L0 138 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 109.5 mm length of unstressed spring body Ln 433.79 mm maximum spring length, inner loop to inner loop sn 295.79 mm Maximum spring deflection Fn 103.4 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 14.25 mm distance of inner edge of loop from the spring body R 0.326 N/mm Spring rate F0 7.101 N initial tension Fntol 5.75 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.45 mm (+/-) tolerance of outer coil diameter Oesttol 47 degree (+/-) tolerance of loop position Weight 86.6246 g weight of one spring Price group ZO - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-136BX Stainless steel Ø 2 x 22 x 138 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-136BX Stainless steel Ø 2 x 22 x 138 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-136BX Stainless steel Ø 2 x 22 x 138 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-136BX Stainless steel Ø 2 x 22 x 138 mm / 270° force-path-calculation Extension Spring RZ-136BX Inquiry formular Extension Spring RZ-136BX Stainless steel Ø 2 x 22 x 138 mm / 270° Inquiry formular Extension Spring RZ-136BX Similar extension springs to Extension Spring RZ-136BX Stainless steel Ø 2 x 22 x 138 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-136BX 1.4310 2 22 138 103.4 433.79 295.79 0.326 100.0 | 100.0 | 100.0 | 100.0 Z-136BX EN 10270-1 2 22 138 123.3 439.94 301.94 0.379 92.2 | 100.0 | 90.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-115V-17X 20 133 0.1 1.4310 51.22 611.7 478.7 57.9 | 87.4 | 55.7 | 30.6 RZ-115V-16X 20 121 0.113 1.4310 51.22 544.8 423.8 59.6 | 84.5 | 59.7 | 34.6 RZ-118AX 21.6 117 0.133 1.4310 56.93 519.83 402.83 64.1 | 87.7 | 64.2 | 40.4 RZ-130E-14X 24 143.5 0.141 1.4310 73.5 640.3 496.8 66.7 | 92.6 | 65.3 | 42.3 RZ-121DX 17.6 136 0.201 1.4310 69.37 456.74 320.74 75.9 | 86.2 | 79.7 | 61.9 RZ-130K-01X 20 145 0.235 1.4310 84.95 482.6 337.6 83.0 | 92.0 | 84.9 | 72.0 RZ-136DX 22 170 0.251 1.4310 103.4 553.84 383.84 86.4 | 93.7 | 88.5 | 77.1 RZ-130KX 20 136 0.255 1.4310 84.95 447.53 311.53 86.6 | 93.2 | 88.6 | 78.0 RZ-136CX 22 154 0.283 1.4310 103.4 494.3 340.3 92.3 | 96.5 | 93.5 | 86.9 RZ-136BX 22 138 0.326 1.4310 103.4 433.79 295.79 100.0 | 100.0 | 100.0 | 100.0 RZ-136AX 22 124 0.374 1.4310 103.4 381.27 257.27 92.4 | 96.6 | 93.5 | 87.0 RZ-136X 22 110 0.44 1.4310 103.4 328.75 218.75 84.7 | 93.2 | 87.0 | 74.0 RZ-147JX 24 122 0.498 1.4310 123.7 354.87 232.87 79.1 | 90.3 | 81.2 | 65.8 RZ-138X 18.6 147 0.504 1.4310 121.3 370.88 223.88 79.3 | 92.8 | 80.5 | 64.5 RZ-147K-04X 20 156 0.619 1.4310 147.2 375.04 219.04 71.4 | 90.1 | 72.1 | 52.0 RZ-141BX 18 132 0.636 1.4310 125.1 313.9 181.9 71.8 | 92.5 | 72.1 | 50.8 RZ-147K-03X 20 134 0.746 1.4310 147.2 315.76 181.76 67.3 | 93.0 | 65.8 | 43.2 RZ-156BX 22.5 165 0.795 1.4310 186.1 381.56 216.56 64.1 | 87.1 | 64.4 | 40.7 RZ-156AX 22.5 148 0.914 1.4310 186.1 336.36 188.36 61.8 | 90.3 | 59.6 | 35.4 RZ-156X 22.5 130 1.075 1.4310 186.1 290.15 160.15 58.5 | 90.7 | 54.9 | 30.1 RZ-162K-01X 25 143 1.269 1.4310 229.9 310.64 167.64 53.9 | 85.3 | 50.8 | 25.5 RZ-156JX 20 123.5 1.646 1.4310 207.8 240.07 116.57 50.3 | 86.8 | 44.6 | 19.6 RZ-159AX 18.5 141 1.785 1.4310 223.4 256.08 115.08 49.3 | 87.3 | 42.6 | 18.0 RZ-162U-32X 24 154 1.878 1.4310 287.9 295.61 141.61 47.2 | 82.6 | 41.9 | 17.2 RZ-162U-31X 24 133 2.268 1.4310 287.9 250.28 117.28 45.6 | 84.9 | 37.8 | 14.2 Number of similar metal springs: 24 Customs tariff number: 73202085; Extension Spring RZ-136BX Country of origin: DE, German; Extension Spring RZ-136BX Product image - Extension Springs RZ-136BX QR-Code: Extension Spring RZ-136BX
