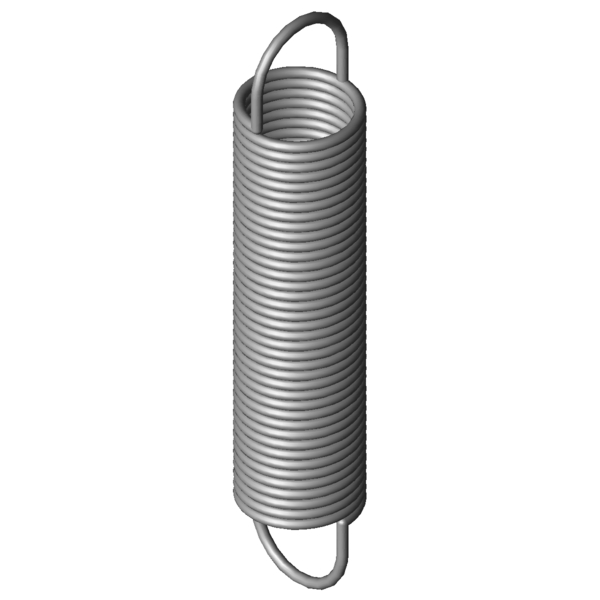

Home » Products » Extension Springs » rz-136x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-136X Stainless steel Ø 2 x 22 x 110 mm / 270° Scaled prices - Extension Spring RZ-136X Quantity Single price [EUR] 1 7.0400 EUR 2 4.4400 EUR 3 3.4600 EUR 7 2.9500 EUR 17 1.5300 EUR 37 1.2300 EUR 75 1.0500 EUR 125 0.9748 EUR 175 0.9607 EUR 250 0.9427 EUR 350 0.8977 EUR 450 0.8721 EUR Extension Spring Buy Product image Extension Spring RZ-136X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-136X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 22 mm outer coil diameter Dh 25.5 mm minimum bush diameter L0 110 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 81.5 mm length of unstressed spring body Ln 328.75 mm maximum spring length, inner loop to inner loop sn 218.75 mm Maximum spring deflection Fn 103.4 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 14.25 mm distance of inner edge of loop from the spring body R 0.44 N/mm Spring rate F0 7.101 N initial tension Fntol 5.99 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.45 mm (+/-) tolerance of outer coil diameter Oesttol 41 degree (+/-) tolerance of loop position Weight 64.7734 g weight of one spring Price group ZN - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-136X Stainless steel Ø 2 x 22 x 110 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-136X Stainless steel Ø 2 x 22 x 110 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-136X Stainless steel Ø 2 x 22 x 110 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-136X Stainless steel Ø 2 x 22 x 110 mm / 270° force-path-calculation Extension Spring RZ-136X Inquiry formular Extension Spring RZ-136X Stainless steel Ø 2 x 22 x 110 mm / 270° Inquiry formular Extension Spring RZ-136X Similar extension springs to Extension Spring RZ-136X Stainless steel Ø 2 x 22 x 110 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-136X 1.4310 2 22 110 103.4 328.75 218.75 0.44 100.0 | 100.0 | 100.0 | 100.0 Z-136X EN 10270-1 2 22 110 123.3 333.3 223.3 0.513 92.2 | 100.0 | 90.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-115F-14X 20 114.5 0.087 1.4310 44.2 597.2 482.7 49.7 | 85.7 | 44.0 | 19.4 RZ-115V-16X 20 121 0.113 1.4310 51.22 544.8 423.8 53.9 | 85.6 | 50.6 | 25.6 RZ-115V-15X 20 109 0.13 1.4310 51.22 477.89 368.89 57.4 | 88.3 | 54.4 | 29.4 RZ-118AX 21.6 117 0.133 1.4310 56.93 519.83 402.83 58.4 | 90.7 | 54.7 | 29.9 RZ-115V-14X 20 99 0.15 1.4310 51.22 419.85 320.85 59.3 | 85.3 | 58.9 | 33.8 RZ-118X 21.6 95 0.18 1.4310 56.93 392.91 297.91 64.3 | 88.2 | 64.2 | 40.4 RZ-130E-13X 24 107.5 0.211 1.4310 73.5 438 330.5 69.6 | 93.1 | 68.6 | 47.0 RZ-117AX 21.6 85 0.212 1.4310 56.93 337.94 252.94 67.8 | 85.2 | 70.8 | 47.6 RZ-121BX 17.6 111 0.26 1.4310 69.37 358.16 247.16 74.5 | 86.4 | 77.8 | 59.4 RZ-136BX 22 138 0.326 1.4310 103.4 433.79 295.79 84.7 | 93.2 | 87.0 | 74.0 RZ-136AX 22 124 0.374 1.4310 103.4 381.27 257.27 91.3 | 96.2 | 92.5 | 85.0 RZ-130JX 20 100 0.383 1.4310 84.95 307.25 207.25 88.6 | 90.6 | 88.4 | 86.7 RZ-136X 22 110 0.44 1.4310 103.4 328.75 218.75 100.0 | 100.0 | 100.0 | 100.0 RZ-147JX 24 122 0.498 1.4310 123.7 354.87 232.87 89.6 | 90.9 | 88.8 | 89.0 RZ-141AX 18 118 0.731 1.4310 125.1 276.28 158.28 76.3 | 91.7 | 77.5 | 59.8 RZ-141X 18 104 0.86 1.4310 125.1 238.58 134.58 71.7 | 92.1 | 72.1 | 50.9 RZ-147K-02X 20 112 0.938 1.4310 147.2 256.47 144.47 69.3 | 93.3 | 68.1 | 46.4 RZ-156X 22.5 130 1.075 1.4310 186.1 290.15 160.15 64.2 | 87.5 | 64.4 | 40.7 RZ-156JX 20 123.5 1.646 1.4310 207.8 240.07 116.57 54.9 | 86.7 | 51.5 | 26.5 RZ-155X 22.5 93 1.726 1.4310 186.1 192.72 99.72 54.4 | 87.4 | 50.6 | 25.3 RZ-162K-21X 25 104 1.986 1.4310 229.9 211.1 107.1 51.2 | 84.7 | 47.0 | 22.0 RZ-162U-30X 24 115 2.758 1.4310 287.9 211.43 96.43 46.8 | 84.7 | 40.0 | 15.8 RZ-162N-01X 20 112 3.437 1.4310 282.9 187.92 75.92 45.1 | 86.9 | 35.6 | 12.7 RZ-162U-29X 24 94 3.688 1.4310 287.9 166.1 72.1 42.5 | 81.3 | 34.4 | 11.8 RZ-162NX 20 95.8 4.271 1.4310 282.9 156.91 61.11 41.9 | 83.1 | 32.2 | 10.2 RZ-173X 23.2 110 4.634 1.4310 356.7 181.74 71.74 42.1 | 85.8 | 30.9 | 9.5 RZ-177NX 25 122 6.059 1.4310 463.3 193.62 71.62 37.6 | 77.9 | 27.5 | 7.3 RZ-162U-40X 18 105.5 7.568 1.4310 373.9 150.29 44.79 37.1 | 81.5 | 24.1 | 5.7 Number of similar metal springs: 27 Customs tariff number: 73202085; Extension Spring RZ-136X Country of origin: DE, German; Extension Spring RZ-136X Product image - Extension Springs RZ-136X QR-Code: Extension Spring RZ-136X
