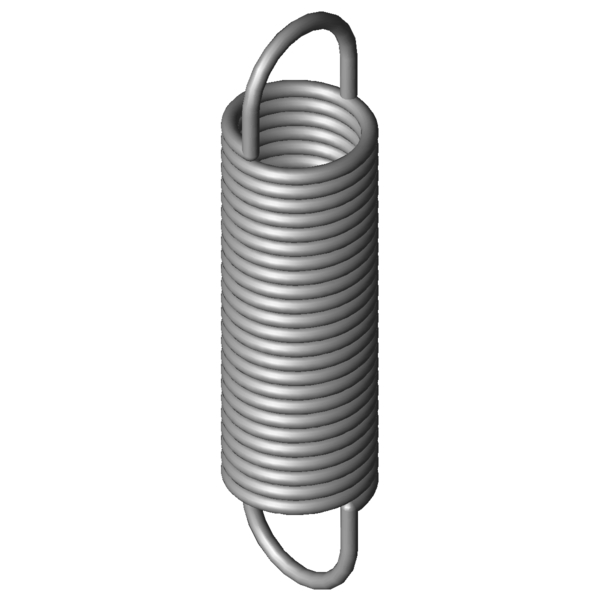

Home » Products » Extension Springs » rz-155x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-155X Stainless steel Ø 2.5 x 22.5 x 93 mm / 270° Scaled prices - Extension Spring RZ-155X Quantity Single price [EUR] 1 7.0400 EUR 2 4.4400 EUR 3 3.4600 EUR 7 2.9500 EUR 17 1.5300 EUR 37 1.2300 EUR 75 1.0500 EUR 125 1.0500 EUR 175 1.0500 EUR 250 1.0500 EUR 350 1.0500 EUR 450 1.0500 EUR Extension Spring Buy Product image Extension Spring RZ-155X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-155X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.5 mm Wire diameter D mm mean coil diameter De 22.5 mm outer coil diameter Dh 26.6 mm minimum bush diameter L0 93 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 64.38 mm length of unstressed spring body Ln 192.72 mm maximum spring length, inner loop to inner loop sn 99.72 mm Maximum spring deflection Fn 186.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 14.31 mm distance of inner edge of loop from the spring body R 1.726 N/mm Spring rate F0 14 N initial tension Fntol 12.04 N (+/-) tolerance of maximum spring force L0tol 1.5 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 29 degree (+/-) tolerance of loop position Weight 64.6319 g weight of one spring Price group #ZN - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-155X Stainless steel Ø 2.5 x 22.5 x 93 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-155X Stainless steel Ø 2.5 x 22.5 x 93 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-155X Stainless steel Ø 2.5 x 22.5 x 93 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-155X Stainless steel Ø 2.5 x 22.5 x 93 mm / 270° force-path-calculation Extension Spring RZ-155X Inquiry formular Extension Spring RZ-155X Stainless steel Ø 2.5 x 22.5 x 93 mm / 270° Inquiry formular Extension Spring RZ-155X Similar extension springs to Extension Spring RZ-155X Stainless steel Ø 2.5 x 22.5 x 93 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-155X 1.4310 2.5 22.5 93 186.1 192.72 99.72 1.726 100.0 | 100.0 | 100.0 | 100.0 Z-155X EN 10270-1 2.5 22.5 93 223.8 195.56 102.56 2.01 91.9 | 100.0 | 90.2 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-115V-12X 20 79 0.207 1.4310 51.22 310.63 231.63 41.7 | 77.9 | 35.3 | 11.8 RZ-130E-13X 24 107.5 0.211 1.4310 73.5 438 330.5 43.6 | 84.1 | 34.8 | 11.9 RZ-117AX 21.6 85 0.212 1.4310 56.93 337.94 252.94 43.6 | 83.8 | 35.0 | 12.1 RZ-117X 21.6 71 0.29 1.4310 56.93 256.49 185.49 45.8 | 78.8 | 42.2 | 16.4 RZ-130E-12X 24 80.3 0.339 1.4310 73.5 286.1 205.8 49.0 | 84.0 | 44.0 | 19.1 RZ-121X 17.6 88.6 0.352 1.4310 69.37 271.39 182.79 48.5 | 79.2 | 45.9 | 20.3 RZ-130JX 20 100 0.383 1.4310 84.95 307.25 207.25 51.2 | 84.6 | 46.9 | 22.0 RZ-136X 22 110 0.44 1.4310 103.4 328.75 218.75 54.4 | 87.4 | 50.6 | 25.3 RZ-147HX 24 88.6 0.799 1.4310 123.7 233.49 144.89 68.6 | 92.3 | 67.6 | 45.7 RZ-135AX 22 72.8 0.843 1.4310 103.4 186.99 114.19 68.4 | 85.4 | 71.4 | 48.5 RZ-137AX 18.6 95 0.881 1.4310 121.3 223 128 69.7 | 86.9 | 71.5 | 50.8 RZ-135X 22 70.8 0.886 1.4310 103.4 179.49 108.69 69.8 | 84.6 | 73.7 | 51.0 RZ-140AX 18 87.4 1.077 1.4310 125.1 195.19 107.79 75.6 | 84.7 | 79.9 | 62.2 RZ-147K-01X 20 90.9 1.264 1.4310 147.2 198.09 107.19 83.7 | 91.5 | 86.1 | 73.6 RZ-155X 22.5 93 1.726 1.4310 186.1 192.72 99.72 100.0 | 100.0 | 100.0 | 100.0 RZ-162K-21X 25 104 1.986 1.4310 229.9 211.1 107.1 87.8 | 89.6 | 87.0 | 86.9 RZ-156HX 20 91 2.477 1.4310 207.8 168.46 77.46 82.9 | 95.6 | 83.6 | 69.6 RZ-156GX 20 86 2.685 1.4310 207.8 157.45 71.45 79.5 | 93.8 | 80.6 | 64.2 RZ-158X 18.5 86.6 3.371 1.4310 223.4 147.52 60.92 71.6 | 91.8 | 72.2 | 50.9 RZ-162U-29X 24 94 3.688 1.4310 287.9 166.1 72.1 69.1 | 92.0 | 68.5 | 46.7 RZ-162NX 20 95.8 4.271 1.4310 282.9 156.91 61.11 65.2 | 91.8 | 63.5 | 40.3 RZ-173X 23.2 110 4.634 1.4310 356.7 181.74 71.74 62.0 | 86.6 | 62.1 | 37.5 RZ-176X 19.2 103 9.051 1.4310 422.9 145.71 42.71 48.9 | 84.6 | 43.4 | 18.8 RZ-177MX 25 89.7 9.521 1.4310 463.3 135.28 45.58 48.9 | 85.3 | 42.9 | 18.4 RZ-162U-39X 18 86 10.12 1.4310 373.9 119.49 33.49 47.9 | 85.3 | 41.7 | 16.7 RZ-202X 24 85.6 20.364 1.4310 643.3 114.49 28.89 40.0 | 82.8 | 29.0 | 8.4 Number of similar metal springs: 25 Customs tariff number: 73202085; Extension Spring RZ-155X Country of origin: DE, German; Extension Spring RZ-155X Product image - Extension Springs RZ-155X QR-Code: Extension Spring RZ-155X
