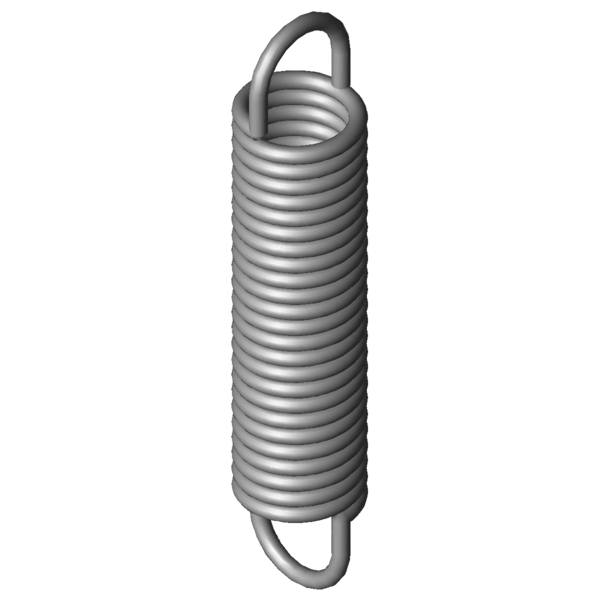

Home » Products » Extension Springs » rz-162nx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-162NX Stainless steel Ø 2.8 x 20 x 95.8 mm / 270° Scaled prices - Extension Spring RZ-162NX Quantity Single price [EUR] 1 7.1700 EUR 2 4.5200 EUR 3 3.5600 EUR 7 3.0400 EUR 17 3.0400 EUR 37 3.0400 EUR 75 3.0400 EUR 125 3.0400 EUR 175 3.0400 EUR 250 3.0400 EUR 350 3.0400 EUR 450 3.0400 EUR Extension Spring Buy Product image Extension Spring RZ-162NX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-162NX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.8 mm Wire diameter D mm mean coil diameter De 20 mm outer coil diameter Dh 24.6 mm minimum bush diameter L0 95.8 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 72.1 mm length of unstressed spring body Ln 156.91 mm maximum spring length, inner loop to inner loop sn 61.11 mm Maximum spring deflection Fn 282.9 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 11.85 mm distance of inner edge of loop from the spring body R 4.271 N/mm Spring rate F0 22 N initial tension Fntol 21.95 N (+/-) tolerance of maximum spring force L0tol 1.5 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 27 degree (+/-) tolerance of loop position Weight 69.7186 g weight of one spring Price group ###ZO - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-162NX Stainless steel Ø 2.8 x 20 x 95.8 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-162NX Stainless steel Ø 2.8 x 20 x 95.8 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-162NX Stainless steel Ø 2.8 x 20 x 95.8 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-162NX Stainless steel Ø 2.8 x 20 x 95.8 mm / 270° force-path-calculation Extension Spring RZ-162NX Inquiry formular Extension Spring RZ-162NX Stainless steel Ø 2.8 x 20 x 95.8 mm / 270° Inquiry formular Extension Spring RZ-162NX Similar extension springs to Extension Spring RZ-162NX Stainless steel Ø 2.8 x 20 x 95.8 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-162NX 1.4310 2.8 20 95.8 282.9 156.91 61.11 4.271 100.0 | 100.0 | 100.0 | 100.0 Z-162NX EN 10270-1 2.8 20 95.8 341.5 158.96 63.16 4.972 91.8 | 100.0 | 89.8 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-121KX 15.5 96 0.457 1.4310 78.31 254.74 158.74 40.6 | 78.1 | 33.1 | 10.7 RZ-130HX 20 73 0.616 1.4310 84.95 202.05 129.05 44.4 | 80.2 | 38.7 | 14.2 RZ-141X 18 104 0.86 1.4310 125.1 238.58 134.58 49.8 | 84.5 | 44.8 | 20.1 RZ-137AX 18.6 95 0.881 1.4310 121.3 223 128 51.2 | 87.9 | 45.3 | 20.5 RZ-147K-02X 20 112 0.938 1.4310 147.2 256.47 144.47 52.4 | 88.0 | 47.2 | 22.0 RZ-140AX 18 87.4 1.077 1.4310 125.1 195.19 107.79 53.2 | 84.2 | 50.5 | 25.1 RZ-147K-01X 20 90.9 1.264 1.4310 147.2 198.09 107.19 58.4 | 91.2 | 54.5 | 29.7 RZ-147K-21X 20 75.5 1.671 1.4310 147.2 156.6 81.1 62.9 | 85.8 | 63.7 | 39.2 RZ-155X 22.5 93 1.726 1.4310 186.1 192.72 99.72 65.2 | 91.8 | 63.5 | 40.3 RZ-156HX 20 91 2.477 1.4310 207.8 168.46 77.46 76.3 | 94.8 | 76.2 | 57.9 RZ-156GX 20 86 2.685 1.4310 207.8 157.45 71.45 78.4 | 93.0 | 79.5 | 62.8 RZ-158X 18.5 86.6 3.371 1.4310 223.4 147.52 60.92 86.4 | 90.7 | 89.3 | 79.2 RZ-162N-01X 20 112 3.437 1.4310 282.9 187.92 75.92 88.6 | 95.2 | 90.2 | 80.5 RZ-162U-29X 24 94 3.688 1.4310 287.9 166.1 72.1 89.8 | 91.6 | 91.5 | 86.3 RZ-162NX 20 95.8 4.271 1.4310 282.9 156.91 61.11 100.0 | 100.0 | 100.0 | 100.0 RZ-162U-40X 18 105.5 7.568 1.4310 373.9 150.29 44.79 73.8 | 91.4 | 74.5 | 55.5 RZ-176X 19.2 103 9.051 1.4310 422.9 145.71 42.71 69.1 | 92.2 | 68.4 | 46.8 RZ-162U-39X 18 86 10.12 1.4310 373.9 119.49 33.49 65.9 | 91.0 | 65.2 | 41.5 Number of similar metal springs: 17 Customs tariff number: 73202085; Extension Spring RZ-162NX Country of origin: DE, German; Extension Spring RZ-162NX Product image - Extension Springs RZ-162NX QR-Code: Extension Spring RZ-162NX
