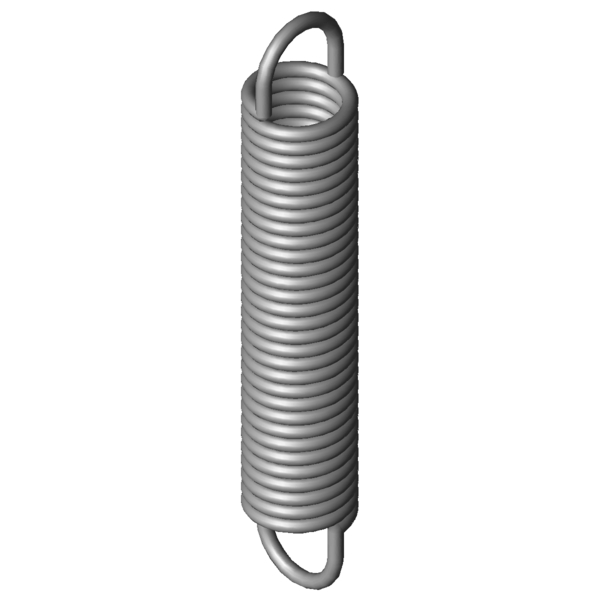

Home » Products » Extension Springs » rz-162n-01x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-162N-01X Stainless steel Ø 2.8 x 20 x 112 mm / 270° Scaled prices - Extension Spring RZ-162N-01X Quantity Single price [EUR] 1 7.3900 EUR 2 4.6600 EUR 3 3.7300 EUR 7 3.1800 EUR 17 3.1800 EUR 37 3.1800 EUR 75 3.1800 EUR 125 3.1800 EUR 175 3.1800 EUR 250 3.1800 EUR 350 3.1800 EUR 450 3.1800 EUR Extension Spring Buy Product image Extension Spring RZ-162N-01X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-162N-01X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.8 mm Wire diameter D mm mean coil diameter De 20 mm outer coil diameter Dh 24.6 mm minimum bush diameter L0 112 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 88.9 mm length of unstressed spring body Ln 187.92 mm maximum spring length, inner loop to inner loop sn 75.92 mm Maximum spring deflection Fn 282.9 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 11.55 mm distance of inner edge of loop from the spring body R 3.437 N/mm Spring rate F0 22 N initial tension Fntol 20.98 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 31 degree (+/-) tolerance of loop position Weight 85.504 g weight of one spring Price group ###ZP - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-162N-01X Stainless steel Ø 2.8 x 20 x 112 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-162N-01X Stainless steel Ø 2.8 x 20 x 112 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-162N-01X Stainless steel Ø 2.8 x 20 x 112 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-162N-01X Stainless steel Ø 2.8 x 20 x 112 mm / 270° force-path-calculation Extension Spring RZ-162N-01X Inquiry formular Extension Spring RZ-162N-01X Stainless steel Ø 2.8 x 20 x 112 mm / 270° Inquiry formular Extension Spring RZ-162N-01X Similar extension springs to Extension Spring RZ-162N-01X Stainless steel Ø 2.8 x 20 x 112 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-162N-01X 1.4310 2.8 20 112 282.9 187.92 75.92 3.437 100.0 | 100.0 | 100.0 | 100.0 Z-162N-01X EN 10270-1 2.8 20 112 341.5 190.44 78.44 4.002 91.8 | 100.0 | 89.8 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-121BX 17.6 111 0.26 1.4310 69.37 358.16 247.16 38.9 | 81.4 | 27.6 | 7.5 RZ-136AX 22 124 0.374 1.4310 103.4 381.27 257.27 42.7 | 84.2 | 33.0 | 10.8 RZ-130JX 20 100 0.383 1.4310 84.95 307.25 207.25 43.0 | 84.5 | 33.3 | 11.0 RZ-136X 22 110 0.44 1.4310 103.4 328.75 218.75 45.1 | 86.9 | 35.6 | 12.7 RZ-141AX 18 118 0.731 1.4310 125.1 276.28 158.28 50.9 | 85.4 | 46.1 | 21.2 RZ-147K-03X 20 134 0.746 1.4310 147.2 315.76 181.76 52.0 | 87.4 | 46.9 | 21.7 RZ-141X 18 104 0.86 1.4310 125.1 238.58 134.58 53.3 | 84.8 | 50.3 | 24.9 RZ-137AX 18.6 95 0.881 1.4310 121.3 223 128 53.2 | 83.1 | 51.1 | 25.4 RZ-147K-02X 20 112 0.938 1.4310 147.2 256.47 144.47 57.5 | 92.9 | 52.3 | 27.3 RZ-147K-01X 20 90.9 1.264 1.4310 147.2 198.09 107.19 61.6 | 86.6 | 61.4 | 36.9 RZ-156JX 20 123.5 1.646 1.4310 207.8 240.07 116.57 70.2 | 93.3 | 69.3 | 47.8 RZ-159X 18.5 124 2.099 1.4310 223.4 221.85 97.85 76.8 | 90.7 | 78.3 | 61.3 RZ-156HX 20 91 2.477 1.4310 207.8 168.46 77.46 82.6 | 90.2 | 85.7 | 72.0 RZ-162U-30X 24 115 2.758 1.4310 287.9 211.43 96.43 86.7 | 91.4 | 88.5 | 80.1 RZ-162N-01X 20 112 3.437 1.4310 282.9 187.92 75.92 100.0 | 100.0 | 100.0 | 100.0 RZ-162NX 20 95.8 4.271 1.4310 282.9 156.91 61.11 88.6 | 95.2 | 90.2 | 80.5 RZ-173X 23.2 110 4.634 1.4310 356.7 181.74 71.74 84.2 | 90.6 | 86.9 | 74.9 RZ-162U-41X 18 123.5 6.222 1.4310 373.9 177.97 54.47 73.1 | 91.3 | 73.7 | 54.3 RZ-162U-40X 18 105.5 7.568 1.4310 373.9 150.29 44.79 68.2 | 92.5 | 67.3 | 44.6 RZ-176X 19.2 103 9.051 1.4310 422.9 145.71 42.71 63.7 | 91.8 | 61.6 | 37.6 RZ-202AX 24 113.5 13.494 1.4310 643.3 157.1 43.6 53.3 | 84.0 | 50.7 | 25.3 RZ-177SX 18 111 19.886 1.4310 617.1 139.15 28.15 49.1 | 89.0 | 41.5 | 17.0 Number of similar metal springs: 21 Customs tariff number: 73202085; Extension Spring RZ-162N-01X Country of origin: DE, German; Extension Spring RZ-162N-01X Product image - Extension Springs RZ-162N-01X QR-Code: Extension Spring RZ-162N-01X
