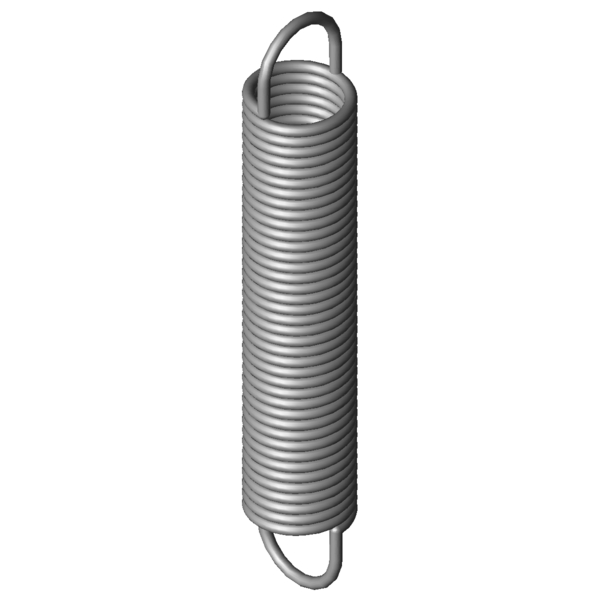

Home » Products » Extension Springs » rz-156x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-156X Stainless steel Ø 2.5 x 22.5 x 130 mm / 270° Scaled prices - Extension Spring RZ-156X Quantity Single price [EUR] 1 7.3900 EUR 2 4.6600 EUR 3 3.7300 EUR 7 3.1800 EUR 17 1.7800 EUR 37 1.3800 EUR 75 1.2300 EUR 125 1.2300 EUR 175 1.2300 EUR 250 1.2300 EUR 350 1.2300 EUR 450 1.2300 EUR Extension Spring Buy Product image Extension Spring RZ-156X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-156X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.5 mm Wire diameter D mm mean coil diameter De 22.5 mm outer coil diameter Dh 26.6 mm minimum bush diameter L0 130 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 101.88 mm length of unstressed spring body Ln 290.15 mm maximum spring length, inner loop to inner loop sn 160.15 mm Maximum spring deflection Fn 186.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 14.06 mm distance of inner edge of loop from the spring body R 1.075 N/mm Spring rate F0 14 N initial tension Fntol 11.09 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 36 degree (+/-) tolerance of loop position Weight 101.2132 g weight of one spring Price group #ZP - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-156X Stainless steel Ø 2.5 x 22.5 x 130 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-156X Stainless steel Ø 2.5 x 22.5 x 130 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-156X Stainless steel Ø 2.5 x 22.5 x 130 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-156X Stainless steel Ø 2.5 x 22.5 x 130 mm / 270° force-path-calculation Extension Spring RZ-156X Inquiry formular Extension Spring RZ-156X Stainless steel Ø 2.5 x 22.5 x 130 mm / 270° Inquiry formular Extension Spring RZ-156X Similar extension springs to Extension Spring RZ-156X Stainless steel Ø 2.5 x 22.5 x 130 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-156X 1.4310 2.5 22.5 130 186.1 290.15 160.15 1.075 100.0 | 100.0 | 100.0 | 100.0 Z-156X EN 10270-1 2.5 22.5 130 223.8 294.72 164.72 1.251 91.9 | 100.0 | 90.2 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-118AX 21.6 117 0.133 1.4310 56.93 519.83 402.83 43.6 | 83.3 | 35.2 | 12.2 RZ-130E-14X 24 143.5 0.141 1.4310 73.5 640.3 496.8 48.5 | 79.2 | 45.9 | 20.4 RZ-130E-13X 24 107.5 0.211 1.4310 73.5 438 330.5 48.6 | 82.8 | 44.0 | 19.1 RZ-130K-01X 20 145 0.235 1.4310 84.95 482.6 337.6 50.6 | 83.5 | 46.5 | 21.7 RZ-130KX 20 136 0.255 1.4310 84.95 447.53 311.53 52.5 | 85.5 | 48.5 | 23.5 RZ-136CX 22 154 0.283 1.4310 103.4 494.3 340.3 63.2 | 81.6 | 65.9 | 41.9 RZ-136BX 22 138 0.326 1.4310 103.4 433.79 295.79 58.5 | 90.7 | 54.9 | 30.1 RZ-136AX 22 124 0.374 1.4310 103.4 381.27 257.27 61.5 | 91.1 | 58.9 | 34.6 RZ-136X 22 110 0.44 1.4310 103.4 328.75 218.75 64.2 | 87.5 | 64.4 | 40.7 RZ-147JX 24 122 0.498 1.4310 123.7 354.87 232.87 68.4 | 91.9 | 67.6 | 45.7 RZ-141BX 18 132 0.636 1.4310 125.1 313.9 181.9 74.3 | 86.2 | 77.6 | 59.2 RZ-147K-03X 20 134 0.746 1.4310 147.2 315.76 181.76 81.5 | 91.3 | 83.6 | 69.7 RZ-156AX 22.5 148 0.914 1.4310 186.1 336.36 188.36 81.2 | 86.8 | 83.4 | 73.3 RZ-147K-02X 20 112 0.938 1.4310 147.2 256.47 144.47 86.7 | 87.7 | 84.7 | 87.7 RZ-156X 22.5 130 1.075 1.4310 186.1 290.15 160.15 100.0 | 100.0 | 100.0 | 100.0 RZ-162K-01X 25 143 1.269 1.4310 229.9 310.64 167.64 72.8 | 92.1 | 73.5 | 52.8 RZ-156JX 20 123.5 1.646 1.4310 207.8 240.07 116.57 80.3 | 94.6 | 81.2 | 65.2 RZ-159X 18.5 124 2.099 1.4310 223.4 221.85 97.85 71.9 | 92.5 | 72.2 | 50.9 RZ-162U-31X 24 133 2.268 1.4310 287.9 250.28 117.28 69.3 | 91.6 | 68.9 | 47.3 RZ-162O-01X 20 146 2.472 1.4310 282.9 251.55 105.55 66.1 | 89.1 | 65.8 | 43.4 RZ-162OX 20 138 2.659 1.4310 282.9 236.15 98.15 64.9 | 90.8 | 63.5 | 40.3 RZ-162U-30X 24 115 2.758 1.4310 287.9 211.43 96.43 63.3 | 88.5 | 62.4 | 38.9 RZ-174X 23.2 158 2.885 1.4310 356.7 273.21 115.21 53.2 | 87.4 | 48.7 | 23.4 RZ-162N-01X 20 112 3.437 1.4310 282.9 187.92 75.92 58.6 | 88.1 | 56.6 | 31.2 RZ-173X 23.2 110 4.634 1.4310 356.7 181.74 71.74 52.8 | 86.6 | 48.5 | 23.4 RZ-177NX 25 122 6.059 1.4310 463.3 193.62 71.62 48.3 | 84.4 | 42.4 | 18.0 RZ-203X 24 141 10.09 1.4310 643.3 199.31 58.31 42.0 | 82.8 | 32.7 | 10.5 RZ-202AX 24 113.5 13.494 1.4310 643.3 157.1 43.6 39.0 | 81.2 | 28.1 | 7.9 Number of similar metal springs: 27 Customs tariff number: 73202085; Extension Spring RZ-156X Country of origin: DE, German; Extension Spring RZ-156X Product image - Extension Springs RZ-156X QR-Code: Extension Spring RZ-156X
