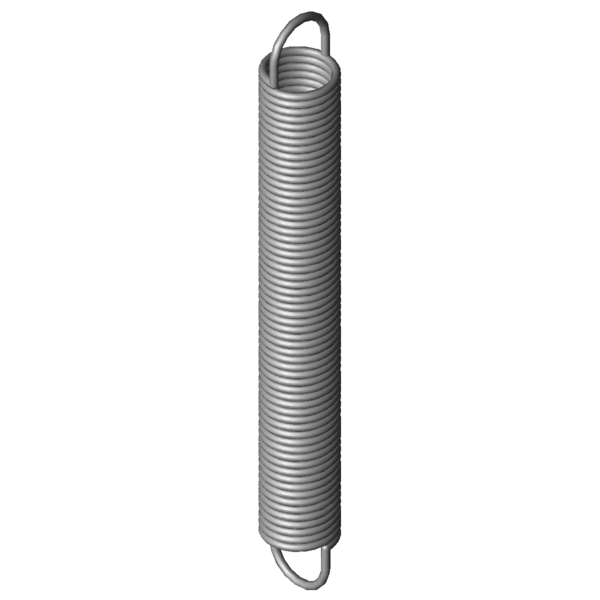

Home » Products » Extension Springs » rz-156cx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-156CX Stainless steel Ø 2.5 x 22.5 x 185 mm / 270° Scaled prices - Extension Spring RZ-156CX Quantity Single price [EUR] 1 7.5200 EUR 2 4.7400 EUR 3 3.7800 EUR 7 3.2200 EUR 17 1.9500 EUR 37 1.5600 EUR 75 1.4700 EUR 125 1.4700 EUR 175 1.4700 EUR 250 1.4700 EUR 350 1.4700 EUR 450 1.4700 EUR Extension Spring Buy Product image Extension Spring RZ-156CX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-156CX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.5 mm Wire diameter D mm mean coil diameter De 22.5 mm outer coil diameter Dh 26.6 mm minimum bush diameter L0 185 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 156.88 mm length of unstressed spring body Ln 433.79 mm maximum spring length, inner loop to inner loop sn 248.79 mm Maximum spring deflection Fn 186.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 14.06 mm distance of inner edge of loop from the spring body R 0.692 N/mm Spring rate F0 14 N initial tension Fntol 10.52 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 45 degree (+/-) tolerance of loop position Weight 154.8659 g weight of one spring Price group #ZQ - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-156CX Stainless steel Ø 2.5 x 22.5 x 185 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-156CX Stainless steel Ø 2.5 x 22.5 x 185 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-156CX Stainless steel Ø 2.5 x 22.5 x 185 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-156CX Stainless steel Ø 2.5 x 22.5 x 185 mm / 270° force-path-calculation Extension Spring RZ-156CX Inquiry formular Extension Spring RZ-156CX Stainless steel Ø 2.5 x 22.5 x 185 mm / 270° Inquiry formular Extension Spring RZ-156CX Similar extension springs to Extension Spring RZ-156CX Stainless steel Ø 2.5 x 22.5 x 185 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-156CX 1.4310 2.5 22.5 185 186.1 433.79 248.79 0.692 100.0 | 100.0 | 100.0 | 100.0 Z-156CX EN 10270-1 2.5 22.5 185 223.8 440.88 255.88 0.806 91.9 | 100.0 | 90.2 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-118DX 21.6 172 0.082 1.4310 56.93 829.64 657.64 43.4 | 84.3 | 34.2 | 11.6 RZ-130E-15X 24 178 0.107 1.4310 73.5 832.7 654.7 47.0 | 87.3 | 38.7 | 15.0 RZ-130K-02X 20 170 0.193 1.4310 84.95 580.6 410.6 55.0 | 84.3 | 53.1 | 27.7 RZ-136EX 22 186 0.225 1.4310 103.4 613.86 427.86 60.5 | 92.4 | 56.9 | 32.3 RZ-136DX 22 170 0.251 1.4310 103.4 553.84 383.84 62.0 | 89.9 | 60.2 | 36.0 RZ-136CX 22 154 0.283 1.4310 103.4 494.3 340.3 64.0 | 87.0 | 64.3 | 40.6 RZ-147KX 24 166 0.331 1.4310 123.7 516.03 350.03 68.8 | 90.5 | 68.8 | 47.2 RZ-141EX 18 180 0.44 1.4310 125.1 443.23 263.23 76.7 | 85.8 | 80.9 | 63.5 RZ-156EX 22.5 225 0.549 1.4310 186.1 538.26 313.26 87.7 | 94.1 | 89.7 | 79.4 RZ-156DX 22.5 205 0.613 1.4310 186.1 486.03 281.03 93.2 | 96.7 | 94.3 | 88.5 RZ-156CX 22.5 185 0.692 1.4310 186.1 433.79 248.79 100.0 | 100.0 | 100.0 | 100.0 RZ-156BX 22.5 165 0.795 1.4310 186.1 381.56 216.56 92.3 | 96.4 | 93.5 | 87.0 RZ-162K-03X 25 199 0.837 1.4310 229.9 453.16 254.16 87.6 | 90.8 | 89.4 | 82.7 RZ-156MX 20 203.5 0.901 1.4310 207.8 416.34 212.84 85.8 | 93.3 | 87.6 | 76.6 RZ-156AX 22.5 148 0.914 1.4310 186.1 336.36 188.36 85.6 | 93.3 | 87.9 | 75.7 RZ-156LX 20 191 0.97 1.4310 207.8 388.8 197.8 83.7 | 95.2 | 84.5 | 71.2 RZ-162K-02X 25 171 1.008 1.4310 229.9 381.9 210.9 80.7 | 90.6 | 82.9 | 68.6 RZ-159CX 18.5 179 1.351 1.4310 223.4 331 152 72.0 | 93.0 | 72.2 | 50.9 RZ-162U-34X 24 193 1.424 1.4310 287.9 379.79 186.79 69.8 | 91.0 | 69.9 | 48.5 RZ-162U-33X 24 172 1.637 1.4310 287.9 334.46 162.46 65.7 | 90.0 | 65.0 | 42.2 RZ-162P-01X 20 202 1.684 1.4310 282.9 356.93 154.93 65.0 | 89.9 | 64.0 | 41.0 RZ-162PX 20 194 1.769 1.4310 282.9 341.53 147.53 64.2 | 91.2 | 62.5 | 39.0 RZ-162O-02X 20 171 2.042 1.4310 282.9 298.77 127.77 60.9 | 90.2 | 58.6 | 33.8 RZ-174BX 23.2 202 2.134 1.4310 356.7 357.79 155.79 59.7 | 88.9 | 57.4 | 32.7 RZ-174AX 23.2 180 2.453 1.4310 356.7 315.5 135.5 57.5 | 90.8 | 53.3 | 28.4 RZ-174X 23.2 158 2.885 1.4310 356.7 273.21 115.21 53.4 | 86.8 | 49.2 | 24.2 Number of similar metal springs: 25 Customs tariff number: 73202085; Extension Spring RZ-156CX Country of origin: DE, German; Extension Spring RZ-156CX Product image - Extension Springs RZ-156CX QR-Code: Extension Spring RZ-156CX
