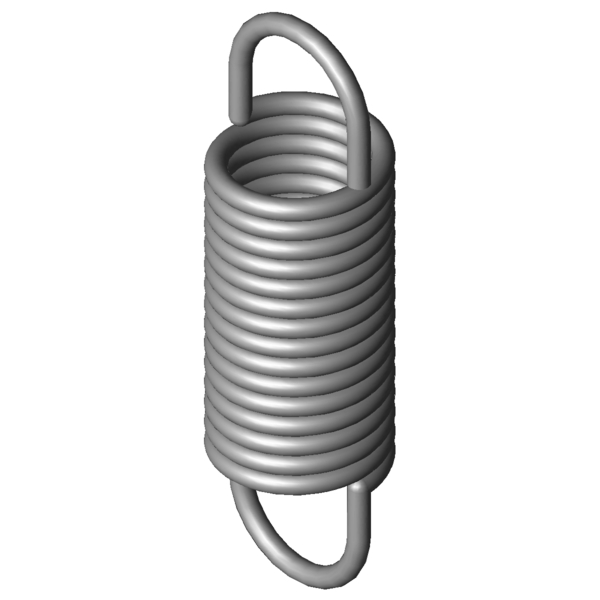

Home » Products » Extension Springs » rz-141fi Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-141FI Stainless steel Ø 2 x 16 x 53 mm / 180° Scaled prices - Extension Spring RZ-141FI Quantity Single price [EUR] 1 6.4000 EUR 2 4.0300 EUR 3 2.8200 EUR 7 2.3500 EUR 17 1.1600 EUR 37 0.8500 EUR 75 0.6900 EUR 125 0.6356 EUR 175 0.6220 EUR 250 0.6172 EUR 350 0.5899 EUR 450 0.5461 EUR Extension Spring Buy Product image Extension Spring RZ-141FI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-141FI Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 16 mm outer coil diameter Dh 19.3 mm minimum bush diameter L0 53 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 33 mm length of unstressed spring body Ln 91.94 mm maximum spring length, inner loop to inner loop sn 38.94 mm Maximum spring deflection Fn 139.7 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 10 mm distance of inner edge of loop from the spring body R 3.292 N/mm Spring rate F0 11.6 N initial tension Fntol 11.01 N (+/-) tolerance of maximum spring force L0tol 1.1 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 22 degree (+/-) tolerance of loop position Weight 18.8467 g weight of one spring Price group ZJ - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-141FI Stainless steel Ø 2 x 16 x 53 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-141FI Stainless steel Ø 2 x 16 x 53 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-141FI Stainless steel Ø 2 x 16 x 53 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-141FI Stainless steel Ø 2 x 16 x 53 mm / 180° force-path-calculation Extension Spring RZ-141FI Inquiry formular Extension Spring RZ-141FI Stainless steel Ø 2 x 16 x 53 mm / 180° Inquiry formular Extension Spring RZ-141FI Similar extension springs to Extension Spring RZ-141FI Stainless steel Ø 2 x 16 x 53 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-141FI 1.4310 2 16 53 139.7 91.94 38.94 3.292 100.0 | 100.0 | 100.0 | 100.0 Z-141FI EN 10270-1 2 16 53 166.7 92.72 39.72 3.832 92.1 | 100.0 | 90.9 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-115JI 15 55.9 0.545 1.4310 55.72 150.08 94.18 47.8 | 86.2 | 40.6 | 16.5 RZ-106E-11I 12.7 50.2 0.558 1.4310 47.55 128.8 78.6 45.8 | 78.9 | 41.8 | 16.9 RZ-115V-21I 15 62.5 0.655 1.4310 67.55 157.81 95.31 49.6 | 84.5 | 44.6 | 19.8 RZ-121GI 15.5 66 0.776 1.4310 78.31 159.38 93.38 52.7 | 85.7 | 48.9 | 23.4 RZ-115HI 15 43.3 0.862 1.4310 55.72 102.88 59.58 53.5 | 81.8 | 52.6 | 26.1 RZ-123I 14.1 59 1.198 1.4310 85.63 125.2 66.2 60.7 | 86.0 | 60.1 | 36.1 RZ-119I 17.6 43.8 1.217 1.4310 69.37 96.6 52.8 60.9 | 84.5 | 61.7 | 36.6 RZ-115V-20I 15 41.5 1.334 1.4310 67.55 88.29 46.79 62.8 | 82.4 | 65.8 | 40.2 RZ-130K-21I 16 63 1.426 1.4310 105 131.1 68.1 66.8 | 91.4 | 66.2 | 43.0 RZ-121FI 15.5 43.5 1.582 1.4310 78.31 89.34 45.84 68.1 | 86.3 | 70.5 | 47.6 RZ-124F-02I 12.7 52 1.95 1.4310 94.45 97 45 73.8 | 85.8 | 77.1 | 58.5 RZ-130K-20I 16 45 2.566 1.4310 105 82.8 37.8 85.1 | 91.6 | 86.1 | 77.4 RZ-136E-10I 18.6 49 2.661 1.4310 121.3 91.4 42.4 87.3 | 92.8 | 89.3 | 79.7 RZ-139I 18 48.4 2.972 1.4310 125.1 87.33 38.93 92.6 | 93.4 | 94.8 | 89.6 RZ-141FI 16 53 3.292 1.4310 139.7 91.94 38.94 100.0 | 100.0 | 100.0 | 100.0 RZ-147K-20I 20 51.5 3.461 1.4310 147.2 90.7 39.2 94.0 | 89.4 | 97.1 | 95.5 RZ-143I 14.5 58.8 3.676 1.4310 153 96.82 38.02 92.4 | 93.6 | 94.5 | 89.1 RZ-141E-10I 16 41 5.371 1.4310 139.7 64.8 23.8 78.0 | 92.5 | 80.6 | 61.1 RZ-147MI 15 54.4 6.306 1.4310 192.2 82.25 27.85 72.7 | 94.0 | 72.1 | 52.0 RZ-157I 18.5 54.1 7.256 1.4310 223.4 82.41 28.31 67.1 | 88.2 | 67.6 | 45.5 RZ-162LI 20 53.8 11.126 1.4310 282.9 77.26 23.46 56.0 | 83.3 | 54.8 | 29.8 RZ-160I 15 48.5 15.217 1.4310 269.8 64.69 16.19 52.2 | 88.4 | 46.7 | 21.5 RZ-162U-38I 18 60.5 16.8 1.4310 373.9 80.67 20.17 48.3 | 81.1 | 44.6 | 19.4 RZ-162RI 14 61 24.698 1.4310 386.7 75.17 14.17 43.8 | 81.9 | 36.3 | 13.1 RZ-177QI 18 56.9 51.809 1.4310 617.1 67.7 10.8 36.9 | 79.2 | 25.2 | 6.3 Number of similar metal springs: 24 Customs tariff number: 73202085; Extension Spring RZ-141FI Country of origin: DE, German; Extension Spring RZ-141FI Product image - Extension Springs RZ-141FI QR-Code: Extension Spring RZ-141FI
