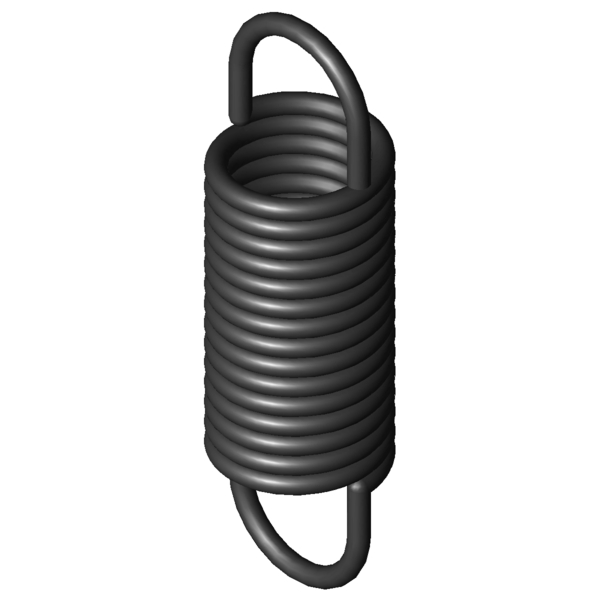

Home » Products » Extension Springs » z-141fi Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-141FI Spring steel Ø 2 x 16 x 53 mm / 180° Scaled prices - Extension Spring Z-141FI Quantity Single price [EUR] 1 6.1600 EUR 2 3.8800 EUR 3 2.3500 EUR 7 1.9600 EUR 17 1.0000 EUR 37 0.6100 EUR 75 0.4700 EUR 125 0.4700 EUR 175 0.4700 EUR 250 0.4700 EUR 350 0.4700 EUR 450 0.4700 EUR Extension Spring Buy Product image Extension Spring Z-141FI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-141FI Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 16 mm outer coil diameter Dh 19.3 mm minimum bush diameter L0 53 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 33 mm length of unstressed spring body Ln 92.72 mm maximum spring length, inner loop to inner loop sn 39.72 mm Maximum spring deflection Fn 166.7 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 10 mm distance of inner edge of loop from the spring body R 3.832 N/mm Spring rate F0 14.5 N initial tension Fntol 10.2 N (+/-) tolerance of maximum spring force L0tol 1.1 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 22 degree (+/-) tolerance of loop position Weight 19.02 g weight of one spring Price group #ZF - price group Technical drawing Extension Spring Datasheet Extension Spring Z-141FI Spring steel Ø 2 x 16 x 53 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-141FI Spring steel Ø 2 x 16 x 53 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-141FI Spring steel Ø 2 x 16 x 53 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-141FI Spring steel Ø 2 x 16 x 53 mm / 180° force-path-calculation Extension Spring Z-141FI Inquiry formular Extension Spring Z-141FI Spring steel Ø 2 x 16 x 53 mm / 180° Inquiry formular Extension Spring Z-141FI Similar extension springs to Extension Spring Z-141FI Spring steel Ø 2 x 16 x 53 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-141FI EN 10270-1 2 16 53 166.7 92.72 39.72 3.832 100.0 | 100.0 | 100.0 | 100.0 RZ-141FI 1.4310 2 16 53 139.7 91.94 38.94 3.292 92.1 | 100.0 | 90.9 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-115JI 15 55.9 0.635 EN 10270-1 66.08 151.39 95.49 47.8 | 86.2 | 40.6 | 16.5 Z-106E-11I 12.7 50.2 0.65 EN 10270-1 56.71 130.31 80.11 45.8 | 78.9 | 41.8 | 16.9 Z-115V-21I 15 62.5 0.762 EN 10270-1 79.83 158.78 96.28 49.6 | 84.5 | 44.6 | 19.8 Z-121GI 15.5 66 0.904 EN 10270-1 92.71 160.45 94.45 52.6 | 85.7 | 48.8 | 23.4 Z-115HI 15 43.3 1.004 EN 10270-1 66.08 103.71 60.41 53.5 | 81.8 | 52.7 | 26.1 Z-123I 14.1 59 1.395 EN 10270-1 101.3 126.02 67.02 60.7 | 86.0 | 60.0 | 36.0 Z-119I 17.6 43.8 1.417 EN 10270-1 82.12 97.35 53.55 60.9 | 84.5 | 61.7 | 36.5 Z-115V-20I 15 41.5 1.553 EN 10270-1 79.84 88.77 47.27 62.9 | 82.4 | 66.0 | 40.2 Z-130K-21I 16 63 1.66 EN 10270-1 124.8 132.23 69.23 66.8 | 91.4 | 66.1 | 43.0 Z-121FI 15.5 43.5 1.841 EN 10270-1 92.71 89.87 46.37 68.2 | 86.3 | 70.6 | 47.6 Z-124F-02I 12.7 52 2.271 EN 10270-1 111.8 97.57 45.57 73.8 | 85.8 | 77.1 | 58.5 Z-130K-20I 16 45 2.99 EN 10270-1 124.8 83.46 38.46 84.9 | 91.6 | 85.8 | 77.3 Z-136E-10I 18.6 49 3.099 EN 10270-1 144.7 92.21 43.21 87.3 | 92.8 | 89.4 | 79.8 Z-139I 18 48.4 3.46 EN 10270-1 149.2 88.13 39.73 92.5 | 93.4 | 94.7 | 89.5 Z-141FI 16 53 3.832 EN 10270-1 166.7 92.72 39.72 100.0 | 100.0 | 100.0 | 100.0 Z-147K-20I 20 51.5 4.03 EN 10270-1 176.1 91.5 40 93.9 | 89.4 | 97.0 | 95.3 Z-143I 14.5 58.8 4.28 EN 10270-1 182.5 97.56 38.76 92.4 | 93.6 | 94.5 | 89.1 Z-141E-10I 16 41 6.253 EN 10270-1 166.7 65.35 24.35 78.1 | 92.5 | 80.7 | 61.3 Z-147MI 15 54.4 7.342 EN 10270-1 229.9 82.89 28.49 72.7 | 94.0 | 72.1 | 52.0 Z-157I 18.5 54.1 8.448 EN 10270-1 268.6 83.22 29.12 67.1 | 88.2 | 67.7 | 45.5 Z-162LI 20 53.8 12.954 EN 10270-1 341.5 78.04 24.24 56.0 | 83.3 | 54.9 | 29.8 Z-160I 15 48.5 17.717 EN 10270-1 324.5 65.16 16.66 52.2 | 88.4 | 46.7 | 21.5 Z-162U-38I 18 60.5 19.56 EN 10270-1 452.6 81.4 20.9 48.4 | 81.1 | 44.7 | 19.4 Z-162RI 14 61 28.755 EN 10270-1 466.9 75.64 14.64 43.8 | 81.9 | 36.3 | 13.2 Z-177QI 18 56.9 60.321 EN 10270-1 739.6 67.97 11.07 36.9 | 79.2 | 25.2 | 6.3 Number of similar metal springs: 24 Customs tariff number: 73202085; Extension Spring Z-141FI Country of origin: DE, German; Extension Spring Z-141FI Product image - Extension Springs Z-141FI QR-Code: Extension Spring Z-141FI
