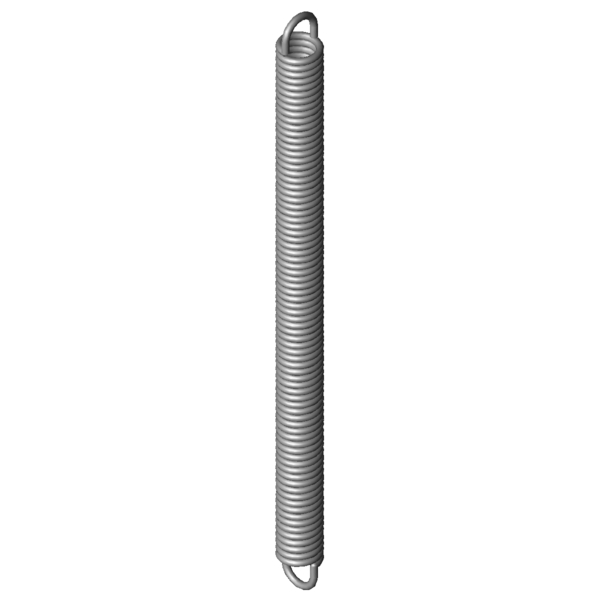

Home » Products » Extension Springs » rz-147ex Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-147EX Stainless steel Ø 2 x 12 x 170 mm / 270° Scaled prices - Extension Spring RZ-147EX Quantity Single price [EUR] 1 7.0400 EUR 2 4.4400 EUR 3 3.4600 EUR 7 2.9500 EUR 17 1.5300 EUR 37 1.2300 EUR 75 1.0500 EUR 125 1.0500 EUR 175 1.0500 EUR 250 1.0500 EUR 350 1.0500 EUR 450 1.0500 EUR Extension Spring Buy Product image Extension Spring RZ-147EX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-147EX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 12 mm outer coil diameter Dh 15.3 mm minimum bush diameter L0 170 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 157.5 mm length of unstressed spring body Ln 262.08 mm maximum spring length, inner loop to inner loop sn 92.08 mm Maximum spring deflection Fn 181.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 6.25 mm distance of inner edge of loop from the spring body R 1.801 N/mm Spring rate F0 15.7 N initial tension Fntol 15.21 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.25 mm (+/-) tolerance of outer coil diameter Oesttol 47 degree (+/-) tolerance of loop position Weight 62.0419 g weight of one spring Price group #ZN - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-147EX Stainless steel Ø 2 x 12 x 170 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-147EX Stainless steel Ø 2 x 12 x 170 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-147EX Stainless steel Ø 2 x 12 x 170 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-147EX Stainless steel Ø 2 x 12 x 170 mm / 270° force-path-calculation Extension Spring RZ-147EX Inquiry formular Extension Spring RZ-147EX Stainless steel Ø 2 x 12 x 170 mm / 270° Inquiry formular Extension Spring RZ-147EX Similar extension springs to Extension Spring RZ-147EX Stainless steel Ø 2 x 12 x 170 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-147EX 1.4310 2 12 170 181.5 262.08 92.08 1.801 100.0 | 100.0 | 100.0 | 100.0 Z-147EX EN 10270-1 2 12 170 216.4 263.86 93.86 2.096 92.2 | 100.0 | 91.0 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-130K-06X 16 159 0.423 1.4310 105 388.36 229.36 52.8 | 86.2 | 49.0 | 23.2 RZ-115V-37X 12 120.5 0.549 1.4310 83.35 261.92 141.42 55.8 | 82.0 | 55.5 | 29.9 RZ-124JX 12.7 139 0.554 1.4310 94.45 297.59 158.59 56.9 | 85.4 | 55.1 | 30.2 RZ-115V-36X 12 108.5 0.62 1.4310 83.35 233.7 125.2 57.7 | 79.6 | 59.7 | 33.8 RZ-124HX 12.7 115 0.69 1.4310 94.45 242.19 127.19 60.2 | 80.7 | 62.2 | 37.7 RZ-127EX 11.6 143 0.719 1.4310 102.6 274.81 131.81 63.2 | 86.9 | 63.2 | 39.5 RZ-127DX 11.6 130 0.799 1.4310 102.6 248.59 118.59 65.1 | 84.4 | 67.1 | 43.9 RZ-127CX 11.6 117 0.9 1.4310 102.6 222.36 105.36 67.7 | 81.8 | 72.0 | 49.4 RZ-144EX 14.5 174 0.922 1.4310 153 325.31 151.31 72.5 | 93.5 | 72.6 | 51.3 RZ-144DX 14.5 158 1.028 1.4310 153 294.01 136.01 75.0 | 91.9 | 76.0 | 57.1 RZ-144CX 14.5 142 1.161 1.4310 153 262.41 120.41 77.9 | 88.8 | 80.4 | 64.5 RZ-130EX 9.6 136 1.441 1.4310 121.7 213.92 77.92 78.4 | 80.0 | 75.8 | 79.2 RZ-130PX 12 123 1.449 1.4310 137 210.01 87.01 84.1 | 87.5 | 85.0 | 79.9 RZ-147PX 15 151 1.636 1.4310 192.2 258.36 107.36 89.2 | 86.6 | 90.1 | 90.8 RZ-147EX 12 170 1.801 1.4310 181.5 262.08 92.08 100.0 | 100.0 | 100.0 | 100.0 RZ-147DX 12 154.8 2.007 1.4310 181.5 237.4 82.6 93.9 | 97.0 | 94.9 | 89.7 RZ-147CX 12 138 2.267 1.4310 181.5 211.13 73.13 87.6 | 93.7 | 89.7 | 79.4 RZ-162DX 15 193 2.509 1.4310 269.8 291.22 98.22 78.3 | 82.7 | 80.5 | 71.8 RZ-147B-01X 12 126 2.511 1.4310 181.5 192.02 66.02 83.0 | 91.4 | 85.8 | 71.7 RZ-147BX 12 122 2.605 1.4310 181.5 185.65 63.65 81.4 | 90.6 | 84.6 | 69.1 RZ-162CX 15 173 2.834 1.4310 269.8 259.95 86.95 76.8 | 86.1 | 80.9 | 63.5 RZ-147AX 12 108 2.995 1.4310 181.5 163.36 55.36 76.0 | 87.8 | 80.1 | 60.1 RZ-162BX 15 153 3.256 1.4310 269.8 228.69 75.69 71.1 | 83.3 | 74.7 | 55.3 RZ-147UX 11 145 5.034 1.4310 251.8 190.07 45.07 61.7 | 89.3 | 60.5 | 35.3 RZ-162UX 14 184 6.407 1.4310 386.7 238.64 54.64 54.7 | 83.2 | 53.1 | 27.9 Number of similar metal springs: 24 Customs tariff number: 73202085; Extension Spring RZ-147EX Country of origin: DE, German; Extension Spring RZ-147EX Product image - Extension Springs RZ-147EX QR-Code: Extension Spring RZ-147EX
