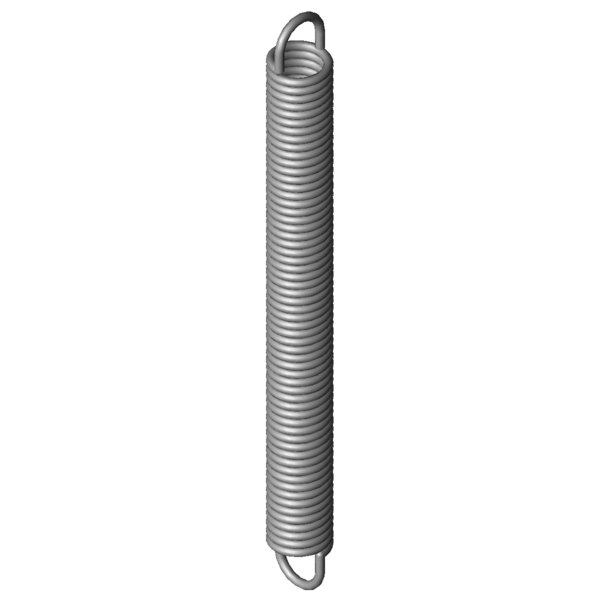

Home » Products » Extension Springs » rz-147px Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-147PX Stainless steel Ø 2.2 x 15 x 151 mm / 270° Scaled prices - Extension Spring RZ-147PX Quantity Single price [EUR] 1 7.0400 EUR 2 4.4400 EUR 3 3.4600 EUR 7 2.9500 EUR 17 1.5300 EUR 37 1.2300 EUR 75 1.0500 EUR 125 1.0500 EUR 175 1.0500 EUR 250 1.0500 EUR 350 1.0500 EUR 450 1.0500 EUR Extension Spring Buy Product image Extension Spring RZ-147PX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-147PX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.2 mm Wire diameter D mm mean coil diameter De 15 mm outer coil diameter Dh 18.6 mm minimum bush diameter L0 151 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 133.65 mm length of unstressed spring body Ln 258.36 mm maximum spring length, inner loop to inner loop sn 107.36 mm Maximum spring deflection Fn 192.2 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 8.67 mm distance of inner edge of loop from the spring body R 1.636 N/mm Spring rate F0 16.6 N initial tension Fntol 13.87 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 42 degree (+/-) tolerance of loop position Weight 74.3342 g weight of one spring Price group #ZN - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-147PX Stainless steel Ø 2.2 x 15 x 151 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-147PX Stainless steel Ø 2.2 x 15 x 151 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-147PX Stainless steel Ø 2.2 x 15 x 151 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-147PX Stainless steel Ø 2.2 x 15 x 151 mm / 270° force-path-calculation Extension Spring RZ-147PX Inquiry formular Extension Spring RZ-147PX Stainless steel Ø 2.2 x 15 x 151 mm / 270° Inquiry formular Extension Spring RZ-147PX Similar extension springs to Extension Spring RZ-147PX Stainless steel Ø 2.2 x 15 x 151 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-147PX 1.4310 2.2 15 151 192.2 258.36 107.36 1.636 100.0 | 100.0 | 100.0 | 100.0 Z-147PX EN 10270-1 2.2 15 151 229.9 260.82 109.82 1.905 92.1 | 100.0 | 90.7 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-124EX 14.1 143 0.383 1.4310 85.63 350.39 207.39 52.8 | 87.1 | 48.2 | 23.1 RZ-124DX 14.1 131 0.421 1.4310 85.63 319.47 188.47 53.5 | 84.5 | 50.8 | 25.4 RZ-130K-06X 16 159 0.423 1.4310 105 388.36 229.36 55.5 | 90.2 | 50.7 | 25.6 RZ-124CX 14.1 118 0.475 1.4310 85.63 284.86 166.86 54.9 | 81.6 | 54.4 | 28.7 RZ-138X 18.6 147 0.504 1.4310 121.3 370.88 223.88 58.5 | 89.6 | 55.5 | 30.3 RZ-130K-05X 16 134 0.52 1.4310 105 320.97 186.97 58.5 | 88.1 | 56.0 | 31.4 RZ-141CX 18 148 0.554 1.4310 125.1 357.06 209.06 60.8 | 90.8 | 58.2 | 33.4 RZ-124JX 12.7 139 0.554 1.4310 94.45 297.59 158.59 58.3 | 83.1 | 58.4 | 33.3 RZ-141JX 16 155 0.764 1.4310 139.7 322.68 167.68 69.6 | 94.0 | 68.4 | 46.5 RZ-144EX 14.5 174 0.922 1.4310 153 325.31 151.31 74.4 | 91.5 | 75.3 | 56.5 RZ-141HX 16 121 1.026 1.4310 139.7 245.97 124.97 76.7 | 88.3 | 79.3 | 62.4 RZ-144DX 14.5 158 1.028 1.4310 153 294.01 136.01 78.8 | 94.4 | 79.3 | 62.8 RZ-144CX 14.5 142 1.161 1.4310 153 262.41 120.41 83.1 | 93.9 | 84.4 | 71.0 RZ-144BX 14.5 126 1.334 1.4310 153 230.81 104.81 86.8 | 90.3 | 88.6 | 81.5 RZ-147PX 15 151 1.636 1.4310 192.2 258.36 107.36 100.0 | 100.0 | 100.0 | 100.0 RZ-147DX 12 154.8 2.007 1.4310 181.5 237.4 82.6 85.5 | 89.5 | 85.7 | 81.5 RZ-162DX 15 193 2.509 1.4310 269.8 291.22 98.22 78.4 | 88.7 | 81.4 | 65.2 RZ-162CX 15 173 2.834 1.4310 269.8 259.95 86.95 75.2 | 91.8 | 76.1 | 57.7 RZ-162BX 15 153 3.256 1.4310 269.8 228.69 75.69 72.2 | 95.6 | 70.9 | 50.2 RZ-162AX 15 136 3.743 1.4310 269.8 201.83 65.83 67.5 | 92.7 | 66.3 | 43.7 RZ-162X 15 118 4.402 1.4310 269.8 173.97 55.97 62.5 | 88.7 | 61.7 | 37.1 RZ-162U-43X 18 162.5 4.492 1.4310 373.9 237.95 75.45 60.1 | 83.2 | 60.8 | 36.1 RZ-162U-42X 18 144.5 5.153 1.4310 373.9 210.27 65.77 57.3 | 84.1 | 56.3 | 31.5 RZ-162TX 14 128 9.631 1.4310 386.7 164.35 36.35 48.1 | 85.6 | 41.8 | 16.8 Number of similar metal springs: 23 Customs tariff number: 73202085; Extension Spring RZ-147PX Country of origin: DE, German; Extension Spring RZ-147PX Product image - Extension Springs RZ-147PX QR-Code: Extension Spring RZ-147PX
