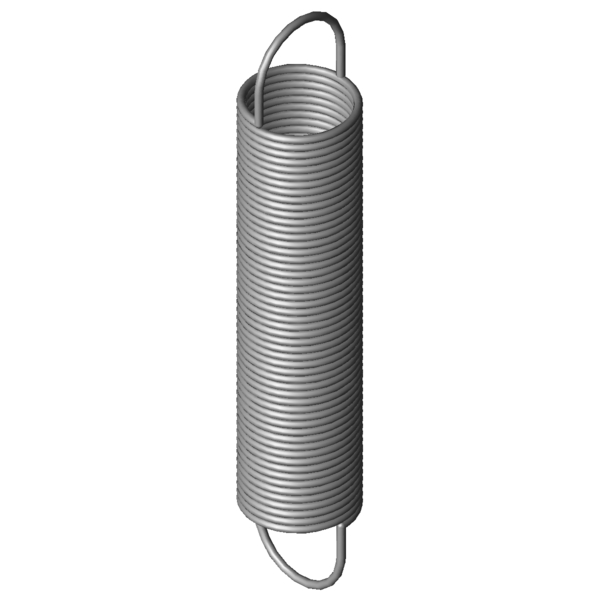

Home » Products » Extension Springs » rz-150ax Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-150AX Stainless steel Ø 2.5 x 34.5 x 184 mm / 270° Scaled prices - Extension Spring RZ-150AX Quantity Single price [EUR] 1 7.8500 EUR 2 4.9500 EUR 3 4.0000 EUR 7 3.4100 EUR 17 2.2200 EUR 37 1.7900 EUR 75 1.6600 EUR 125 1.6600 EUR 175 1.6600 EUR 250 1.6600 EUR 350 1.6600 EUR 450 1.6600 EUR Extension Spring Buy Product image Extension Spring RZ-150AX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-150AX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.5 mm Wire diameter D mm mean coil diameter De 34.5 mm outer coil diameter Dh 38.9 mm minimum bush diameter L0 184 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 136.88 mm length of unstressed spring body Ln 779.94 mm maximum spring length, inner loop to inner loop sn 595.94 mm Maximum spring deflection Fn 123.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 23.56 mm distance of inner edge of loop from the spring body R 0.194 N/mm Spring rate F0 7.9 N initial tension Fntol 7.28 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 56 degree (+/-) tolerance of loop position Weight 216.5693 g weight of one spring Price group #ZS - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-150AX Stainless steel Ø 2.5 x 34.5 x 184 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-150AX Stainless steel Ø 2.5 x 34.5 x 184 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-150AX Stainless steel Ø 2.5 x 34.5 x 184 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-150AX Stainless steel Ø 2.5 x 34.5 x 184 mm / 270° force-path-calculation Extension Spring RZ-150AX Inquiry formular Extension Spring RZ-150AX Stainless steel Ø 2.5 x 34.5 x 184 mm / 270° Inquiry formular Extension Spring RZ-150AX Similar extension springs to Extension Spring RZ-150AX Stainless steel Ø 2.5 x 34.5 x 184 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-150AX 1.4310 2.5 34.5 184 123.5 779.94 595.94 0.194 100.0 | 100.0 | 100.0 | 100.0 Z-150AX EN 10270-1 2.5 34.5 184 148.5 797.83 613.83 0.226 91.9 | 100.0 | 90.1 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-147E-24X 30 177 0.16 1.4310 104.3 808.3 631.3 86.5 | 90.4 | 89.4 | 79.7 RZ-150AX 34.5 184 0.194 1.4310 123.5 779.94 595.94 100.0 | 100.0 | 100.0 | 100.0 RZ-162E-14X 38 223 0.206 1.4310 158 955.6 732.6 87.8 | 87.5 | 79.8 | 96.1 RZ-150X 34.5 149 0.262 1.4310 123.5 589.72 440.72 84.9 | 93.7 | 87.0 | 74.0 RZ-162U-04X 40 197 0.299 1.4310 176.9 757.52 560.52 78.4 | 87.7 | 81.9 | 65.7 RZ-162E-13X 38 167 0.31 1.4310 158 654.4 487.4 78.1 | 90.3 | 80.0 | 63.9 RZ-162U-03X 40 179 0.343 1.4310 176.9 667.58 488.58 74.0 | 89.0 | 75.9 | 57.2 RZ-153CX 27.5 193 0.354 1.4310 153.7 596.06 403.06 73.3 | 91.7 | 74.0 | 54.3 RZ-165X 43.2 190 0.361 1.4310 197.7 711.99 521.99 71.6 | 84.9 | 75.0 | 54.7 RZ-153BX 27.5 173 0.407 1.4310 153.7 523.84 350.84 69.4 | 91.2 | 69.6 | 47.3 RZ-162U-02X 40 158 0.415 1.4310 176.9 562.65 404.65 67.1 | 85.2 | 68.9 | 47.4 RZ-162KX 30 210 0.447 1.4310 193.3 611.03 401.03 65.5 | 88.0 | 65.6 | 43.0 RZ-168BX 35.2 222 0.521 1.4310 240.9 655.79 433.79 61.9 | 86.3 | 62.0 | 37.3 RZ-162U-24X 32 206 0.541 1.4310 219.4 581.49 375.49 61.2 | 88.5 | 59.6 | 35.5 RZ-168AX 35.2 199 0.599 1.4310 240.9 576.3 377.3 59.8 | 89.5 | 57.3 | 32.5 RZ-162U-23X 32 185 0.622 1.4310 219.4 511.59 326.59 59.4 | 91.8 | 55.5 | 30.8 RZ-162JX 30 154 0.672 1.4310 193.3 420.8 266.8 56.5 | 86.6 | 54.3 | 28.6 Number of similar metal springs: 16 Customs tariff number: 73202085; Extension Spring RZ-150AX Country of origin: DE, German; Extension Spring RZ-150AX Product image - Extension Springs RZ-150AX QR-Code: Extension Spring RZ-150AX
