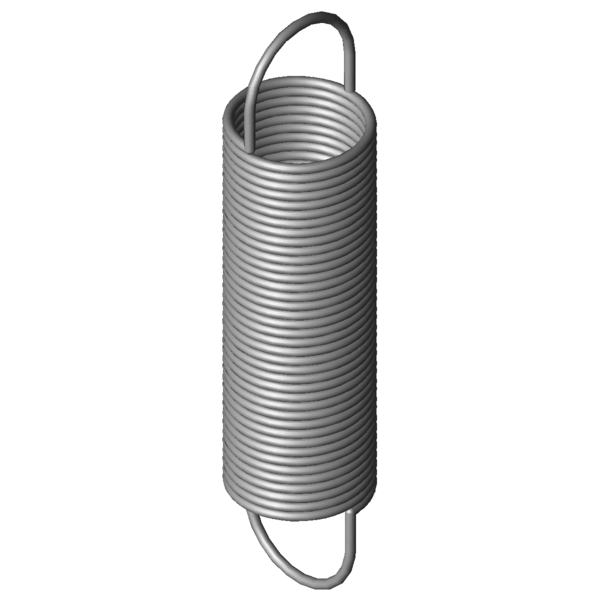

Home » Products » Extension Springs » rz-150x Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Extension Spring RZ-150X Stainless steel Ø 2.5 x 34.5 x 149 mm / 270° Scaled prices - Extension Spring RZ-150X Quantity Single price [EUR] 1 7.8500 EUR 2 4.9500 EUR 3 4.0000 EUR 7 3.4100 EUR 17 2.2200 EUR 37 1.7900 EUR 75 1.6600 EUR 125 1.6600 EUR 175 1.6600 EUR 250 1.6600 EUR 350 1.6600 EUR 450 1.6600 EUR Extension Spring Buy Product image Extension Spring RZ-150X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-150X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm prestressed spring deflection F2 - N loaded spring force L2 - mm loaded spring length s2 - mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.5 mm Wire diameter D - mm mean coil diameter De 34.5 mm outer coil diameter Dh 38.9 mm minimum bush diameter L0 149 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 101.88 mm length of unstressed spring body Ln - mm maximum spring length, inner loop to inner loop sn 440.72 mm Maximum spring deflection Fn 123.5 N Maximum spring force n - pc. Number of aktive coils nt - pc. total number of coils Lh 23.56 mm distance of inner edge of loop from the spring body R 0.262 N/mm Spring rate F0 7.9 N initial tension Fntol 7.6 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 48 degree (+/-) tolerance of loop position Weight 161.9412 g weight of one spring Price group #ZS - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-150X Stainless steel Ø 2.5 x 34.5 x 149 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-150X Stainless steel Ø 2.5 x 34.5 x 149 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-150X Stainless steel Ø 2.5 x 34.5 x 149 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-150X Stainless steel Ø 2.5 x 34.5 x 149 mm / 270° force-path-calculation Extension Spring RZ-150X Inquiry formular Extension Spring RZ-150X Stainless steel Ø 2.5 x 34.5 x 149 mm / 270° Inquiry formular Extension Spring RZ-150X Customs tariff number: 73202085; Extension Spring RZ-150X Country of origin: DE, German; Extension Spring RZ-150X Product image - Extension Springs RZ-150X QR-Code: Extension Spring RZ-150X
