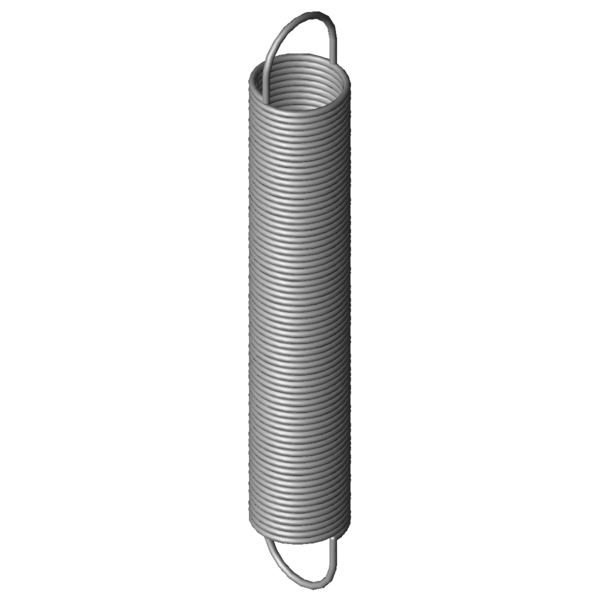

Home » Products » Extension Springs » rz-162u-07x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-162U-07X Stainless steel Ø 3 x 40 x 266 mm / 270° Scaled prices - Extension Spring RZ-162U-07X Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 3.9100 EUR 37 3.9100 EUR 75 3.9100 EUR 125 3.9100 EUR 175 3.9100 EUR 250 3.9100 EUR 350 3.9100 EUR Extension Spring Buy Product image Extension Spring RZ-162U-07X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-162U-07X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 45.1 mm minimum bush diameter L0 266 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 212.25 mm length of unstressed spring body Ln 1102.28 mm maximum spring length, inner loop to inner loop sn 836.28 mm Maximum spring deflection Fn 176.9 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 26.87 mm distance of inner edge of loop from the spring body R 0.201 N/mm Spring rate F0 9.2 N initial tension Fntol 9.93 N (+/-) tolerance of maximum spring force L0tol 4 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 62 degree (+/-) tolerance of loop position Weight 464.5245 g weight of one spring Price group ###AE - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-162U-07X Stainless steel Ø 3 x 40 x 266 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-162U-07X Stainless steel Ø 3 x 40 x 266 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-162U-07X Stainless steel Ø 3 x 40 x 266 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-162U-07X Stainless steel Ø 3 x 40 x 266 mm / 270° force-path-calculation Extension Spring RZ-162U-07X Inquiry formular Extension Spring RZ-162U-07X Stainless steel Ø 3 x 40 x 266 mm / 270° Inquiry formular Extension Spring RZ-162U-07X Similar extension springs to Extension Spring RZ-162U-07X Stainless steel Ø 3 x 40 x 266 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-162U-07X 1.4310 3 40 266 176.9 1102.28 836.28 0.201 100.0 | 100.0 | 100.0 | 100.0 Z-162U-07X EN 10270-1 3 40 266 214.2 1133.94 867.94 0.234 91.7 | 100.0 | 89.5 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-162U-07X 40 266 0.201 1.4310 176.9 1102.28 836.28 100.0 | 100.0 | 100.0 | 100.0 RZ-162E-14X 38 223 0.206 1.4310 158 955.6 732.6 92.4 | 90.7 | 88.5 | 98.1 RZ-162U-06X 40 242 0.227 1.4310 176.9 982.36 740.36 93.3 | 97.0 | 94.3 | 88.5 RZ-162U-05X 40 218 0.26 1.4310 176.9 862.45 644.45 86.5 | 94.0 | 88.5 | 77.1 RZ-165AX 43.2 234 0.267 1.4310 197.7 939.84 705.84 84.6 | 91.4 | 86.9 | 75.5 RZ-162U-04X 40 197 0.299 1.4310 176.9 757.52 560.52 80.6 | 91.4 | 83.5 | 67.0 RZ-162U-03X 40 179 0.343 1.4310 176.9 667.58 488.58 75.6 | 89.1 | 79.2 | 58.4 RZ-168EX 35.2 298 0.36 1.4310 240.9 925.48 627.48 73.2 | 90.3 | 74.2 | 55.1 RZ-165X 43.2 190 0.361 1.4310 197.7 711.99 521.99 72.6 | 85.9 | 75.9 | 55.9 RZ-168DX 35.2 273 0.401 1.4310 240.9 835.92 562.92 71.0 | 93.1 | 70.4 | 49.4 RZ-162U-26X 32 254 0.417 1.4310 219.4 741.22 487.22 69.4 | 91.8 | 69.4 | 47.0 RZ-168CX 35.2 247 0.453 1.4310 240.9 745.35 498.35 67.3 | 91.5 | 66.5 | 43.8 RZ-162U-25X 32 230 0.471 1.4310 219.4 661.38 431.38 65.5 | 88.8 | 66.1 | 41.6 RZ-177KX 40 272 0.51 1.4310 298 825.83 553.83 65.3 | 93.7 | 62.8 | 39.3 RZ-168BX 35.2 222 0.521 1.4310 240.9 655.79 433.79 63.0 | 88.4 | 62.7 | 38.1 RZ-183X 44 309 0.567 1.4310 366.5 921.03 612.03 60.0 | 84.0 | 60.7 | 35.3 Number of similar metal springs: 15 Customs tariff number: 73202085; Extension Spring RZ-162U-07X Country of origin: DE, German; Extension Spring RZ-162U-07X Product image - Extension Springs RZ-162U-07X QR-Code: Extension Spring RZ-162U-07X
