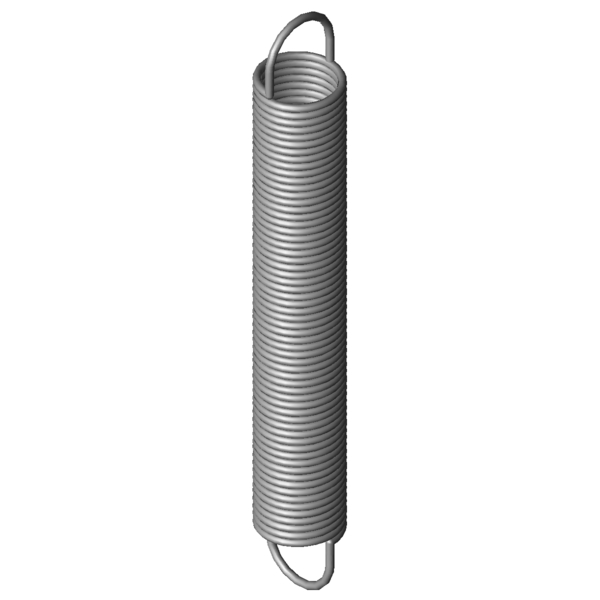

Home » Products » Extension Springs » rz-162u-25x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-162U-25X Stainless steel Ø 3 x 32 x 230 mm / 270° Scaled prices - Extension Spring RZ-162U-25X Quantity Single price [EUR] 1 12.7100 EUR 2 10.1200 EUR 3 5.6200 EUR 7 3.4700 EUR 17 3.4700 EUR 37 3.4700 EUR 75 3.4700 EUR 125 3.4700 EUR 175 3.4700 EUR 250 3.4700 EUR 350 3.4700 EUR Extension Spring Buy Product image Extension Spring RZ-162U-25X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-162U-25X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3 mm Wire diameter D mm mean coil diameter De 32 mm outer coil diameter Dh 37 mm minimum bush diameter L0 230 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 188.25 mm length of unstressed spring body Ln 661.38 mm maximum spring length, inner loop to inner loop sn 431.38 mm Maximum spring deflection Fn 219.4 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 20.87 mm distance of inner edge of loop from the spring body R 0.471 N/mm Spring rate F0 16.4 N initial tension Fntol 11.76 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.5 mm (+/-) tolerance of outer coil diameter Oesttol 50 degree (+/-) tolerance of loop position Weight 323.3498 g weight of one spring Price group ###AC - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-162U-25X Stainless steel Ø 3 x 32 x 230 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-162U-25X Stainless steel Ø 3 x 32 x 230 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-162U-25X Stainless steel Ø 3 x 32 x 230 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-162U-25X Stainless steel Ø 3 x 32 x 230 mm / 270° force-path-calculation Extension Spring RZ-162U-25X Inquiry formular Extension Spring RZ-162U-25X Stainless steel Ø 3 x 32 x 230 mm / 270° Inquiry formular Extension Spring RZ-162U-25X Similar extension springs to Extension Spring RZ-162U-25X Stainless steel Ø 3 x 32 x 230 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-162U-25X 1.4310 3 32 230 219.4 661.38 431.38 0.471 100.0 | 100.0 | 100.0 | 100.0 Z-162U-25X EN 10270-1 3 32 230 265.6 677.33 447.33 0.548 91.7 | 100.0 | 89.5 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-147E-24X 30 177 0.16 1.4310 104.3 808.3 631.3 57.3 | 81.3 | 57.9 | 32.5 RZ-150AX 34.5 184 0.194 1.4310 123.5 779.94 595.94 63.5 | 85.4 | 64.3 | 40.7 RZ-162E-14X 38 223 0.206 1.4310 158 955.6 732.6 66.5 | 91.5 | 65.4 | 42.4 RZ-153EX 27.5 234 0.281 1.4310 153.7 741.49 507.49 75.4 | 89.2 | 77.5 | 59.5 RZ-153DX 27.5 213 0.314 1.4310 153.7 668.28 455.28 78.7 | 87.3 | 82.4 | 66.4 RZ-168DX 35.2 273 0.401 1.4310 240.9 835.92 562.92 85.9 | 89.6 | 83.9 | 84.1 RZ-162U-26X 32 254 0.417 1.4310 219.4 741.22 487.22 93.2 | 96.9 | 94.3 | 88.5 RZ-162KX 30 210 0.447 1.4310 193.3 611.03 401.03 92.7 | 92.8 | 90.5 | 94.8 RZ-168CX 35.2 247 0.453 1.4310 240.9 745.35 498.35 92.2 | 92.6 | 88.8 | 95.0 RZ-162U-25X 32 230 0.471 1.4310 219.4 661.38 431.38 100.0 | 100.0 | 100.0 | 100.0 RZ-168BX 35.2 222 0.521 1.4310 240.9 655.79 433.79 93.5 | 93.7 | 95.3 | 91.6 RZ-162U-24X 32 206 0.541 1.4310 219.4 581.49 375.49 92.4 | 96.5 | 93.5 | 87.0 RZ-168AX 35.2 199 0.599 1.4310 240.9 576.3 377.3 86.4 | 90.4 | 89.3 | 79.7 RZ-162U-23X 32 185 0.622 1.4310 219.4 511.59 326.59 85.7 | 93.5 | 87.9 | 75.7 RZ-162U-22X 32 167 0.713 1.4310 219.4 451.68 284.68 80.0 | 90.9 | 83.0 | 66.0 RZ-162K-04X 25 227 0.715 1.4310 229.9 524.43 297.43 79.3 | 90.1 | 82.2 | 65.8 RZ-171DX 28.2 262 0.842 1.4310 297.5 593.07 331.07 73.9 | 89.9 | 75.2 | 56.6 RZ-171CX 28.2 236 0.951 1.4310 297.5 529.1 293.1 71.4 | 93.1 | 70.8 | 50.1 RZ-171BX 28.2 210 1.092 1.4310 297.5 465.13 255.13 67.0 | 91.1 | 66.4 | 43.6 RZ-162U-36X 24 241 1.097 1.4310 287.9 483.39 242.39 66.4 | 90.1 | 66.2 | 42.8 RZ-177K-04X 32 230 1.24 1.4310 368.5 504.52 274.52 64.6 | 94.4 | 61.6 | 37.9 RZ-190X 36 264 1.272 1.4310 443.6 591.23 327.23 61.3 | 83.7 | 62.7 | 37.5 RZ-177K-03X 32 205 1.434 1.4310 368.5 442.39 237.39 60.3 | 90.8 | 57.3 | 32.8 RZ-189X 36 236 1.462 1.4310 443.6 520.62 284.62 59.2 | 87.1 | 57.7 | 32.6 RZ-188X 36 212 1.678 1.4310 443.6 460.09 248.09 55.8 | 85.4 | 53.5 | 28.4 Number of similar metal springs: 24 Customs tariff number: 73202085; Extension Spring RZ-162U-25X Country of origin: DE, German; Extension Spring RZ-162U-25X Product image - Extension Springs RZ-162U-25X QR-Code: Extension Spring RZ-162U-25X
