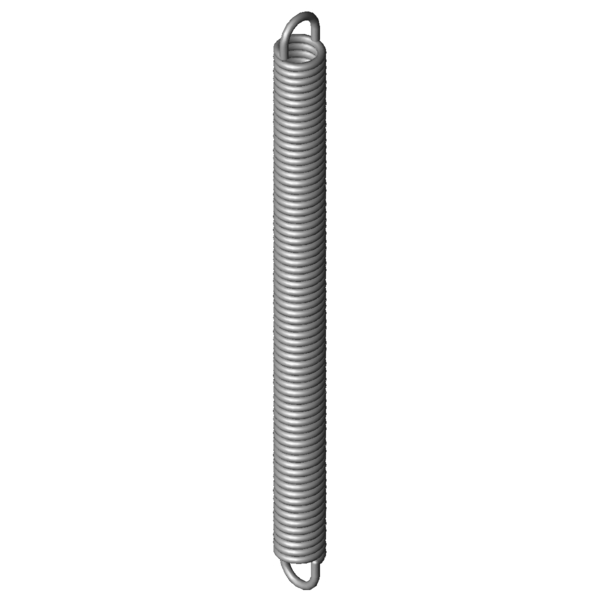

Home » Products » Extension Springs » rz-177dx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-177DX Stainless steel Ø 3.2 x 19.2 x 247 mm / 270° Scaled prices - Extension Spring RZ-177DX Quantity Single price [EUR] 1 8.4900 EUR 2 5.3500 EUR 3 4.3300 EUR 7 3.7000 EUR 17 3.7000 EUR 37 3.7000 EUR 75 3.7000 EUR 125 3.7000 EUR 175 3.7000 EUR 250 3.7000 EUR 350 3.7000 EUR 450 3.7000 EUR Extension Spring Buy Product image Extension Spring RZ-177DX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-177DX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 19.2 mm outer coil diameter Dh 24.3 mm minimum bush diameter L0 247 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 226.4 mm length of unstressed spring body Ln 367.37 mm maximum spring length, inner loop to inner loop sn 120.37 mm Maximum spring deflection Fn 422.9 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 10.3 mm distance of inner edge of loop from the spring body R 3.211 N/mm Spring rate F0 36.4 N initial tension Fntol 34.45 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 45 degree (+/-) tolerance of loop position Weight 228.5516 g weight of one spring Price group ###ZW - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-177DX Stainless steel Ø 3.2 x 19.2 x 247 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-177DX Stainless steel Ø 3.2 x 19.2 x 247 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-177DX Stainless steel Ø 3.2 x 19.2 x 247 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-177DX Stainless steel Ø 3.2 x 19.2 x 247 mm / 270° force-path-calculation Extension Spring RZ-177DX Inquiry formular Extension Spring RZ-177DX Stainless steel Ø 3.2 x 19.2 x 247 mm / 270° Inquiry formular Extension Spring RZ-177DX Similar extension springs to Extension Spring RZ-177DX Stainless steel Ø 3.2 x 19.2 x 247 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-177DX 1.4310 3.2 19.2 247 422.9 367.37 120.37 3.211 100.0 | 100.0 | 100.0 | 100.0 Z-177DX EN 10270-1 3.2 19.2 247 510 371.24 124.24 3.739 91.8 | 100.0 | 89.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-162U-36X 24 241 1.097 1.4310 287.9 483.39 242.39 61.0 | 90.4 | 58.9 | 33.8 RZ-159DX 18.5 199 1.196 1.4310 223.4 370.69 171.69 61.2 | 85.0 | 61.5 | 37.0 RZ-162U-35X 24 217 1.239 1.4310 287.9 431.59 214.59 62.5 | 87.2 | 62.1 | 38.2 RZ-159CX 18.5 179 1.351 1.4310 223.4 331 152 63.4 | 82.3 | 66.0 | 41.8 RZ-174EX 23.2 279 1.475 1.4310 356.7 504.35 225.35 68.1 | 90.4 | 68.9 | 45.1 RZ-174DX 23.2 254 1.644 1.4310 356.7 456.17 202.17 71.8 | 93.3 | 71.9 | 50.2 RZ-162P-01X 20 202 1.684 1.4310 282.9 356.93 154.93 70.9 | 88.4 | 72.3 | 52.0 RZ-162PX 20 194 1.769 1.4310 282.9 341.53 147.53 72.1 | 87.3 | 74.2 | 54.6 RZ-174CX 23.2 228 1.857 1.4310 356.7 406.98 178.98 74.7 | 91.7 | 75.8 | 56.7 RZ-162O-02X 20 171 2.042 1.4310 282.9 298.77 127.77 75.9 | 84.2 | 80.6 | 63.0 RZ-162EX 15 213 2.228 1.4310 269.8 323.6 110.6 76.0 | 80.8 | 77.8 | 69.4 RZ-177PX 25 248 2.51 1.4310 463.3 420.91 172.91 81.7 | 88.4 | 80.4 | 76.3 RZ-177EX 19.2 273 2.881 1.4310 422.9 407.17 134.17 93.8 | 96.8 | 94.9 | 89.7 RZ-162U-46X 18 231.5 3.011 1.4310 373.9 344.07 112.57 93.1 | 93.7 | 91.0 | 94.5 RZ-177DX 19.2 247 3.211 1.4310 422.9 367.37 120.37 100.0 | 100.0 | 100.0 | 100.0 RZ-162U-45X 18 207.5 3.401 1.4310 373.9 307.16 99.66 89.9 | 90.5 | 85.6 | 93.6 RZ-177CX 19.2 221 3.628 1.4310 422.9 327.56 106.56 93.1 | 96.5 | 94.3 | 88.5 RZ-162U-44X 18 183.5 3.907 1.4310 373.9 270.25 86.75 83.0 | 87.3 | 80.2 | 81.5 RZ-177BX 19.2 196 4.167 1.4310 422.9 288.76 92.76 86.2 | 93.1 | 88.5 | 77.1 RZ-177AX 19.2 174 4.791 1.4310 422.9 254.68 80.68 80.2 | 90.1 | 83.5 | 67.0 RZ-206X 24 245 5.209 1.4310 643.3 357.95 112.95 76.0 | 86.4 | 79.8 | 61.7 RZ-205X 24 217 5.989 1.4310 643.3 315.24 98.24 70.0 | 82.6 | 73.7 | 53.7 RZ-177UX 18 237 8.237 1.4310 617.1 304.96 67.96 64.7 | 92.9 | 62.5 | 38.7 Number of similar metal springs: 22 Customs tariff number: 73202085; Extension Spring RZ-177DX Country of origin: DE, German; Extension Spring RZ-177DX Product image - Extension Springs RZ-177DX QR-Code: Extension Spring RZ-177DX
