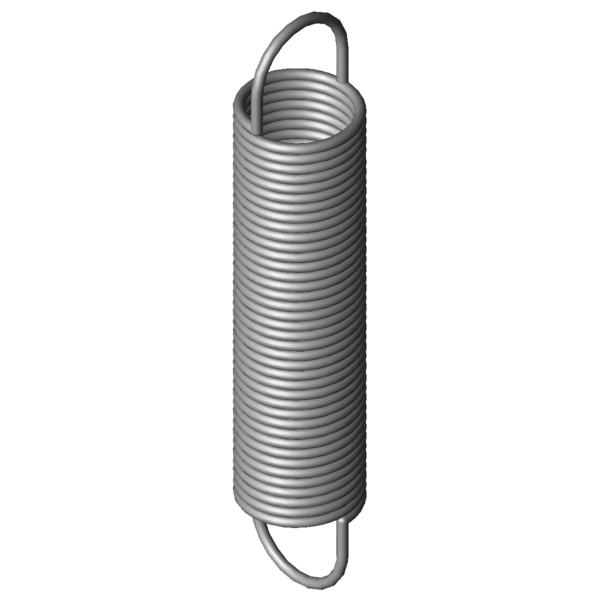

Home » Products » Extension Springs » rz-177jx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-177JX Stainless steel Ø 3.6 x 40 x 200 mm / 270° Scaled prices - Extension Spring RZ-177JX Quantity Single price [EUR] 1 14.4000 EUR 2 11.4700 EUR 3 7.0900 EUR 7 5.2300 EUR 17 5.2300 EUR 37 5.2300 EUR 75 5.2300 EUR 125 5.2300 EUR 175 5.2300 EUR 250 5.2300 EUR 350 5.2300 EUR Extension Spring Buy Product image Extension Spring RZ-177JX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-177JX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.6 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 46 mm minimum bush diameter L0 200 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 146.7 mm length of unstressed spring body Ln 568.45 mm maximum spring length, inner loop to inner loop sn 368.45 mm Maximum spring deflection Fn 298 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 26.65 mm distance of inner edge of loop from the spring body R 0.767 N/mm Spring rate F0 15.6 N initial tension Fntol 16.44 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 41 degree (+/-) tolerance of loop position Weight 381.9555 g weight of one spring Price group ###AK - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-177JX Stainless steel Ø 3.6 x 40 x 200 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-177JX Stainless steel Ø 3.6 x 40 x 200 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-177JX Stainless steel Ø 3.6 x 40 x 200 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-177JX Stainless steel Ø 3.6 x 40 x 200 mm / 270° force-path-calculation Extension Spring RZ-177JX Inquiry formular Extension Spring RZ-177JX Stainless steel Ø 3.6 x 40 x 200 mm / 270° Inquiry formular Extension Spring RZ-177JX Similar extension springs to Extension Spring RZ-177JX Stainless steel Ø 3.6 x 40 x 200 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-177JX 1.4310 3.6 40 200 298 568.45 368.45 0.767 100.0 | 100.0 | 100.0 | 100.0 Z-177JX EN 10270-1 3.6 40 200 357.1 578.17 378.17 0.893 92.0 | 100.0 | 90.4 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-162U-04X 40 197 0.299 1.4310 176.9 757.52 560.52 65.2 | 93.9 | 62.5 | 39.0 RZ-162E-13X 38 167 0.31 1.4310 158 654.4 487.4 63.3 | 85.4 | 64.3 | 40.1 RZ-162U-03X 40 179 0.343 1.4310 176.9 667.58 488.58 67.7 | 90.9 | 67.4 | 44.8 RZ-153CX 27.5 193 0.354 1.4310 153.7 596.06 403.06 65.6 | 78.2 | 71.5 | 47.1 RZ-165X 43.2 190 0.361 1.4310 197.7 711.99 521.99 69.2 | 92.2 | 68.5 | 46.8 RZ-162U-02X 40 158 0.415 1.4310 176.9 562.65 404.65 72.2 | 87.4 | 75.2 | 54.1 RZ-162KX 30 210 0.447 1.4310 193.3 611.03 401.03 73.5 | 82.7 | 78.4 | 59.6 RZ-162U-01X 40 140 0.504 1.4310 176.9 472.71 332.71 75.0 | 84.4 | 74.8 | 65.7 RZ-168BX 35.2 222 0.521 1.4310 240.9 655.79 433.79 80.2 | 89.0 | 82.9 | 68.7 RZ-162U-24X 32 206 0.541 1.4310 219.4 581.49 375.49 81.6 | 86.8 | 85.9 | 72.2 RZ-168AX 35.2 199 0.599 1.4310 240.9 576.3 377.3 86.8 | 92.1 | 89.2 | 78.9 RZ-162U-23X 32 185 0.622 1.4310 219.4 511.59 326.59 83.2 | 85.3 | 81.1 | 83.1 RZ-168X 35.2 177 0.704 1.4310 240.9 497.8 320.8 88.4 | 88.5 | 84.0 | 92.8 RZ-181X 44 249 0.749 1.4310 366.5 712.43 463.43 88.4 | 87.1 | 80.4 | 97.8 RZ-177JX 40 200 0.767 1.4310 298 568.45 368.45 100.0 | 100.0 | 100.0 | 100.0 RZ-180X 44 225 0.859 1.4310 366.5 628.95 403.95 88.4 | 89.9 | 86.3 | 89.1 RZ-171BX 28.2 210 1.092 1.4310 297.5 465.13 255.13 79.6 | 84.9 | 84.5 | 69.4 RZ-177HX 40 146 1.231 1.4310 298 375.41 229.41 78.1 | 91.0 | 81.1 | 62.3 RZ-179X 44 173 1.261 1.4310 366.5 448.09 275.09 75.9 | 89.1 | 78.0 | 60.7 RZ-177K-03X 32 205 1.434 1.4310 368.5 442.39 237.39 72.4 | 92.5 | 72.6 | 52.1 RZ-189X 36 236 1.462 1.4310 443.6 520.62 284.62 70.8 | 88.2 | 72.2 | 51.9 RZ-188X 36 212 1.678 1.4310 443.6 460.09 248.09 68.0 | 91.4 | 67.3 | 45.2 RZ-177K-02X 32 179 1.7 1.4310 368.5 379.26 200.26 67.1 | 89.8 | 67.6 | 44.0 RZ-187X 36 160 2.463 1.4310 443.6 328.94 168.94 58.0 | 86.7 | 56.5 | 30.8 RZ-196X 29 201 3.518 1.4310 542.5 345.23 144.23 52.0 | 87.3 | 47.0 | 21.5 Number of similar metal springs: 24 Customs tariff number: 73202085; Extension Spring RZ-177JX Country of origin: DE, German; Extension Spring RZ-177JX Product image - Extension Springs RZ-177JX QR-Code: Extension Spring RZ-177JX
