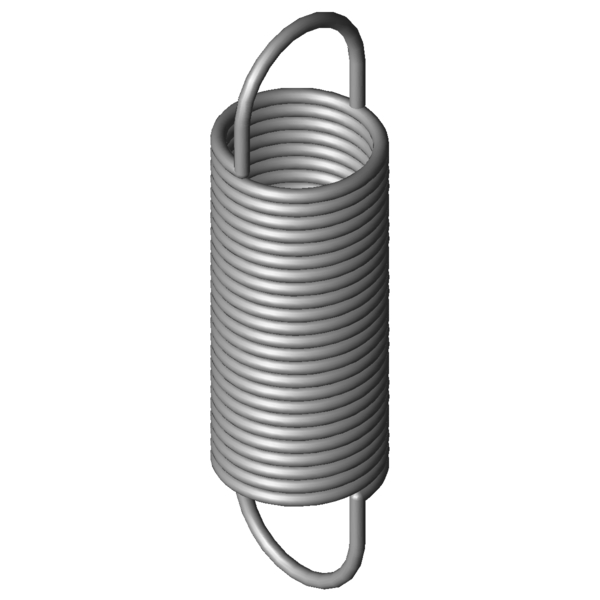

Home » Products » Extension Springs » rz-177hx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-177HX Stainless steel Ø 3.6 x 40 x 146 mm / 270° Scaled prices - Extension Spring RZ-177HX Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 4.2800 EUR 37 4.2800 EUR 75 4.2800 EUR 125 4.2800 EUR 175 4.2800 EUR 250 4.2800 EUR 350 4.2800 EUR Extension Spring Buy Product image Extension Spring RZ-177HX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-177HX Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.6 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 46 mm minimum bush diameter L0 146 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 92.7 mm length of unstressed spring body Ln 375.41 mm maximum spring length, inner loop to inner loop sn 229.41 mm Maximum spring deflection Fn 298 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 26.65 mm distance of inner edge of loop from the spring body R 1.231 N/mm Spring rate F0 15.6 N initial tension Fntol 17.8 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 32 degree (+/-) tolerance of loop position Weight 243.8993 g weight of one spring Price group ###AG - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-177HX Stainless steel Ø 3.6 x 40 x 146 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-177HX Stainless steel Ø 3.6 x 40 x 146 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-177HX Stainless steel Ø 3.6 x 40 x 146 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-177HX Stainless steel Ø 3.6 x 40 x 146 mm / 270° force-path-calculation Extension Spring RZ-177HX Inquiry formular Extension Spring RZ-177HX Stainless steel Ø 3.6 x 40 x 146 mm / 270° Inquiry formular Extension Spring RZ-177HX Similar extension springs to Extension Spring RZ-177HX Stainless steel Ø 3.6 x 40 x 146 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-177HX 1.4310 3.6 40 146 298 375.41 229.41 1.231 100.0 | 100.0 | 100.0 | 100.0 Z-177HX EN 10270-1 3.6 40 146 357.1 381.46 235.46 1.434 92.0 | 100.0 | 90.4 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-149X 34.5 112 0.421 1.4310 123.5 386.41 274.41 58.2 | 77.5 | 62.5 | 34.6 RZ-162E-12X 38 126 0.498 1.4310 158 429.5 303.5 63.6 | 86.4 | 64.3 | 40.1 RZ-162U-01X 40 140 0.504 1.4310 176.9 472.71 332.71 66.1 | 93.1 | 64.2 | 40.9 RZ-153X 27.5 138 0.55 1.4310 153.7 397.46 259.46 64.4 | 77.6 | 70.0 | 45.6 RZ-164X 43.2 142 0.579 1.4310 197.7 467.01 325.01 69.4 | 92.9 | 68.5 | 46.8 RZ-162JX 30 154 0.672 1.4310 193.3 420.8 266.8 71.2 | 82.5 | 75.4 | 55.8 RZ-168X 35.2 177 0.704 1.4310 240.9 497.8 320.8 73.5 | 86.5 | 76.2 | 57.8 RZ-162U-22X 32 167 0.713 1.4310 219.4 451.68 284.68 73.3 | 83.6 | 77.1 | 59.3 RZ-177JX 40 200 0.767 1.4310 298 568.45 368.45 78.1 | 91.0 | 81.1 | 62.3 RZ-162E-11X 38 100.5 0.783 1.4310 158 293.6 193.1 70.7 | 80.5 | 68.6 | 63.0 RZ-162U-21X 32 146 0.861 1.4310 219.4 381.77 235.77 81.6 | 87.8 | 85.5 | 71.6 RZ-162U-10X 40 101 0.949 1.4310 176.9 277.8 176.8 76.5 | 84.2 | 68.2 | 77.0 RZ-162U-20X 32 128 1.047 1.4310 219.4 321.86 193.86 83.3 | 83.7 | 79.1 | 87.1 RZ-167X 35.2 129 1.131 1.4310 240.9 328.74 199.74 88.4 | 88.4 | 84.0 | 92.8 RZ-177HX 40 146 1.231 1.4310 298 375.41 229.41 100.0 | 100.0 | 100.0 | 100.0 RZ-179X 44 173 1.261 1.4310 366.5 448.09 275.09 89.4 | 88.4 | 82.4 | 97.5 RZ-178AX 44 145 1.687 1.4310 366.5 350.7 205.7 83.9 | 93.4 | 85.5 | 72.9 RZ-177GX 40 114 1.935 1.4310 298 259.99 145.99 79.4 | 92.7 | 81.8 | 63.6 RZ-177K-01X 32 154 2.086 1.4310 368.5 317.12 163.12 75.0 | 91.6 | 76.0 | 57.5 RZ-187X 36 160 2.463 1.4310 443.6 328.94 168.94 70.1 | 90.4 | 70.4 | 49.5 RZ-178X 44 117 2.545 1.4310 366.5 253.3 136.3 68.6 | 87.0 | 70.4 | 48.3 RZ-177FX 40 92.1 3.125 1.4310 298 182.47 90.37 65.6 | 87.7 | 69.7 | 39.4 RZ-186AX 36 132 3.294 1.4310 443.6 258.3 126.3 62.7 | 90.1 | 61.1 | 37.0 RZ-195X 29 149 5.166 1.4310 542.5 247.22 98.22 53.1 | 86.8 | 48.9 | 23.5 Number of similar metal springs: 23 Customs tariff number: 73202085; Extension Spring RZ-177HX Country of origin: DE, German; Extension Spring RZ-177HX Product image - Extension Springs RZ-177HX QR-Code: Extension Spring RZ-177HX
