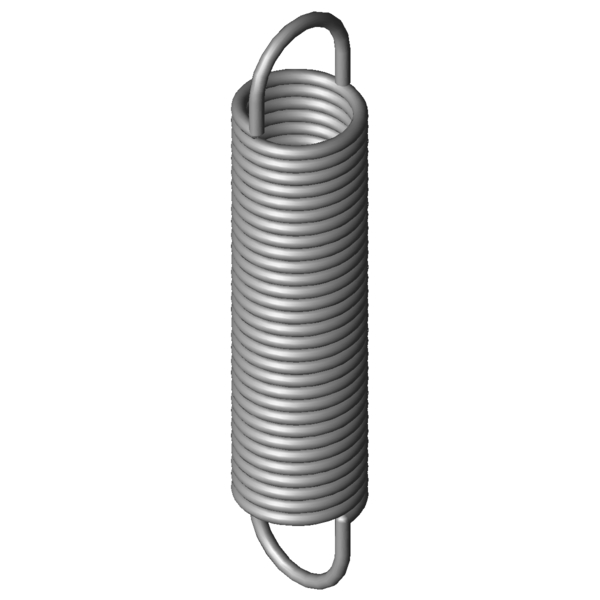

Home » Products » Extension Springs » rz-177k-01x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-177K-01X Stainless steel Ø 3.6 x 32 x 154 mm / 270° Scaled prices - Extension Spring RZ-177K-01X Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 4.2800 EUR 37 4.2800 EUR 75 4.2800 EUR 125 4.2800 EUR 175 4.2800 EUR 250 4.2800 EUR 350 4.2800 EUR Extension Spring Buy Product image Extension Spring RZ-177K-01X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-177K-01X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.6 mm Wire diameter D mm mean coil diameter De 32 mm outer coil diameter Dh 37.8 mm minimum bush diameter L0 154 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 114.3 mm length of unstressed spring body Ln 317.12 mm maximum spring length, inner loop to inner loop sn 163.12 mm Maximum spring deflection Fn 368.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 19.85 mm distance of inner edge of loop from the spring body R 2.086 N/mm Spring rate F0 28.2 N initial tension Fntol 22.1 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.4 mm (+/-) tolerance of outer coil diameter Oesttol 32 degree (+/-) tolerance of loop position Weight 233.3807 g weight of one spring Price group ###AG - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-177K-01X Stainless steel Ø 3.6 x 32 x 154 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-177K-01X Stainless steel Ø 3.6 x 32 x 154 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-177K-01X Stainless steel Ø 3.6 x 32 x 154 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-177K-01X Stainless steel Ø 3.6 x 32 x 154 mm / 270° force-path-calculation Extension Spring RZ-177K-01X Inquiry formular Extension Spring RZ-177K-01X Stainless steel Ø 3.6 x 32 x 154 mm / 270° Inquiry formular Extension Spring RZ-177K-01X Similar extension springs to Extension Spring RZ-177K-01X Stainless steel Ø 3.6 x 32 x 154 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-177K-01X 1.4310 3.6 32 154 368.5 317.12 163.12 2.086 100.0 | 100.0 | 100.0 | 100.0 Z-177K-01X EN 10270-1 3.6 32 154 441.6 321.25 167.25 2.429 92.0 | 100.0 | 90.5 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-153X 27.5 138 0.55 1.4310 153.7 397.46 259.46 53.4 | 81.7 | 52.3 | 26.2 RZ-162U-23X 32 185 0.622 1.4310 219.4 511.59 326.59 57.8 | 88.9 | 54.7 | 29.7 RZ-162JX 30 154 0.672 1.4310 193.3 420.8 266.8 59.8 | 90.5 | 56.8 | 32.1 RZ-168X 35.2 177 0.704 1.4310 240.9 497.8 320.8 60.1 | 88.9 | 58.1 | 33.2 RZ-162U-22X 32 167 0.713 1.4310 219.4 451.68 284.68 61.5 | 91.8 | 58.4 | 34.1 RZ-162U-21X 32 146 0.861 1.4310 219.4 381.77 235.77 66.1 | 92.7 | 64.4 | 41.2 RZ-162U-20X 32 128 1.047 1.4310 219.4 321.86 193.86 70.3 | 88.8 | 71.8 | 50.1 RZ-167X 35.2 129 1.131 1.4310 240.9 328.74 199.74 71.6 | 87.9 | 73.5 | 53.4 RZ-177HX 40 146 1.231 1.4310 298 375.41 229.41 75.0 | 91.6 | 76.0 | 57.5 RZ-162K-01X 25 143 1.269 1.4310 229.9 310.64 167.64 74.5 | 82.9 | 79.8 | 60.7 RZ-162U-19X 32 108 1.4 1.4310 219.4 252.9 144.9 75.2 | 84.5 | 74.2 | 67.0 RZ-171X 28.2 166 1.477 1.4310 297.5 354.67 188.67 81.1 | 89.9 | 83.6 | 69.8 RZ-177K-02X 32 179 1.7 1.4310 368.5 379.26 200.26 89.2 | 95.3 | 90.7 | 81.5 RZ-162U-32X 24 154 1.878 1.4310 287.9 295.61 141.61 86.2 | 86.1 | 82.5 | 90.0 RZ-177K-01X 32 154 2.086 1.4310 368.5 317.12 163.12 100.0 | 100.0 | 100.0 | 100.0 RZ-187X 36 160 2.463 1.4310 443.6 328.94 168.94 89.2 | 91.7 | 89.8 | 86.0 RZ-174X 23.2 158 2.885 1.4310 356.7 273.21 115.21 81.0 | 86.3 | 83.7 | 73.0 RZ-177K-11X 32 118 3.092 1.4310 368.5 228.1 110.1 81.2 | 92.2 | 83.7 | 67.5 RZ-186AX 36 132 3.294 1.4310 443.6 258.3 126.3 77.6 | 88.2 | 80.2 | 64.3 RZ-195X 29 149 5.166 1.4310 542.5 247.22 98.22 65.8 | 92.5 | 64.1 | 40.9 RZ-194AX 29 121 6.909 1.4310 542.5 194.4 73.4 57.8 | 86.4 | 56.5 | 30.6 Number of similar metal springs: 20 Customs tariff number: 73202085; Extension Spring RZ-177K-01X Country of origin: DE, German; Extension Spring RZ-177K-01X Product image - Extension Springs RZ-177K-01X QR-Code: Extension Spring RZ-177K-01X
