Extension Spring RZ-162U-19X Stainless steel Ø 3 x 32 x 108 mm / 270°

Scaled prices - Extension Spring RZ-162U-19X

Quantity Single price [EUR]
1 7.5200 EUR
2 4.7400 EUR
3 3.7800 EUR
7 3.2200 EUR
17 3.2200 EUR
37 3.2200 EUR
75 3.2200 EUR
125 3.2200 EUR
175 3.2200 EUR
250 3.2200 EUR
350 3.2200 EUR
450 3.2200 EUR

Extension Spring Buy

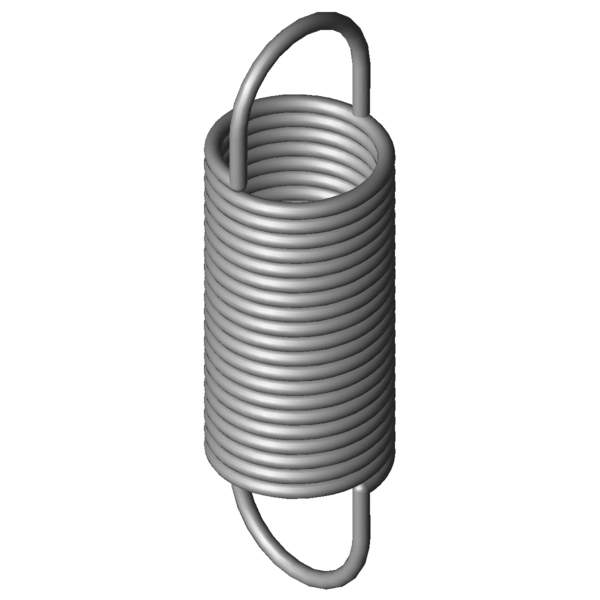

Product image Extension Spring RZ-162U-19X
Product image Extension Spring RZ-162U-19X
Quantity: Add to shopping cart

Technical Data - Extension Spring RZ-162U-19X

Formula symbols Value Unit Description
Material 1.4310 - type of material
Eylet shape 1/1 deutsche - Eylet shape
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm prestressed spring deflection
F2 N loaded spring force
L2 mm loaded spring length
s2 mm loaded spring deflection
Eyelet position 270 ° Eyelet position
d 3 mm Wire diameter
D mm mean coil diameter
De 32 mm outer coil diameter
Dh 37 mm minimum bush diameter
L0 108 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk 65.25 mm length of unstressed spring body
Ln 252.9 mm maximum spring length, inner loop to inner loop
sn 144.9 mm Maximum spring deflection
Fn 219.4 N Maximum spring force
n pc. Number of aktive coils
nt pc. total number of coils
Lh 21.38 mm distance of inner edge of loop from the spring body
R 1.4 N/mm Spring rate
F0 16.4 N initial tension
Fntol 13.4 N (+/-) tolerance of maximum spring force
L0tol 2.4 mm (+/-) tolerance of unstressed length
Detol 0.5 mm (+/-) tolerance of outer coil diameter
Oesttol 28 degree (+/-) tolerance of loop position
Weight 114.5727 g weight of one spring
Price group ###ZQ - price group
Technical drawing Extension Spring
Technical drawing Extension Spring

Datasheet Extension Spring RZ-162U-19X Stainless steel Ø 3 x 32 x 108 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring RZ-162U-19X Stainless steel Ø 3 x 32 x 108 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring RZ-162U-19X Stainless steel Ø 3 x 32 x 108 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring RZ-162U-19X Stainless steel Ø 3 x 32 x 108 mm / 270°

force-path-calculation Extension Spring RZ-162U-19X

Inquiry formular Extension Spring RZ-162U-19X Stainless steel Ø 3 x 32 x 108 mm / 270°

Inquiry formular Extension Spring RZ-162U-19X

Similar extension springs to Extension Spring RZ-162U-19X Stainless steel Ø 3 x 32 x 108 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness
RZ-162U-19X 1.4310 3 32 108 219.4 252.9 144.9 1.4 100.0 | 100.0 | 100.0 | 100.0
Z-162U-19X EN 10270-1 3 32 108 265.6 258.3 150.3 1.63 91.7 | 100.0 | 89.5 | 85.7
Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority
article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %
Overall | Geometrie | Load | Stiffness
RZ-130E-13X 24 107.5 0.211 1.4310 73.5 438 330.5 43.8 | 78.2 | 38.7 | 14.7
RZ-133X 27 118 0.225 1.4310 84.86 470.1 352.1 45.6 | 80.9 | 39.9 | 15.9
RZ-147E-23X 30 133 0.24 1.4310 104.3 553 420 46.7 | 82.8 | 41.0 | 16.4
RZ-147E-22X 30 102 0.385 1.4310 104.3 363.5 261.5 55.0 | 87.2 | 51.5 | 26.3
RZ-149X 34.5 112 0.421 1.4310 123.5 386.41 274.41 58.4 | 90.8 | 54.5 | 29.7
RZ-136X 22 110 0.44 1.4310 103.4 328.75 218.75 55.3 | 77.9 | 56.7 | 31.2
RZ-147E-21X 30 82.3 0.606 1.4310 104.3 248.7 166.4 63.3 | 81.1 | 67.3 | 41.4
RZ-162E-11X 38 100.5 0.783 1.4310 158 293.6 193.1 72.6 | 90.2 | 73.5 | 54.0
RZ-152X 27.5 101 0.884 1.4310 153.7 262.55 161.55 76.8 | 87.6 | 79.9 | 62.8
RZ-148X 34.5 79.7 0.888 1.4310 123.5 209.97 130.27 73.0 | 83.3 | 73.1 | 62.6
RZ-162U-10X 40 101 0.949 1.4310 176.9 277.8 176.8 79.5 | 91.2 | 81.3 | 66.1
RZ-162U-20X 32 128 1.047 1.4310 219.4 321.86 193.86 85.6 | 94.8 | 87.4 | 74.7
RZ-162HX 30 112 1.08 1.4310 193.3 278.12 166.12 86.3 | 94.5 | 87.7 | 76.8
RZ-167X 35.2 129 1.131 1.4310 240.9 328.74 199.74 83.6 | 89.5 | 81.8 | 79.7
RZ-162U-19X 32 108 1.4 1.4310 219.4 252.9 144.9 100.0 | 100.0 | 100.0 | 100.0
RZ-162GX 30 86.6 1.697 1.4310 193.3 192.31 105.71 84.1 | 89.1 | 80.5 | 82.8
RZ-177GX 40 114 1.935 1.4310 298 259.99 145.99 82.2 | 86.0 | 86.4 | 74.2
RZ-162K-21X 25 104 1.986 1.4310 229.9 211.1 107.1 81.5 | 89.3 | 84.7 | 70.5
RZ-166AX 35.2 90.8 2.196 1.4310 240.9 193.7 102.9 78.4 | 89.6 | 81.0 | 64.7
RZ-162U-18X 32 83.5 2.279 1.4310 219.4 172.6 89.1 78.2 | 92.4 | 80.7 | 61.5
RZ-170X 28.2 118 2.373 1.4310 297.5 235.48 117.48 76.1 | 91.1 | 77.4 | 59.8
RZ-166X 35.2 87.6 2.383 1.4310 240.9 182.43 94.83 75.5 | 88.6 | 78.3 | 59.6
RZ-162U-30X 24 115 2.758 1.4310 287.9 211.43 96.43 70.6 | 89.6 | 71.4 | 50.7
RZ-177K-11X 32 118 3.092 1.4310 368.5 228.1 110.1 68.2 | 91.6 | 67.8 | 45.2
RZ-186AX 36 132 3.294 1.4310 443.6 258.3 126.3 64.4 | 81.9 | 68.3 | 43.1
RZ-173X 23.2 110 4.634 1.4310 356.7 181.74 71.74 58.0 | 88.1 | 55.5 | 30.5
RZ-186X 36 104 4.972 1.4310 443.6 187.71 83.71 56.3 | 86.7 | 53.6 | 28.6
RZ-177K-10X 32 89 5.032 1.4310 368.5 156.6 67.6 56.5 | 88.6 | 53.1 | 27.8
RZ-194AX 29 121 6.909 1.4310 542.5 194.4 73.4 50.3 | 85.0 | 45.5 | 20.5
RZ-194X 29 93.6 10.426 1.4310 542.5 142.27 48.67 44.9 | 84.1 | 37.0 | 13.6
Number of similar metal springs: 29

Customs tariff number: 73202085; Extension Spring RZ-162U-19X

Country of origin: DE, German; Extension Spring RZ-162U-19X
