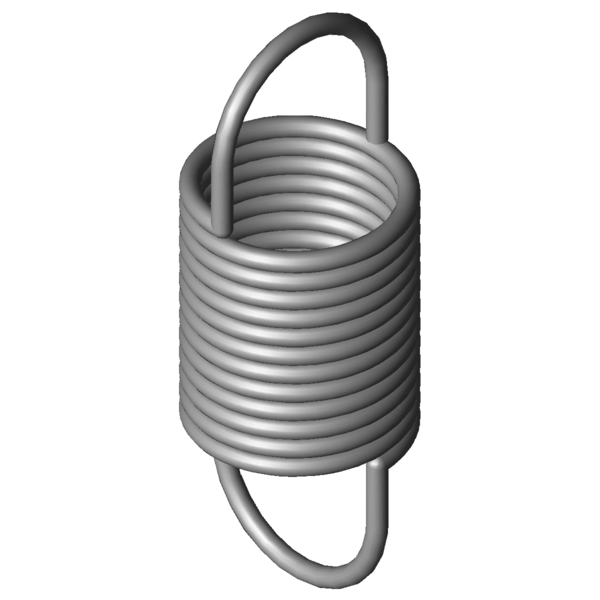

Home » Products » Extension Springs » rz-162u-18x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-162U-18X Stainless steel Ø 3 x 32 x 83.5 mm / 270° Scaled prices - Extension Spring RZ-162U-18X Quantity Single price [EUR] 1 7.3900 EUR 2 4.6600 EUR 3 3.7300 EUR 7 3.1800 EUR 17 3.1800 EUR 37 3.1800 EUR 75 3.1800 EUR 125 3.1800 EUR 175 3.1800 EUR 250 3.1800 EUR 350 3.1800 EUR 450 3.1800 EUR Extension Spring Buy Product image Extension Spring RZ-162U-18X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-162U-18X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3 mm Wire diameter D mm mean coil diameter De 32 mm outer coil diameter Dh 37 mm minimum bush diameter L0 83.5 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 41.25 mm length of unstressed spring body Ln 172.6 mm maximum spring length, inner loop to inner loop sn 89.1 mm Maximum spring deflection Fn 219.4 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 21.13 mm distance of inner edge of loop from the spring body R 2.279 N/mm Spring rate F0 16.4 N initial tension Fntol 13.9 N (+/-) tolerance of maximum spring force L0tol 1.8 mm (+/-) tolerance of unstressed length Detol 0.5 mm (+/-) tolerance of outer coil diameter Oesttol 22 degree (+/-) tolerance of loop position Weight 73.8358 g weight of one spring Price group ###ZP - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-162U-18X Stainless steel Ø 3 x 32 x 83.5 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-162U-18X Stainless steel Ø 3 x 32 x 83.5 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-162U-18X Stainless steel Ø 3 x 32 x 83.5 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-162U-18X Stainless steel Ø 3 x 32 x 83.5 mm / 270° force-path-calculation Extension Spring RZ-162U-18X Inquiry formular Extension Spring RZ-162U-18X Stainless steel Ø 3 x 32 x 83.5 mm / 270° Inquiry formular Extension Spring RZ-162U-18X Similar extension springs to Extension Spring RZ-162U-18X Stainless steel Ø 3 x 32 x 83.5 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-162U-18X 1.4310 3 32 83.5 219.4 172.6 89.1 2.279 100.0 | 100.0 | 100.0 | 100.0 Z-162U-18X EN 10270-1 3 32 83.5 265.6 175.9 92.4 2.65 91.7 | 100.0 | 89.5 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-147E-21X 30 82.3 0.606 1.4310 104.3 248.7 166.4 54.8 | 88.5 | 50.5 | 25.5 RZ-131X 27 62.8 0.763 1.4310 84.86 166.88 104.08 56.9 | 75.4 | 62.1 | 33.1 RZ-162E-11X 38 100.5 0.783 1.4310 158 293.6 193.1 59.7 | 86.9 | 59.1 | 33.2 RZ-147HX 24 88.6 0.799 1.4310 123.7 233.49 144.89 58.2 | 80.9 | 58.9 | 34.7 RZ-152X 27.5 101 0.884 1.4310 153.7 262.55 161.55 61.7 | 84.0 | 62.6 | 38.6 RZ-148X 34.5 79.7 0.888 1.4310 123.5 209.97 130.27 63.8 | 90.5 | 62.3 | 38.5 RZ-147E-20X 30 67 0.978 1.4310 104.3 170 103 63.5 | 82.4 | 67.0 | 41.1 RZ-162HX 30 112 1.08 1.4310 193.3 278.12 166.12 68.4 | 87.2 | 70.9 | 47.3 RZ-162E-10X 38 83.5 1.265 1.4310 158 203.1 119.6 73.1 | 92.5 | 73.3 | 53.6 RZ-162U-19X 32 108 1.4 1.4310 219.4 252.9 144.9 78.2 | 92.4 | 80.7 | 61.5 RZ-162GX 30 86.6 1.697 1.4310 193.3 192.31 105.71 85.0 | 94.5 | 86.2 | 74.3 RZ-151AX 27.5 71 1.715 1.4310 153.7 154.22 83.22 80.5 | 84.8 | 81.7 | 75.0 RZ-151X 27.5 68.5 1.861 1.4310 153.7 145.2 76.7 81.1 | 83.8 | 78.1 | 81.4 RZ-166AX 35.2 90.8 2.196 1.4310 240.9 193.7 102.9 92.0 | 92.2 | 88.8 | 95.1 RZ-162U-18X 32 83.5 2.279 1.4310 219.4 172.6 89.1 100.0 | 100.0 | 100.0 | 100.0 RZ-166X 35.2 87.6 2.383 1.4310 240.9 182.43 94.83 94.3 | 93.3 | 92.5 | 96.9 RZ-156GX 20 86 2.685 1.4310 207.8 157.45 71.45 84.4 | 81.0 | 87.5 | 84.7 RZ-162FX 30 69.8 2.741 1.4310 193.3 135.24 65.44 84.8 | 90.2 | 80.8 | 83.4 RZ-177FX 40 92.1 3.125 1.4310 298 182.47 90.37 81.8 | 84.7 | 86.1 | 74.7 RZ-162U-29X 24 94 3.688 1.4310 287.9 166.1 72.1 76.1 | 87.9 | 78.6 | 61.7 RZ-186X 36 104 4.972 1.4310 443.6 187.71 83.71 66.5 | 81.4 | 71.7 | 46.5 RZ-169X 28.2 76.4 4.997 1.4310 297.5 132.17 55.77 68.5 | 91.1 | 68.2 | 46.2 RZ-177K-10X 32 89 5.032 1.4310 368.5 156.6 67.6 68.4 | 92.4 | 67.7 | 45.2 RZ-177MX 25 89.7 9.521 1.4310 463.3 135.28 45.58 52.8 | 84.8 | 49.3 | 24.2 RZ-194X 29 93.6 10.426 1.4310 542.5 142.27 48.67 51.5 | 84.9 | 47.5 | 22.1 RZ-177LX 25 68.1 15.381 1.4310 463.3 96.32 28.22 45.2 | 81.0 | 39.5 | 15.0 RZ-202X 24 85.6 20.364 1.4310 643.3 114.49 28.89 42.3 | 82.5 | 33.3 | 11.1 Number of similar metal springs: 26 Customs tariff number: 73202085; Extension Spring RZ-162U-18X Country of origin: DE, German; Extension Spring RZ-162U-18X Product image - Extension Springs RZ-162U-18X QR-Code: Extension Spring RZ-162U-18X
