Extension Spring RZ-147E-20X Stainless steel Ø 2.2 x 30 x 67 mm / 270°

Scaled prices - Extension Spring RZ-147E-20X

Quantity	Single price [EUR]
1	6.8600 EUR
2	4.3200 EUR
3	3.3700 EUR
7	2.8700 EUR
17	1.4400 EUR
37	1.1200 EUR
75	0.9700 EUR
125	0.9700 EUR
175	0.9700 EUR
250	0.9700 EUR
350	0.9700 EUR
450	0.9700 EUR

Extension Spring Buy

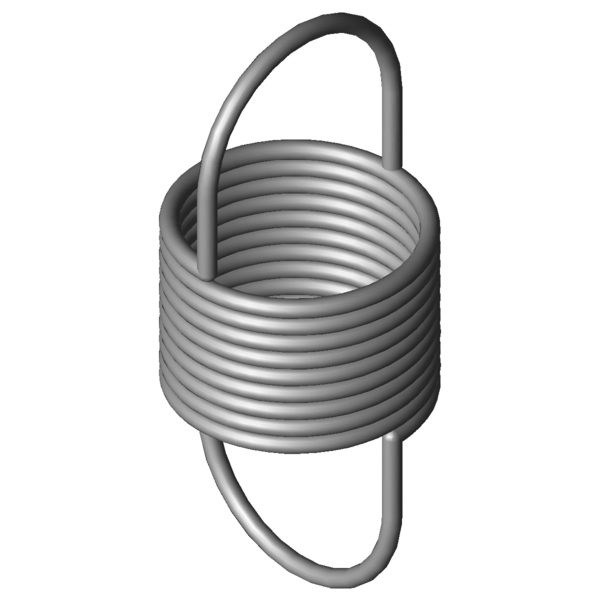

Product image Extension Spring RZ-147E-20X

Quantity:Quantity: Add to shopping cart

Technical Data - Extension Spring RZ-147E-20X

Formula symbols	Value	Unit	Description
Material	1.4310	-	type of material
Eylet shape	1/1 deutsche	-	Eylet shape
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	prestressed spring deflection
F2		N	loaded spring force
L2		mm	loaded spring length
s2		mm	loaded spring deflection
Eyelet position	270	°	Eyelet position
d	2.2	mm	Wire diameter
D		mm	mean coil diameter
De	30	mm	outer coil diameter
Dh	33.9	mm	minimum bush diameter
L0	67	mm	length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk	23.65	mm	length of unstressed spring body
Ln	170	mm	maximum spring length, inner loop to inner loop
sn	103	mm	Maximum spring deflection
Fn	104.3	N	Maximum spring force
n		pc.	Number of aktive coils
nt		pc.	total number of coils
Lh	21.68	mm	distance of inner edge of loop from the spring body
R	0.978	N/mm	Spring rate
F0	3.5	N	initial tension
Fntol	7	N	(+/-) tolerance of maximum spring force
L0tol	1.8	mm	(+/-) tolerance of unstressed length
Detol	0.5	mm	(+/-) tolerance of outer coil diameter
Oesttol	23	degree	(+/-) tolerance of loop position
Weight	30.1888	g	weight of one spring
Price group	#ZM	-	price group

Technical drawing Extension Spring

Datasheet Extension Spring RZ-147E-20X Stainless steel Ø 2.2 x 30 x 67 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring RZ-147E-20X Stainless steel Ø 2.2 x 30 x 67 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring RZ-147E-20X Stainless steel Ø 2.2 x 30 x 67 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring RZ-147E-20X Stainless steel Ø 2.2 x 30 x 67 mm / 270°

force-path-calculation Extension Spring RZ-147E-20X

Inquiry formular Extension Spring RZ-147E-20X Stainless steel Ø 2.2 x 30 x 67 mm / 270°

Inquiry formular Extension Spring RZ-147E-20X

Similar extension springs to Extension Spring RZ-147E-20X Stainless steel Ø 2.2 x 30 x 67 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
RZ-147E-20X	1.4310	2.2	30	67	104.3	170	103	0.978	100.0 \| 100.0 \| 100.0 \| 100.0
Z-147E-20X	EN 10270-1	2.2	30	67	118	166.1	99.1	1.139	92.4 \| 100.0 \| 92.3 \| 85.0

Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
RZ-115F-12X	20	65.3	0.211	1.4310	44.2	265.25	199.95	48.2 \| 75.9 \| 46.9 \| 21.8
RZ-115V-11X	20	70	0.252	1.4310	51.22	260.45	190.45	51.7 \| 76.9 \| 51.6 \| 26.6
RZ-117X	21.6	71	0.29	1.4310	56.93	256.49	185.49	55.0 \| 79.7 \| 55.1 \| 30.3
RZ-130E-12X	24	80.3	0.339	1.4310	73.5	286.1	205.8	59.1 \| 81.8 \| 60.3 \| 35.3
RZ-132X	27	78.8	0.454	1.4310	84.86	253.74	174.94	68.9 \| 88.6 \| 70.1 \| 47.9
RZ-130E-11X	24	64.2	0.533	1.4310	73.5	195.1	130.9	72.0 \| 85.9 \| 74.6 \| 55.4
RZ-147E-21X	30	82.3	0.606	1.4310	104.3	248.7	166.4	78.9 \| 93.8 \| 80.9 \| 61.9
RZ-130HX	20	73	0.616	1.4310	84.95	202.05	129.05	75.2 \| 80.1 \| 80.6 \| 65.0
RZ-131X	27	62.8	0.763	1.4310	84.86	166.88	104.08	87.4 \| 91.5 \| 90.2 \| 80.5
RZ-135AX	22	72.8	0.843	1.4310	103.4	186.99	114.19	89.8 \| 85.4 \| 94.7 \| 89.4
RZ-130E-10X	24	53.5	0.861	1.4310	73.5	134.5	81	81.6 \| 80.6 \| 74.6 \| 89.6
RZ-135X	22	70.8	0.886	1.4310	103.4	179.49	108.69	92.4 \| 86.3 \| 97.0 \| 93.9
RZ-148X	34.5	79.7	0.888	1.4310	123.5	209.97	130.27	87.2 \| 86.3 \| 81.8 \| 93.6
RZ-147E-20X	30	67	0.978	1.4310	104.3	170	103	100.0 \| 100.0 \| 100.0 \| 100.0
RZ-147GX	24	68.8	1.256	1.4310	123.7	161.07	92.27	85.0 \| 92.5 \| 86.9 \| 75.5
RZ-137X	18.6	65	1.55	1.4310	121.3	137.79	72.79	74.1 \| 83.3 \| 78.3 \| 60.8
RZ-162GX	30	86.6	1.697	1.4310	193.3	192.31	105.71	72.1 \| 85.3 \| 75.7 \| 55.4
RZ-151AX	27.5	71	1.715	1.4310	153.7	154.22	83.22	73.5 \| 91.3 \| 74.3 \| 54.8
RZ-151X	27.5	68.5	1.861	1.4310	153.7	145.2	76.7	71.4 \| 92.5 \| 71.2 \| 50.5
RZ-147FX	24	55.6	2.029	1.4310	123.7	112.72	57.12	68.1 \| 87.7 \| 69.9 \| 46.8
RZ-162U-18X	32	83.5	2.279	1.4310	219.4	172.6	89.1	63.5 \| 82.4 \| 67.0 \| 41.1
RZ-162FX	30	69.8	2.741	1.4310	193.3	135.24	65.44	61.5 \| 91.5 \| 58.7 \| 34.3
RZ-154X	22.5	60.5	3.636	1.4310	186.1	107.84	47.34	53.7 \| 84.4 \| 51.0 \| 25.8
RZ-156FX	20	63.5	4.323	1.4310	207.8	107.87	44.37	50.5 \| 83.1 \| 46.6 \| 21.6
RZ-162K-20X	25	65	4.573	1.4310	229.9	111.5	46.5	50.7 \| 86.3 \| 45.3 \| 20.5
RZ-169X	28.2	76.4	4.997	1.4310	297.5	132.17	55.77	49.0 \| 83.5 \| 44.6 \| 19.0
RZ-177K-10X	32	89	5.032	1.4310	368.5	156.6	67.6	47.4 \| 76.7 \| 47.0 \| 18.6
RZ-162U-28X	24	69	6.002	1.4310	287.9	113.3	44.3	46.2 \| 83.5 \| 39.6 \| 15.6
RZ-162MX	20	70.6	6.711	1.4310	282.9	109.49	38.89	43.8 \| 80.0 \| 37.3 \| 13.9

Number of similar metal springs: 28
