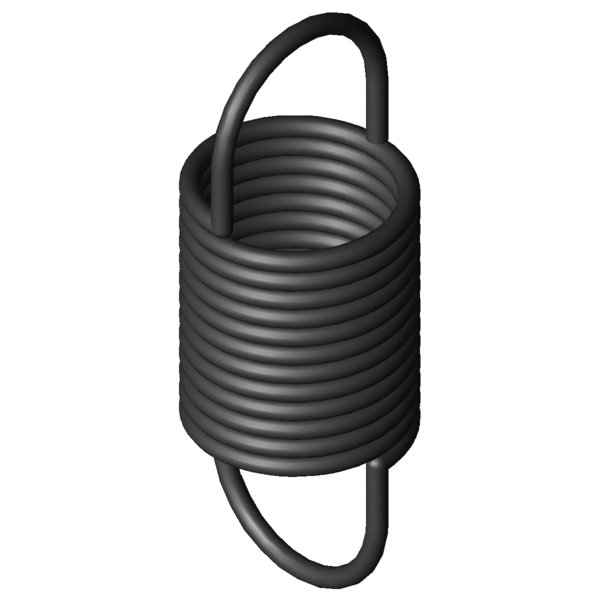

Home » Products » Extension Springs » z-162u-18x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-162U-18X Spring steel Ø 3 x 32 x 83.5 mm / 270° Scaled prices - Extension Spring Z-162U-18X Quantity Single price [EUR] 1 6.8600 EUR 2 4.3200 EUR 3 3.3700 EUR 7 2.8700 EUR 17 2.8700 EUR 37 2.8700 EUR 75 2.8700 EUR 125 2.8700 EUR 175 2.8700 EUR 250 2.8700 EUR 350 2.8700 EUR 450 2.8700 EUR Extension Spring Buy Product image Extension Spring Z-162U-18X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-162U-18X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3 mm Wire diameter D mm mean coil diameter De 32 mm outer coil diameter Dh 37 mm minimum bush diameter L0 83.5 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 41.25 mm length of unstressed spring body Ln 175.9 mm maximum spring length, inner loop to inner loop sn 92.4 mm Maximum spring deflection Fn 265.6 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 21.13 mm distance of inner edge of loop from the spring body R 2.65 N/mm Spring rate F0 20.5 N initial tension Fntol 13.9 N (+/-) tolerance of maximum spring force L0tol 1.8 mm (+/-) tolerance of unstressed length Detol 0.5 mm (+/-) tolerance of outer coil diameter Oesttol 22 degree (+/-) tolerance of loop position Weight 73.84 g weight of one spring Price group ###ZM - price group Technical drawing Extension Spring Datasheet Extension Spring Z-162U-18X Spring steel Ø 3 x 32 x 83.5 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-162U-18X Spring steel Ø 3 x 32 x 83.5 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-162U-18X Spring steel Ø 3 x 32 x 83.5 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-162U-18X Spring steel Ø 3 x 32 x 83.5 mm / 270° force-path-calculation Extension Spring Z-162U-18X Inquiry formular Extension Spring Z-162U-18X Spring steel Ø 3 x 32 x 83.5 mm / 270° Inquiry formular Extension Spring Z-162U-18X Similar extension springs to Extension Spring Z-162U-18X Spring steel Ø 3 x 32 x 83.5 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-162U-18X EN 10270-1 3 32 83.5 265.6 175.9 92.4 2.65 78.2 | 92.4 | 80.7 | 61.5 RZ-162U-18X 1.4310 3 32 83.5 219.4 172.6 89.1 2.279 91.7 | 100.0 | 89.5 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-147E-22X 30 102 0.449 EN 10270-1 118 353.6 251.6 55.3 | 87.2 | 52.1 | 26.5 Z-132X 27 78.8 0.528 EN 10270-1 101.2 257.41 178.61 48.8 | 81.8 | 44.9 | 19.7 Z-147E-21X 30 82.3 0.705 EN 10270-1 118 242.3 160 64.0 | 81.1 | 69.2 | 41.7 Z-162E-11X 38 100.5 0.91 EN 10270-1 180 289 188.5 72.7 | 90.2 | 73.8 | 54.0 Z-147HX 24 88.6 0.931 EN 10270-1 148 237.15 148.55 58.2 | 80.9 | 59.0 | 34.7 Z-152X 27.5 101 1.029 EN 10270-1 184.9 267.39 166.39 76.8 | 87.6 | 80.0 | 62.9 Z-148X 34.5 79.7 1.034 EN 10270-1 148.5 213.89 134.19 83.0 | 82.8 | 71.2 | 94.8 Z-147E-20X 30 67 1.139 EN 10270-1 118 166.1 99.1 64.2 | 82.4 | 68.8 | 41.4 Z-162E-10X 38 83.5 1.47 EN 10270-1 180 200.2 116.7 79.9 | 90.3 | 73.8 | 75.7 Z-162U-19X 32 108 1.63 EN 10270-1 265.6 258.3 150.3 100.0 | 100.0 | 100.0 | 100.0 Z-162GX 30 86.6 1.976 EN 10270-1 233.4 195.77 109.17 84.0 | 89.1 | 80.3 | 82.7 Z-151AX 27.5 71 1.99 EN 10270-1 184.9 156.71 85.71 80.3 | 84.8 | 81.2 | 75.0 Z-151X 27.5 68.5 2.168 EN 10270-1 184.9 147.49 78.99 80.9 | 83.8 | 77.6 | 81.4 Z-166AX 35.2 90.8 2.557 EN 10270-1 290.5 197.11 106.31 78.4 | 89.6 | 81.1 | 64.7 Z-162U-18X 32 83.5 2.65 EN 10270-1 265.6 175.9 92.4 78.2 | 92.4 | 80.7 | 61.5 Z-166X 35.2 87.6 2.774 EN 10270-1 290.5 185.57 97.97 75.5 | 88.6 | 78.3 | 59.6 Z-162FX 30 69.8 3.191 EN 10270-1 233.4 137.38 67.58 84.7 | 90.2 | 80.5 | 83.2 Z-177FX 40 92.1 3.639 EN 10270-1 357.1 184.86 92.76 59.0 | 91.5 | 55.3 | 30.3 Z-162U-29X 24 94 4.29 EN 10270-1 348.5 168.8 74.8 76.1 | 87.9 | 78.6 | 61.7 Z-186X 36 104 5.788 EN 10270-1 528.1 189.31 85.31 56.3 | 86.7 | 53.5 | 28.5 Z-169X 28.2 76.4 5.818 EN 10270-1 358.7 134.02 57.62 68.5 | 91.1 | 68.2 | 46.2 Z-177K-10X 32 89 5.86 EN 10270-1 441.6 158.4 69.4 56.5 | 88.6 | 53.2 | 27.8 Z-177MX 25 89.7 11.086 EN 10270-1 555.1 136.46 46.76 52.8 | 84.8 | 49.2 | 24.2 Z-194X 29 93.6 12.139 EN 10270-1 645.8 143.18 49.58 44.9 | 84.1 | 37.1 | 13.6 Z-177LX 25 68.1 17.907 EN 10270-1 555.1 97.05 28.95 45.2 | 81.0 | 39.6 | 15.0 Z-223HX 30 94 19.76 EN 10270-1 858.7 133.8 39.8 44.5 | 83.1 | 37.0 | 13.3 Z-202X 24 85.6 23.709 EN 10270-1 765.7 115 29.4 42.3 | 82.5 | 33.3 | 11.0 Z-253HX 30 100 31.96 EN 10270-1 1134 132 32 38.7 | 79.1 | 29.0 | 8.1 Z-230HX 25 87 38.03 EN 10270-1 1008 110.6 23.6 37.6 | 80.3 | 25.9 | 6.7 Number of similar metal springs: 28 Customs tariff number: 73202085; Extension Spring Z-162U-18X Country of origin: DE, German; Extension Spring Z-162U-18X Product image - Extension Springs Z-162U-18X QR-Code: Extension Spring Z-162U-18X
