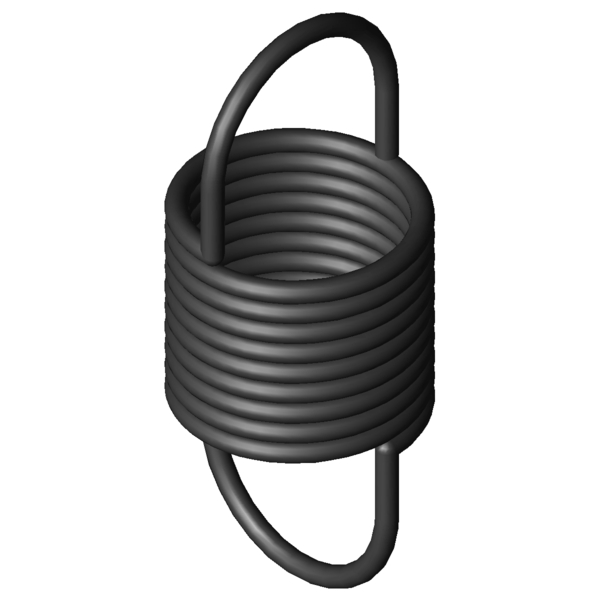

Home » Products » Extension Springs » z-177fx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-177FX Spring steel Ø 3.6 x 40 x 92.1 mm / 270° Scaled prices - Extension Spring Z-177FX Quantity Single price [EUR] 1 12.4800 EUR 2 9.9500 EUR 3 5.4200 EUR 7 3.2800 EUR 17 3.2800 EUR 37 3.2800 EUR 75 3.2800 EUR 125 3.2800 EUR 175 3.2800 EUR 250 3.2800 EUR 350 3.2800 EUR Extension Spring Buy Product image Extension Spring Z-177FX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-177FX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.6 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 46 mm minimum bush diameter L0 92.1 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 38.7 mm length of unstressed spring body Ln 184.86 mm maximum spring length, inner loop to inner loop sn 92.76 mm Maximum spring deflection Fn 357.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 26.7 mm distance of inner edge of loop from the spring body R 3.639 N/mm Spring rate F0 19.6 N initial tension Fntol 23.46 N (+/-) tolerance of maximum spring force L0tol 1.8 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 20 degree (+/-) tolerance of loop position Weight 105.84 g weight of one spring Price group ###AB - price group Technical drawing Extension Spring Datasheet Extension Spring Z-177FX Spring steel Ø 3.6 x 40 x 92.1 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-177FX Spring steel Ø 3.6 x 40 x 92.1 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-177FX Spring steel Ø 3.6 x 40 x 92.1 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-177FX Spring steel Ø 3.6 x 40 x 92.1 mm / 270° force-path-calculation Extension Spring Z-177FX Inquiry formular Extension Spring Z-177FX Spring steel Ø 3.6 x 40 x 92.1 mm / 270° Inquiry formular Extension Spring Z-177FX Similar extension springs to Extension Spring Z-177FX Spring steel Ø 3.6 x 40 x 92.1 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-177FX EN 10270-1 3.6 40 92.1 357.1 184.86 92.76 3.639 100.0 | 100.0 | 100.0 | 100.0 RZ-177FX 1.4310 3.6 40 92.1 298 182.47 90.37 3.125 92.0 | 100.0 | 90.4 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-162E-11X 38 100.5 0.91 EN 10270-1 180 289 188.5 54.3 | 88.1 | 49.8 | 24.8 Z-147HX 24 88.6 0.931 EN 10270-1 148 237.15 148.55 50.1 | 72.4 | 51.9 | 25.9 Z-152X 27.5 101 1.029 EN 10270-1 184.9 267.39 166.39 53.0 | 76.5 | 53.8 | 28.9 Z-148X 34.5 79.7 1.034 EN 10270-1 148.5 213.89 134.19 54.9 | 80.7 | 55.4 | 28.7 Z-162U-10X 40 101 1.1 EN 10270-1 214.2 284.5 183.5 59.0 | 91.5 | 55.3 | 30.3 Z-163X 43.2 100 1.421 EN 10270-1 238.4 259.52 159.52 64.2 | 91.2 | 62.5 | 38.8 Z-162E-10X 38 83.5 1.47 EN 10270-1 180 200.2 116.7 64.3 | 87.8 | 64.9 | 40.1 Z-162U-19X 32 108 1.63 EN 10270-1 265.6 258.3 150.3 65.6 | 82.9 | 68.0 | 45.9 Z-162GX 30 86.6 1.976 EN 10270-1 233.4 195.77 109.17 71.0 | 82.3 | 75.2 | 55.5 Z-177GX 40 114 2.253 EN 10270-1 357.1 263.84 149.84 78.8 | 93.6 | 81.0 | 61.9 Z-166AX 35.2 90.8 2.557 EN 10270-1 290.5 197.11 106.31 82.4 | 91.8 | 84.3 | 71.0 Z-162U-18X 32 83.5 2.65 EN 10270-1 265.6 175.9 92.4 82.1 | 84.7 | 87.0 | 74.7 Z-166X 35.2 87.6 2.774 EN 10270-1 290.5 185.57 97.97 85.2 | 90.7 | 88.0 | 77.0 Z-178X 44 117 2.964 EN 10270-1 436.3 255.96 138.96 80.8 | 86.5 | 74.3 | 81.6 Z-177FX 40 92.1 3.639 EN 10270-1 357.1 184.86 92.76 100.0 | 100.0 | 100.0 | 100.0 Z-162U-29X 24 94 4.29 EN 10270-1 348.5 168.8 74.8 84.1 | 80.4 | 89.1 | 82.6 Z-186X 36 104 5.788 EN 10270-1 528.1 189.31 85.31 77.2 | 89.5 | 79.8 | 62.2 Z-177K-10X 32 89 5.86 EN 10270-1 441.6 158.4 69.4 76.9 | 92.2 | 77.8 | 60.5 Z-216HX 40 110 7.32 EN 10270-1 658.2 192.2 82.2 69.1 | 87.9 | 71.4 | 48.1 Z-177MX 25 89.7 11.086 EN 10270-1 555.1 136.46 46.76 58.8 | 86.6 | 57.4 | 32.4 Z-246HX 40 116 11.64 EN 10270-1 873.5 184.6 68.6 57.2 | 83.8 | 57.4 | 30.2 Z-194X 29 93.6 12.139 EN 10270-1 645.8 143.18 49.58 57.0 | 87.0 | 54.4 | 29.6 Z-283HX 40 121 17.8 EN 10270-1 1134 178 57 48.8 | 80.5 | 46.5 | 19.4 Z-223HX 30 94 19.76 EN 10270-1 858.7 133.8 39.8 48.1 | 84.3 | 42.2 | 17.8 Z-253HX 30 100 31.96 EN 10270-1 1134 132 32 41.2 | 79.7 | 33.0 | 10.9 Z-320HX 40 130 32.88 EN 10270-1 1632 173.5 43.5 40.2 | 76.0 | 34.4 | 10.3 Z-230HX 25 87 38.03 EN 10270-1 1008 110.6 23.6 39.5 | 79.0 | 30.4 | 9.0 Number of similar metal springs: 26 Customs tariff number: 73202085; Extension Spring Z-177FX Country of origin: DE, German; Extension Spring Z-177FX Product image - Extension Springs Z-177FX QR-Code: Extension Spring Z-177FX
