Extension Spring Z-177GX Spring steel Ø 3.6 x 40 x 114 mm / 270°

Scaled prices - Extension Spring Z-177GX

Quantity Single price [EUR]
1 12.7100 EUR
2 10.1200 EUR
3 5.6200 EUR
7 3.4700 EUR
17 3.4700 EUR
37 3.4700 EUR
75 3.4700 EUR
125 3.4700 EUR
175 3.4700 EUR
250 3.4700 EUR
350 3.4700 EUR

Extension Spring Buy

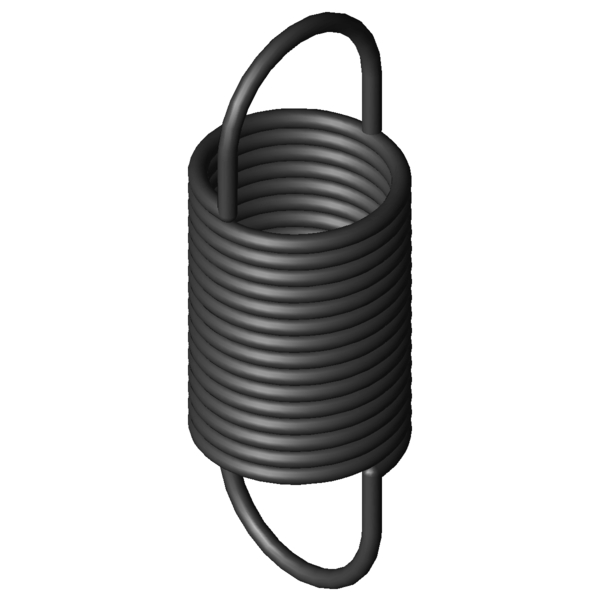

Product image Extension Spring Z-177GX
Product image Extension Spring Z-177GX
Quantity: Add to shopping cart

Technical Data - Extension Spring Z-177GX

Formula symbols Value Unit Description
Material EN 10270-1 - type of material
Eylet shape 1/1 deutsche - Eylet shape
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm prestressed spring deflection
F2 N loaded spring force
L2 mm loaded spring length
s2 mm loaded spring deflection
Eyelet position 270 ° Eyelet position
d 3.6 mm Wire diameter
D mm mean coil diameter
De 40 mm outer coil diameter
Dh 46 mm minimum bush diameter
L0 114 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk 60.3 mm length of unstressed spring body
Ln 263.84 mm maximum spring length, inner loop to inner loop
sn 149.84 mm Maximum spring deflection
Fn 357.1 N Maximum spring force
n pc. Number of aktive coils
nt pc. total number of coils
Lh 26.85 mm distance of inner edge of loop from the spring body
R 2.253 N/mm Spring rate
F0 19.6 N initial tension
Fntol 20.46 N (+/-) tolerance of maximum spring force
L0tol 2.4 mm (+/-) tolerance of unstressed length
Detol 0.6 mm (+/-) tolerance of outer coil diameter
Oesttol 26 degree (+/-) tolerance of loop position
Weight 161.06 g weight of one spring
Price group ###AC - price group
Technical drawing Extension Spring
Technical drawing Extension Spring

Datasheet Extension Spring Z-177GX Spring steel Ø 3.6 x 40 x 114 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-177GX Spring steel Ø 3.6 x 40 x 114 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-177GX Spring steel Ø 3.6 x 40 x 114 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-177GX Spring steel Ø 3.6 x 40 x 114 mm / 270°

force-path-calculation Extension Spring Z-177GX

Inquiry formular Extension Spring Z-177GX Spring steel Ø 3.6 x 40 x 114 mm / 270°

Inquiry formular Extension Spring Z-177GX

Similar extension springs to Extension Spring Z-177GX Spring steel Ø 3.6 x 40 x 114 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness
Z-177GX EN 10270-1 3.6 40 114 357.1 263.84 149.84 2.253 100.0 | 100.0 | 100.0 | 100.0
RZ-177GX 1.4310 3.6 40 114 298 259.99 145.99 1.935 92.0 | 100.0 | 90.4 | 85.7
Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority
article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %
Overall | Geometrie | Load | Stiffness
Z-147E-22X 30 102 0.449 EN 10270-1 118 353.6 251.6 47.1 | 75.2 | 46.3 | 19.7
Z-149X 34.5 112 0.491 EN 10270-1 148.5 394.65 282.65 51.3 | 84.6 | 47.3 | 22.0
Z-162E-12X 38 126 0.58 EN 10270-1 180 422.2 296.2 54.6 | 87.8 | 50.5 | 25.5
Z-162U-01X 40 140 0.587 EN 10270-1 214.2 485.31 345.31 55.3 | 88.3 | 51.7 | 26.0
Z-164X 43.2 142 0.674 EN 10270-1 238.4 478.02 336.02 57.6 | 87.3 | 55.7 | 29.8
Z-162E-11X 38 100.5 0.91 EN 10270-1 180 289 188.5 64.0 | 87.0 | 64.9 | 40.1
Z-162U-10X 40 101 1.1 EN 10270-1 214.2 284.5 183.5 70.1 | 90.6 | 70.8 | 49.0
Z-162U-20X 32 128 1.219 EN 10270-1 265.6 329.03 201.03 71.3 | 84.1 | 74.5 | 55.4
Z-162HX 30 112 1.257 EN 10270-1 233.4 283.55 171.55 72.4 | 83.7 | 76.4 | 57.1
Z-167X 35.2 129 1.317 EN 10270-1 290.5 335.36 206.36 74.8 | 88.4 | 77.0 | 59.1
Z-163X 43.2 100 1.421 EN 10270-1 238.4 259.52 159.52 77.6 | 89.7 | 80.3 | 62.7
Z-177HX 40 146 1.434 EN 10270-1 357.1 381.46 235.46 79.4 | 92.7 | 81.8 | 63.6
Z-162E-10X 38 83.5 1.47 EN 10270-1 180 200.2 116.7 70.3 | 82.0 | 64.1 | 64.7
Z-162U-19X 32 108 1.63 EN 10270-1 265.6 258.3 150.3 82.4 | 86.0 | 87.0 | 74.1
Z-177GX 40 114 2.253 EN 10270-1 357.1 263.84 149.84 100.0 | 100.0 | 100.0 | 100.0
Z-166AX 35.2 90.8 2.557 EN 10270-1 290.5 197.11 106.31 83.0 | 85.5 | 76.1 | 87.2
Z-170X 28.2 118 2.762 EN 10270-1 358.7 239.37 121.37 85.4 | 85.3 | 90.3 | 80.6
Z-166X 35.2 87.6 2.774 EN 10270-1 290.5 185.57 97.97 79.4 | 84.6 | 73.4 | 80.4
Z-178X 44 117 2.964 EN 10270-1 436.3 255.96 138.96 85.3 | 92.8 | 87.3 | 75.9
Z-209LX 50 126 3.48 EN 10270-1 532.3 271 145 76.8 | 83.5 | 81.9 | 64.9
Z-177K-11X 32 118 3.6 EN 10270-1 441.6 230.9 112.9 77.1 | 92.2 | 78.1 | 60.9
Z-177FX 40 92.1 3.639 EN 10270-1 357.1 184.86 92.76 78.8 | 93.6 | 81.0 | 61.9
Z-186AX 36 132 3.84 EN 10270-1 528.1 260.7 128.7 74.5 | 88.8 | 76.8 | 58.1
Z-216JX 40 146 4.5 EN 10270-1 658.2 279.7 133.7 68.7 | 86.0 | 71.7 | 48.4
Z-186X 36 104 5.788 EN 10270-1 528.1 189.31 85.31 63.7 | 90.4 | 62.3 | 38.5
Z-216HX 40 110 7.32 EN 10270-1 658.2 192.2 82.2 58.8 | 92.2 | 54.6 | 29.8
Z-194AX 29 121 8.04 EN 10270-1 645.8 195.8 74.8 55.3 | 85.6 | 52.6 | 27.6
Z-246HX 40 116 11.64 EN 10270-1 873.5 184.6 68.6 50.7 | 90.1 | 43.3 | 18.7
Z-283HX 40 121 17.8 EN 10270-1 1134 178 57 44.4 | 86.6 | 34.8 | 12.0
Z-320HX 40 130 32.88 EN 10270-1 1632 173.5 43.5 37.8 | 81.6 | 25.5 | 6.4
Number of similar metal springs: 29

Customs tariff number: 73202085; Extension Spring Z-177GX

Country of origin: DE, German; Extension Spring Z-177GX
