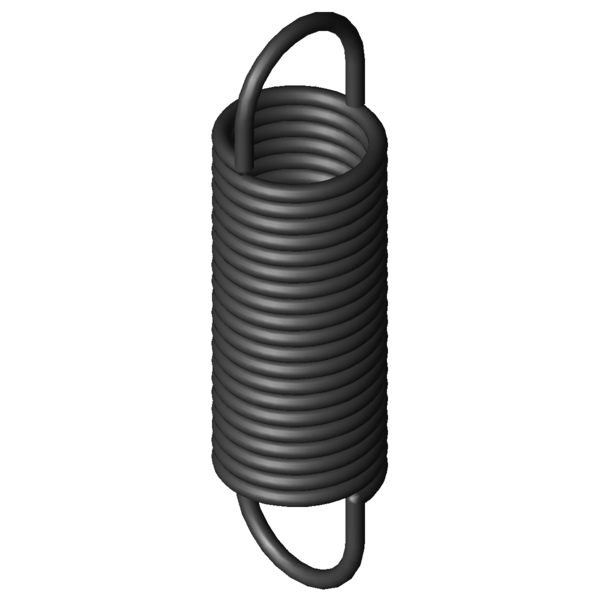

Home » Products » Extension Springs » z-186ax Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-186AX Spring steel Ø 4 x 36 x 132 mm / 270° Scaled prices - Extension Spring Z-186AX Quantity Single price [EUR] 1 12.7100 EUR 2 10.1200 EUR 3 5.6200 EUR 7 3.4700 EUR 17 3.4700 EUR 37 3.4700 EUR 75 3.4700 EUR 125 3.4700 EUR 175 3.4700 EUR 250 3.4700 EUR 350 3.4700 EUR Extension Spring Buy Product image Extension Spring Z-186AX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-186AX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 4 mm Wire diameter D mm mean coil diameter De 36 mm outer coil diameter Dh 42.5 mm minimum bush diameter L0 132 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 87 mm length of unstressed spring body Ln 260.7 mm maximum spring length, inner loop to inner loop sn 128.7 mm Maximum spring deflection Fn 528.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 22.5 mm distance of inner edge of loop from the spring body R 3.84 N/mm Spring rate F0 34.3 N initial tension Fntol 27 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.5 mm (+/-) tolerance of outer coil diameter Oesttol 25 degree (+/-) tolerance of loop position Weight 224.7557 g weight of one spring Price group ###AC - price group Technical drawing Extension Spring Datasheet Extension Spring Z-186AX Spring steel Ø 4 x 36 x 132 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-186AX Spring steel Ø 4 x 36 x 132 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-186AX Spring steel Ø 4 x 36 x 132 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-186AX Spring steel Ø 4 x 36 x 132 mm / 270° force-path-calculation Extension Spring Z-186AX Inquiry formular Extension Spring Z-186AX Spring steel Ø 4 x 36 x 132 mm / 270° Inquiry formular Extension Spring Z-186AX Similar extension springs to Extension Spring Z-186AX Spring steel Ø 4 x 36 x 132 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-186AX EN 10270-1 4 36 132 528.1 260.7 128.7 3.84 100.0 | 100.0 | 100.0 | 100.0 RZ-186AX 1.4310 4 36 132 443.6 258.3 126.3 3.294 92.2 | 100.0 | 91.1 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-162U-01X 40 140 0.587 EN 10270-1 214.2 485.31 345.31 46.8 | 86.4 | 38.9 | 15.1 Z-153X 27.5 138 0.641 EN 10270-1 184.9 405.23 267.23 45.5 | 78.2 | 41.6 | 16.9 Z-164X 43.2 142 0.674 EN 10270-1 238.4 478.02 336.02 48.1 | 85.4 | 41.7 | 17.3 Z-162E-11X 38 100.5 0.91 EN 10270-1 180 289 188.5 51.6 | 80.3 | 51.2 | 23.3 Z-162U-21X 32 146 1.003 EN 10270-1 265.6 390.49 244.49 54.2 | 84.8 | 51.5 | 26.5 Z-162U-20X 32 128 1.219 EN 10270-1 265.6 329.03 201.03 58.8 | 87.0 | 57.2 | 32.2 Z-162HX 30 112 1.257 EN 10270-1 233.4 283.55 171.55 57.4 | 79.4 | 59.6 | 33.2 Z-167X 35.2 129 1.317 EN 10270-1 290.5 335.36 206.36 61.6 | 91.8 | 58.7 | 34.3 Z-177HX 40 146 1.434 EN 10270-1 357.1 381.46 235.46 62.7 | 90.1 | 61.1 | 37.0 Z-162U-19X 32 108 1.63 EN 10270-1 265.6 258.3 150.3 64.3 | 81.9 | 68.0 | 43.1 Z-177GX 40 114 2.253 EN 10270-1 357.1 263.84 149.84 74.5 | 88.8 | 76.8 | 58.1 Z-177K-01X 32 154 2.429 EN 10270-1 441.6 321.25 167.25 77.6 | 88.2 | 80.3 | 64.3 Z-187X 36 160 2.868 EN 10270-1 528.1 332.1 172.1 85.4 | 94.2 | 87.4 | 74.8 Z-177K-11X 32 118 3.6 EN 10270-1 441.6 230.9 112.9 90.1 | 89.4 | 85.7 | 95.3 Z-186AX 36 132 3.84 EN 10270-1 528.1 260.7 128.7 100.0 | 100.0 | 100.0 | 100.0 Z-216JX 40 146 4.5 EN 10270-1 658.2 279.7 133.7 87.1 | 89.8 | 88.2 | 83.4 Z-186X 36 104 5.788 EN 10270-1 528.1 189.31 85.31 80.8 | 92.9 | 83.1 | 66.3 Z-246JX 40 156 7.15 EN 10270-1 873.5 267.6 111.6 70.3 | 84.9 | 73.6 | 52.4 Z-216HX 40 110 7.32 EN 10270-1 658.2 192.2 82.2 70.2 | 87.4 | 72.1 | 51.2 Z-194AX 29 121 8.04 EN 10270-1 645.8 195.8 74.8 69.4 | 90.7 | 69.9 | 47.5 Z-246HX 40 116 11.64 EN 10270-1 873.5 184.6 68.6 58.4 | 86.0 | 56.9 | 32.2 Z-223JX 30 130 12.14 EN 10270-1 858.7 194.8 64.8 59.0 | 90.2 | 55.9 | 31.0 Z-283HX 40 121 17.8 EN 10270-1 1134 178 57 50.3 | 84.8 | 45.4 | 20.6 Z-253JX 30 140 19.63 EN 10270-1 1134 192.2 52.2 49.4 | 85.9 | 43.6 | 18.9 Z-320HX 40 130 32.88 EN 10270-1 1632 173.5 43.5 42.7 | 84.0 | 33.1 | 10.9 Number of similar metal springs: 24 Customs tariff number: 73202085; Extension Spring Z-186AX Country of origin: DE, German; Extension Spring Z-186AX Product image - Extension Springs Z-186AX QR-Code: Extension Spring Z-186AX
