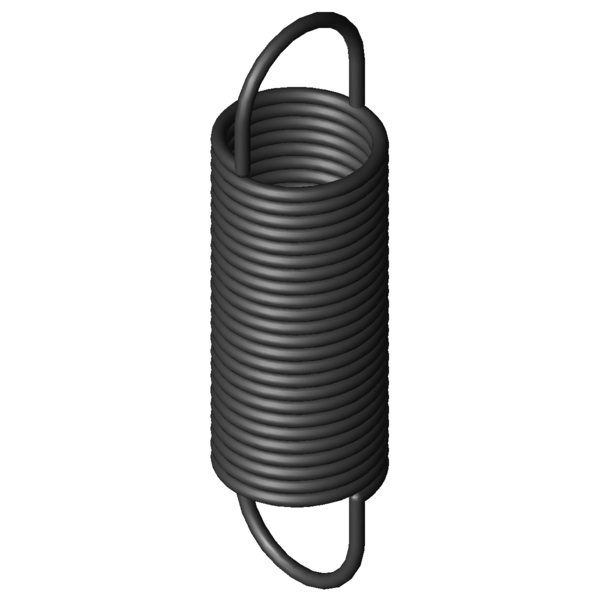

Home » Products » Extension Springs » z-167x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-167X Spring steel Ø 3.2 x 35.2 x 129 mm / 270° Scaled prices - Extension Spring Z-167X Quantity Single price [EUR] 1 7.1700 EUR 2 4.5200 EUR 3 3.5600 EUR 7 3.0400 EUR 17 3.0400 EUR 37 3.0400 EUR 75 3.0400 EUR 125 3.0400 EUR 175 3.0400 EUR 250 3.0400 EUR 350 3.0400 EUR 450 3.0400 EUR Extension Spring Buy Product image Extension Spring Z-167X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-167X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 35.2 mm outer coil diameter Dh 40.6 mm minimum bush diameter L0 129 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 82.4 mm length of unstressed spring body Ln 335.36 mm maximum spring length, inner loop to inner loop sn 206.36 mm Maximum spring deflection Fn 290.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 23.3 mm distance of inner edge of loop from the spring body R 1.317 N/mm Spring rate F0 18.77 N initial tension Fntol 15.36 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 32 degree (+/-) tolerance of loop position Weight 169.42 g weight of one spring Price group ###ZO - price group Technical drawing Extension Spring Datasheet Extension Spring Z-167X Spring steel Ø 3.2 x 35.2 x 129 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-167X Spring steel Ø 3.2 x 35.2 x 129 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-167X Spring steel Ø 3.2 x 35.2 x 129 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-167X Spring steel Ø 3.2 x 35.2 x 129 mm / 270° force-path-calculation Extension Spring Z-167X Inquiry formular Extension Spring Z-167X Spring steel Ø 3.2 x 35.2 x 129 mm / 270° Inquiry formular Extension Spring Z-167X Similar extension springs to Extension Spring Z-167X Spring steel Ø 3.2 x 35.2 x 129 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-167X EN 10270-1 3.2 35.2 129 290.5 335.36 206.36 1.317 100.0 | 100.0 | 100.0 | 100.0 RZ-167X 1.4310 3.2 35.2 129 240.9 328.74 199.74 1.131 91.8 | 100.0 | 89.9 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-133X 27 118 0.262 EN 10270-1 101.2 477.49 359.49 47.7 | 76.9 | 46.1 | 20.0 Z-147E-23X 30 133 0.279 EN 10270-1 118 537.1 404.1 50.1 | 83.7 | 45.8 | 20.7 Z-150X 34.5 149 0.306 EN 10270-1 148.5 602.95 453.95 53.0 | 87.6 | 48.3 | 23.2 Z-149X 34.5 112 0.491 EN 10270-1 148.5 394.65 282.65 62.3 | 87.7 | 62.1 | 37.3 Z-162E-12X 38 126 0.58 EN 10270-1 180 422.2 296.2 67.2 | 92.6 | 65.8 | 43.2 Z-162U-01X 40 140 0.587 EN 10270-1 214.2 485.31 345.31 67.4 | 91.3 | 66.7 | 44.1 Z-153X 27.5 138 0.641 EN 10270-1 184.9 405.23 267.23 67.6 | 83.2 | 70.4 | 49.2 Z-162E-11X 38 100.5 0.91 EN 10270-1 180 289 188.5 76.8 | 86.0 | 76.7 | 67.8 Z-162U-21X 32 146 1.003 EN 10270-1 265.6 390.49 244.49 85.4 | 91.0 | 87.9 | 77.2 Z-162U-20X 32 128 1.219 EN 10270-1 265.6 329.03 201.03 94.3 | 94.6 | 94.4 | 93.9 Z-162HX 30 112 1.257 EN 10270-1 233.4 283.55 171.55 88.3 | 86.5 | 81.7 | 96.6 Z-167X 35.2 129 1.317 EN 10270-1 290.5 335.36 206.36 100.0 | 100.0 | 100.0 | 100.0 Z-177HX 40 146 1.434 EN 10270-1 357.1 381.46 235.46 88.6 | 88.4 | 84.5 | 92.8 Z-162U-19X 32 108 1.63 EN 10270-1 265.6 258.3 150.3 83.8 | 89.5 | 82.1 | 79.7 Z-177GX 40 114 2.253 EN 10270-1 357.1 263.84 149.84 74.8 | 88.4 | 77.0 | 59.1 Z-177K-01X 32 154 2.429 EN 10270-1 441.6 321.25 167.25 71.5 | 87.9 | 73.4 | 53.3 Z-166AX 35.2 90.8 2.557 EN 10270-1 290.5 197.11 106.31 72.5 | 90.1 | 75.8 | 51.5 Z-170X 28.2 118 2.762 EN 10270-1 358.7 239.37 121.37 69.4 | 90.5 | 69.9 | 47.6 Z-166X 35.2 87.6 2.774 EN 10270-1 290.5 185.57 97.97 70.2 | 89.3 | 73.7 | 47.5 Z-187X 36 160 2.868 EN 10270-1 528.1 332.1 172.1 67.1 | 86.1 | 69.2 | 45.9 Z-177K-11X 32 118 3.6 EN 10270-1 441.6 230.9 112.9 62.2 | 90.4 | 60.2 | 36.0 Z-186AX 36 132 3.84 EN 10270-1 528.1 260.7 128.7 61.6 | 91.8 | 58.7 | 34.3 Z-216JX 40 146 4.5 EN 10270-1 658.2 279.7 133.7 55.2 | 82.5 | 54.5 | 28.6 Z-186X 36 104 5.788 EN 10270-1 528.1 189.31 85.31 52.3 | 86.1 | 48.2 | 22.7 Z-216HX 40 110 7.32 EN 10270-1 658.2 192.2 82.2 47.0 | 81.5 | 42.0 | 17.6 Z-194AX 29 121 8.04 EN 10270-1 645.8 195.8 74.8 47.4 | 85.4 | 40.6 | 16.3 Z-246HX 40 116 11.64 EN 10270-1 873.5 184.6 68.6 41.6 | 80.6 | 33.2 | 11.1 Number of similar metal springs: 26 Customs tariff number: 73202085; Extension Spring Z-167X Country of origin: DE, German; Extension Spring Z-167X Product image - Extension Springs Z-167X QR-Code: Extension Spring Z-167X
