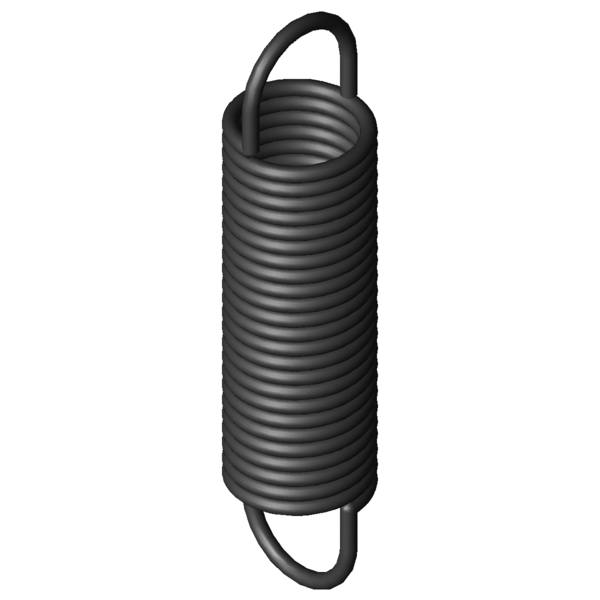

Home » Products » Extension Springs » z-170x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-170X Spring steel Ø 3.2 x 28.2 x 118 mm / 270° Scaled prices - Extension Spring Z-170X Quantity Single price [EUR] 1 7.0400 EUR 2 4.4400 EUR 3 3.4600 EUR 7 2.9500 EUR 17 2.9500 EUR 37 2.9500 EUR 75 2.9500 EUR 125 2.9500 EUR 175 2.9500 EUR 250 2.9500 EUR 350 2.9500 EUR 450 2.9500 EUR Extension Spring Buy Product image Extension Spring Z-170X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-170X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 28.2 mm outer coil diameter Dh 33.4 mm minimum bush diameter L0 118 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 82.4 mm length of unstressed spring body Ln 239.37 mm maximum spring length, inner loop to inner loop sn 121.37 mm Maximum spring deflection Fn 358.7 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 17.8 mm distance of inner edge of loop from the spring body R 2.762 N/mm Spring rate F0 23.5 N initial tension Fntol 19.94 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 29 degree (+/-) tolerance of loop position Weight 132.36 g weight of one spring Price group ###ZN - price group Technical drawing Extension Spring Datasheet Extension Spring Z-170X Spring steel Ø 3.2 x 28.2 x 118 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-170X Spring steel Ø 3.2 x 28.2 x 118 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-170X Spring steel Ø 3.2 x 28.2 x 118 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-170X Spring steel Ø 3.2 x 28.2 x 118 mm / 270° force-path-calculation Extension Spring Z-170X Inquiry formular Extension Spring Z-170X Spring steel Ø 3.2 x 28.2 x 118 mm / 270° Inquiry formular Extension Spring Z-170X Similar extension springs to Extension Spring Z-170X Spring steel Ø 3.2 x 28.2 x 118 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-170X EN 10270-1 3.2 28.2 118 358.7 239.37 121.37 2.762 67.8 | 91.4 | 67.2 | 44.7 RZ-170X 1.4310 3.2 28.2 118 297.5 235.48 117.48 2.373 91.9 | 100.0 | 89.9 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-133X 27 118 0.262 EN 10270-1 101.2 477.49 359.49 49.8 | 81.1 | 47.0 | 21.3 Z-147E-23X 30 133 0.279 EN 10270-1 118 537.1 404.1 52.3 | 87.8 | 47.1 | 22.1 Z-136AX 22 124 0.436 EN 10270-1 123.3 386.62 262.62 44.9 | 78.6 | 40.3 | 15.9 Z-147E-22X 30 102 0.449 EN 10270-1 118 353.6 251.6 60.0 | 82.3 | 62.2 | 35.5 Z-149X 34.5 112 0.491 EN 10270-1 148.5 394.65 282.65 63.7 | 87.9 | 63.5 | 39.8 Z-136X 22 110 0.513 EN 10270-1 123.3 333.3 223.3 47.0 | 77.9 | 44.4 | 18.7 Z-147JX 24 122 0.579 EN 10270-1 148 360.58 238.58 66.1 | 81.2 | 70.0 | 47.0 Z-153X 27.5 138 0.641 EN 10270-1 184.9 405.23 267.23 70.7 | 87.3 | 72.4 | 52.4 Z-152X 27.5 101 1.029 EN 10270-1 184.9 267.39 166.39 62.3 | 87.1 | 62.2 | 37.6 Z-162U-20X 32 128 1.219 EN 10270-1 265.6 329.03 201.03 100.0 | 100.0 | 100.0 | 100.0 Z-162HX 30 112 1.257 EN 10270-1 233.4 283.55 171.55 91.7 | 91.5 | 86.6 | 97.1 Z-162U-19X 32 108 1.63 EN 10270-1 265.6 258.3 150.3 85.6 | 94.8 | 87.4 | 74.8 Z-162K-21X 25 104 2.31 EN 10270-1 277.6 214.7 110.7 85.7 | 88.1 | 84.3 | 84.8 Z-162U-31X 24 133 2.64 EN 10270-1 348.5 254.61 121.61 68.3 | 90.4 | 68.4 | 46.1 Z-170X 28.2 118 2.762 EN 10270-1 358.7 239.37 121.37 67.8 | 91.4 | 67.2 | 44.7 Z-162U-30X 24 115 3.211 EN 10270-1 348.5 214.99 99.99 88.9 | 92.1 | 89.8 | 84.8 Z-177K-11X 32 118 3.6 EN 10270-1 441.6 230.9 112.9 61.3 | 91.8 | 58.2 | 33.8 Z-173X 23.2 110 5.395 EN 10270-1 430.1 184.1 74.1 71.7 | 91.8 | 72.2 | 50.9 Z-195X 29 149 6.015 EN 10270-1 645.8 249.05 100.05 49.9 | 83.8 | 45.4 | 20.5 Z-177NX 25 122 7.054 EN 10270-1 555.1 195.49 73.49 48.4 | 85.6 | 42.2 | 17.5 Z-194AX 29 121 8.04 EN 10270-1 645.8 195.8 74.8 47.1 | 86.7 | 39.2 | 15.3 Z-194X 29 93.6 12.139 EN 10270-1 645.8 143.18 49.58 52.1 | 85.5 | 48.2 | 22.7 Z-223JX 30 130 12.14 EN 10270-1 858.7 194.8 64.8 42.6 | 86.3 | 31.6 | 10.0 Z-202AX 24 113.5 15.71 EN 10270-1 765.7 157.9 44.4 48.6 | 87.1 | 41.7 | 17.1 Z-253JX 30 140 19.63 EN 10270-1 1134 192.2 52.2 37.5 | 81.7 | 24.7 | 6.1 Z-223HX 30 94 19.76 EN 10270-1 858.7 133.8 39.8 44.2 | 81.6 | 37.3 | 13.7 Z-230JX 25 124 23.37 EN 10270-1 1008 162.4 38.4 43.3 | 85.0 | 33.6 | 11.3 Z-253HX 30 100 31.96 EN 10270-1 1134 132 32 39.4 | 80.9 | 29.0 | 8.3 Number of similar metal springs: 27 Customs tariff number: 73202085; Extension Spring Z-170X Country of origin: DE, German; Extension Spring Z-170X Product image - Extension Springs Z-170X QR-Code: Extension Spring Z-170X
