Extension Spring Z-177K-11X Spring steel Ø 3.6 x 32 x 118 mm / 270°

Scaled prices - Extension Spring Z-177K-11X

Quantity	Single price [EUR]
1	12.7100 EUR
2	10.1200 EUR
3	5.6200 EUR
7	3.4700 EUR
17	3.4700 EUR
37	3.4700 EUR
75	3.4700 EUR
125	3.4700 EUR
175	3.4700 EUR
250	3.4700 EUR
350	3.4700 EUR

Extension Spring Buy

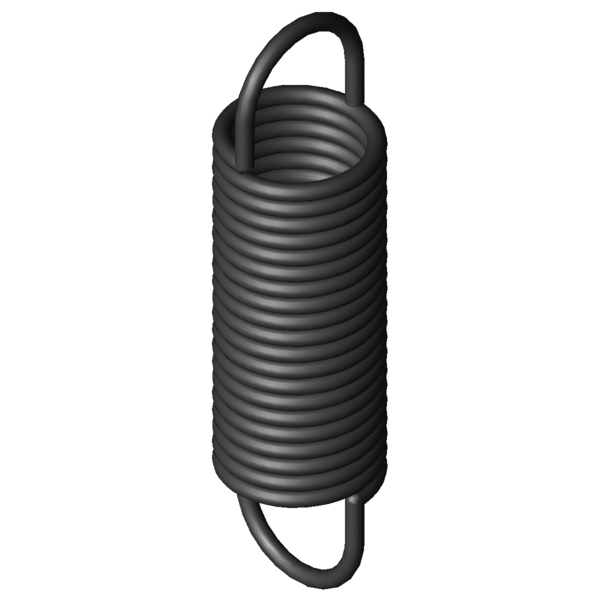

Product image Extension Spring Z-177K-11X

Quantity:Quantity: Add to shopping cart

Technical Data - Extension Spring Z-177K-11X

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	type of material
Eylet shape	1/1 deutsche	-	Eylet shape
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	prestressed spring deflection
F2		N	loaded spring force
L2		mm	loaded spring length
s2		mm	loaded spring deflection
Eyelet position	270	°	Eyelet position
d	3.6	mm	Wire diameter
D		mm	mean coil diameter
De	32	mm	outer coil diameter
Dh	37.8	mm	minimum bush diameter
L0	118	mm	length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk	78.3	mm	length of unstressed spring body
Ln	230.9	mm	maximum spring length, inner loop to inner loop
sn	112.9	mm	Maximum spring deflection
Fn	441.6	N	Maximum spring force
n		pc.	Number of aktive coils
nt		pc.	total number of coils
Lh	19.85	mm	distance of inner edge of loop from the spring body
R	3.6	N/mm	Spring rate
F0	35.3	N	initial tension
Fntol	22.9	N	(+/-) tolerance of maximum spring force
L0tol	2	mm	(+/-) tolerance of unstressed length
Detol	0.4	mm	(+/-) tolerance of outer coil diameter
Oesttol	25	degree	(+/-) tolerance of loop position
Weight	161.57	g	weight of one spring
Price group	###AC	-	price group

Technical drawing Extension Spring

Datasheet Extension Spring Z-177K-11X Spring steel Ø 3.6 x 32 x 118 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-177K-11X Spring steel Ø 3.6 x 32 x 118 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-177K-11X Spring steel Ø 3.6 x 32 x 118 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-177K-11X Spring steel Ø 3.6 x 32 x 118 mm / 270°

force-path-calculation Extension Spring Z-177K-11X

Inquiry formular Extension Spring Z-177K-11X Spring steel Ø 3.6 x 32 x 118 mm / 270°

Inquiry formular Extension Spring Z-177K-11X

Similar extension springs to Extension Spring Z-177K-11X Spring steel Ø 3.6 x 32 x 118 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
Z-177K-11X	EN 10270-1	3.6	32	118	441.6	230.9	112.9	3.6	100.0 \| 100.0 \| 100.0 \| 100.0
RZ-177K-11X	1.4310	3.6	32	118	368.5	228.1	110.1	3.092	92.0 \| 100.0 \| 90.5 \| 85.6

Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
Z-147E-22X	30	102	0.449	EN 10270-1	118	353.6	251.6	42.7 \| 80.4 \| 35.8 \| 12.0
Z-149X	34.5	112	0.491	EN 10270-1	148.5	394.65	282.65	45.3 \| 85.7 \| 36.8 \| 13.4
Z-147JX	24	122	0.579	EN 10270-1	148	360.58	238.58	44.6 \| 77.6 \| 40.4 \| 15.9
Z-162E-12X	38	126	0.58	EN 10270-1	180	422.2	296.2	46.7 \| 85.2 \| 39.4 \| 15.5
Z-162U-21X	32	146	1.003	EN 10270-1	265.6	390.49	244.49	56.3 \| 88.1 \| 53.2 \| 27.8
Z-152X	27.5	101	1.029	EN 10270-1	184.9	267.39	166.39	54.5 \| 80.3 \| 54.9 \| 28.4
Z-162U-20X	32	128	1.219	EN 10270-1	265.6	329.03	201.03	61.3 \| 91.8 \| 58.2 \| 33.8
Z-162HX	30	112	1.257	EN 10270-1	233.4	283.55	171.55	61.0 \| 88.8 \| 59.3 \| 34.8
Z-167X	35.2	129	1.317	EN 10270-1	290.5	335.36	206.36	62.2 \| 90.4 \| 60.2 \| 36.0
Z-162U-19X	32	108	1.63	EN 10270-1	265.6	258.3	150.3	68.1 \| 91.6 \| 67.6 \| 45.2
Z-177GX	40	114	2.253	EN 10270-1	357.1	263.84	149.84	77.1 \| 92.2 \| 78.1 \| 60.9
Z-162U-18X	32	83.5	2.65	EN 10270-1	265.6	175.9	92.4	51.5 \| 84.9 \| 47.4 \| 22.1
Z-170X	28.2	118	2.762	EN 10270-1	358.7	239.37	121.37	52.1 \| 85.5 \| 48.2 \| 22.7
Z-162U-30X	24	115	3.211	EN 10270-1	348.5	214.99	99.99	86.0 \| 85.3 \| 83.7 \| 89.1
Z-177K-11X	32	118	3.6	EN 10270-1	441.6	230.9	112.9	100.0 \| 100.0 \| 100.0 \| 100.0
Z-186AX	36	132	3.84	EN 10270-1	528.1	260.7	128.7	90.1 \| 89.4 \| 85.7 \| 95.3
Z-186X	36	104	5.788	EN 10270-1	528.1	189.31	85.31	77.3 \| 89.0 \| 79.6 \| 63.2
Z-177K-10X	32	89	5.86	EN 10270-1	441.6	158.4	69.4	70.2 \| 91.9 \| 69.9 \| 48.9
Z-177NX	25	122	7.054	EN 10270-1	555.1	195.49	73.49	71.9 \| 91.6 \| 72.3 \| 51.8
Z-194AX	29	121	8.04	EN 10270-1	645.8	195.8	74.8	80.6 \| 92.5 \| 83.1 \| 66.3
Z-246HX	40	116	11.64	EN 10270-1	873.5	184.6	68.6	56.6 \| 83.4 \| 55.7 \| 30.7
Z-194X	29	93.6	12.139	EN 10270-1	645.8	143.18	49.58	100.0 \| 100.0 \| 100.0 \| 100.0
Z-223JX	30	130	12.14	EN 10270-1	858.7	194.8	64.8	57.4 \| 88.2 \| 54.4 \| 29.5
Z-202AX	24	113.5	15.71	EN 10270-1	765.7	157.9	44.4	52.7 \| 87.1 \| 48.5 \| 22.7
Z-283HX	40	121	17.8	EN 10270-1	1134	178	57	48.5 \| 81.0 \| 44.7 \| 19.7
Z-253JX	30	140	19.63	EN 10270-1	1134	192.2	52.2	48.0 \| 83.3 \| 42.6 \| 18.0
Z-223HX	30	94	19.76	EN 10270-1	858.7	133.8	39.8	77.7 \| 95.0 \| 77.7 \| 60.4
Z-230JX	25	124	23.37	EN 10270-1	1008	162.4	38.4	46.1 \| 84.4 \| 38.9 \| 14.9
Z-253HX	30	100	31.96	EN 10270-1	1134	132	32	62.5 \| 90.1 \| 60.7 \| 36.8

Number of similar metal springs: 28

Customs tariff number: 73202085; Extension Spring Z-177K-11X

Country of origin: DE, German; Extension Spring Z-177K-11X
