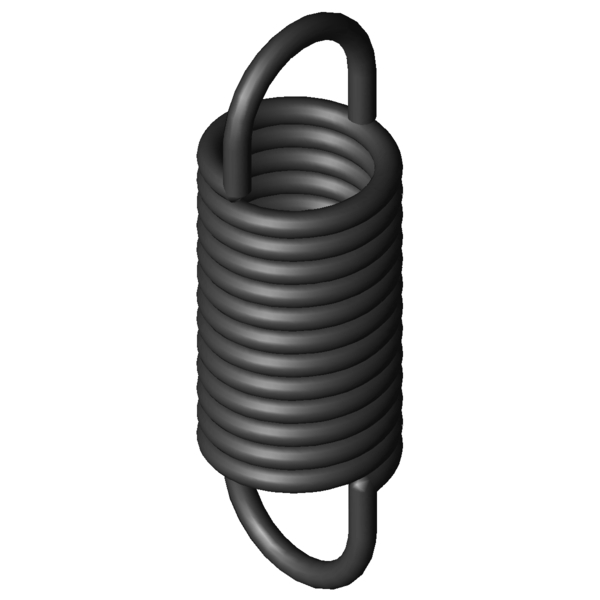

Home » Products » Extension Springs » z-283hx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-283HX Spring steel Ø 5.5 x 40 x 121 mm / 270° Scaled prices - Extension Spring Z-283HX Quantity Single price [EUR] 1 14.4000 EUR 2 11.4700 EUR 3 7.0900 EUR 7 5.2300 EUR 17 5.2300 EUR 37 5.2300 EUR 75 5.2300 EUR 125 5.2300 EUR 175 5.2300 EUR 250 5.2300 EUR 350 5.2300 EUR Extension Spring Buy Product image Extension Spring Z-283HX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-283HX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 5.5 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 48.8 mm minimum bush diameter L0 121 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 75.63 mm length of unstressed spring body Ln 178 mm maximum spring length, inner loop to inner loop sn 57 mm Maximum spring deflection Fn 1134 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 22.7 mm distance of inner edge of loop from the spring body R 17.8 N/mm Spring rate F0 120 N initial tension Fntol 69.6 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.5 mm (+/-) tolerance of outer coil diameter Oesttol 18 degree (+/-) tolerance of loop position Weight 295.2555 g weight of one spring Price group ###AK - price group Technical drawing Extension Spring Datasheet Extension Spring Z-283HX Spring steel Ø 5.5 x 40 x 121 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-283HX Spring steel Ø 5.5 x 40 x 121 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-283HX Spring steel Ø 5.5 x 40 x 121 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-283HX Spring steel Ø 5.5 x 40 x 121 mm / 270° force-path-calculation Extension Spring Z-283HX Inquiry formular Extension Spring Z-283HX Spring steel Ø 5.5 x 40 x 121 mm / 270° Inquiry formular Extension Spring Z-283HX Similar extension springs to Extension Spring Z-283HX Spring steel Ø 5.5 x 40 x 121 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-283HX EN 10270-1 5.5 40 121 1134 178 57 17.8 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-170X 28.2 118 2.762 EN 10270-1 358.7 239.37 121.37 43.2 | 75.4 | 39.3 | 14.9 Z-178X 44 117 2.964 EN 10270-1 436.3 255.96 138.96 47.4 | 86.8 | 39.7 | 15.8 Z-209LX 50 126 3.48 EN 10270-1 532.3 271 145 49.2 | 85.9 | 43.1 | 18.5 Z-177K-11X 32 118 3.6 EN 10270-1 441.6 230.9 112.9 48.5 | 81.0 | 44.7 | 19.7 Z-177FX 40 92.1 3.639 EN 10270-1 357.1 184.86 92.76 48.8 | 80.5 | 46.5 | 19.4 Z-186AX 36 132 3.84 EN 10270-1 528.1 260.7 128.7 50.3 | 84.8 | 45.4 | 20.6 Z-216JX 40 146 4.5 EN 10270-1 658.2 279.7 133.7 54.4 | 88.2 | 50.3 | 24.7 Z-239X 50 132 5.48 EN 10270-1 707.9 252.6 120.6 57.3 | 87.5 | 54.8 | 29.5 Z-186X 36 104 5.788 EN 10270-1 528.1 189.31 85.31 56.9 | 82.9 | 56.7 | 31.1 Z-246JX 40 156 7.15 EN 10270-1 873.5 267.6 111.6 64.3 | 89.5 | 64.1 | 39.3 Z-216HX 40 110 7.32 EN 10270-1 658.2 192.2 82.2 65.0 | 90.9 | 63.7 | 40.2 Z-194AX 29 121 8.04 EN 10270-1 645.8 195.8 74.8 63.9 | 81.7 | 66.6 | 43.4 Z-246HX 40 116 11.64 EN 10270-1 873.5 184.6 68.6 79.9 | 95.6 | 80.1 | 64.0 Z-223JX 30 130 12.14 EN 10270-1 858.7 194.8 64.8 77.2 | 83.3 | 81.8 | 66.6 Z-283HX 40 121 17.8 EN 10270-1 1134 178 57 100.0 | 100.0 | 100.0 | 100.0 Z-320HX 40 130 32.88 EN 10270-1 1632 173.5 43.5 73.1 | 93.5 | 72.9 | 53.0 Number of similar metal springs: 15 Customs tariff number: 73202085; Extension Spring Z-283HX Country of origin: DE, German; Extension Spring Z-283HX Product image - Extension Springs Z-283HX QR-Code: Extension Spring Z-283HX
