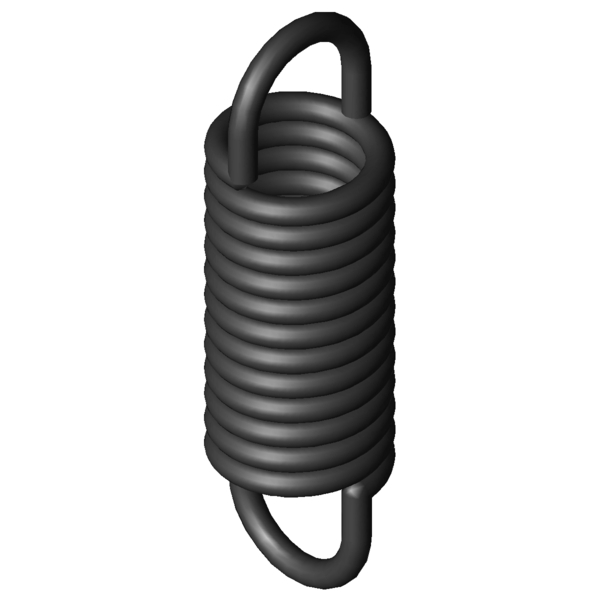

Home » Products » Extension Springs » z-320hx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-320HX Spring steel Ø 6.3 x 40 x 130 mm / 270° Scaled prices - Extension Spring Z-320HX Quantity Single price [EUR] 1 15.2800 EUR 2 12.1700 EUR 3 7.9400 EUR 7 6.0400 EUR 17 6.0400 EUR 37 6.0400 EUR 75 6.0400 EUR 125 6.0400 EUR 175 6.0400 EUR 250 6.0400 EUR 350 6.0400 EUR Extension Spring Buy Product image Extension Spring Z-320HX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-320HX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 6.3 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 50 mm minimum bush diameter L0 130 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 86.63 mm length of unstressed spring body Ln 173.5 mm maximum spring length, inner loop to inner loop sn 43.5 mm Maximum spring deflection Fn 1632 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 21.7 mm distance of inner edge of loop from the spring body R 32.88 N/mm Spring rate F0 200 N initial tension Fntol 116 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.5 mm (+/-) tolerance of outer coil diameter Oesttol 17 degree (+/-) tolerance of loop position Weight 378.4087 g weight of one spring Price group ###AN - price group Technical drawing Extension Spring Datasheet Extension Spring Z-320HX Spring steel Ø 6.3 x 40 x 130 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-320HX Spring steel Ø 6.3 x 40 x 130 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-320HX Spring steel Ø 6.3 x 40 x 130 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-320HX Spring steel Ø 6.3 x 40 x 130 mm / 270° force-path-calculation Extension Spring Z-320HX Inquiry formular Extension Spring Z-320HX Spring steel Ø 6.3 x 40 x 130 mm / 270° Inquiry formular Extension Spring Z-320HX Similar extension springs to Extension Spring Z-320HX Spring steel Ø 6.3 x 40 x 130 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-320HX EN 10270-1 6.3 40 130 1632 173.5 43.5 32.88 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-209LX 50 126 3.48 EN 10270-1 532.3 271 145 41.3 | 82.8 | 31.3 | 9.8 Z-177K-11X 32 118 3.6 EN 10270-1 441.6 230.9 112.9 39.7 | 76.0 | 32.8 | 10.4 Z-177FX 40 92.1 3.639 EN 10270-1 357.1 184.86 92.76 40.2 | 76.0 | 34.4 | 10.3 Z-186AX 36 132 3.84 EN 10270-1 528.1 260.7 128.7 42.7 | 84.0 | 33.1 | 10.9 Z-216JX 40 146 4.5 EN 10270-1 658.2 279.7 133.7 45.5 | 86.8 | 36.4 | 13.1 Z-239X 50 132 5.48 EN 10270-1 707.9 252.6 120.6 47.1 | 85.9 | 39.7 | 15.6 Z-186X 36 104 5.788 EN 10270-1 528.1 189.31 85.31 45.3 | 77.8 | 41.7 | 16.5 Z-246JX 40 156 7.15 EN 10270-1 873.5 267.6 111.6 51.6 | 87.6 | 46.3 | 20.9 Z-216HX 40 110 7.32 EN 10270-1 658.2 192.2 82.2 51.1 | 85.3 | 46.6 | 21.3 Z-276HX 50 138 8.29 EN 10270-1 921.2 239.4 101.4 53.7 | 87.2 | 49.7 | 24.2 Z-283JX 40 165 10.94 EN 10270-1 1134 257.7 92.7 59.8 | 88.7 | 58.2 | 32.6 Z-246HX 40 116 11.64 EN 10270-1 873.5 184.6 68.6 60.6 | 89.5 | 58.5 | 33.9 Z-223JX 30 130 12.14 EN 10270-1 858.7 194.8 64.8 59.1 | 82.1 | 59.9 | 35.3 Z-283HX 40 121 17.8 EN 10270-1 1134 178 57 73.1 | 93.5 | 72.9 | 53.0 Z-320HX 40 130 32.88 EN 10270-1 1632 173.5 43.5 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 14 Customs tariff number: 73202085; Extension Spring Z-320HX Country of origin: DE, German; Extension Spring Z-320HX Product image - Extension Springs Z-320HX QR-Code: Extension Spring Z-320HX
