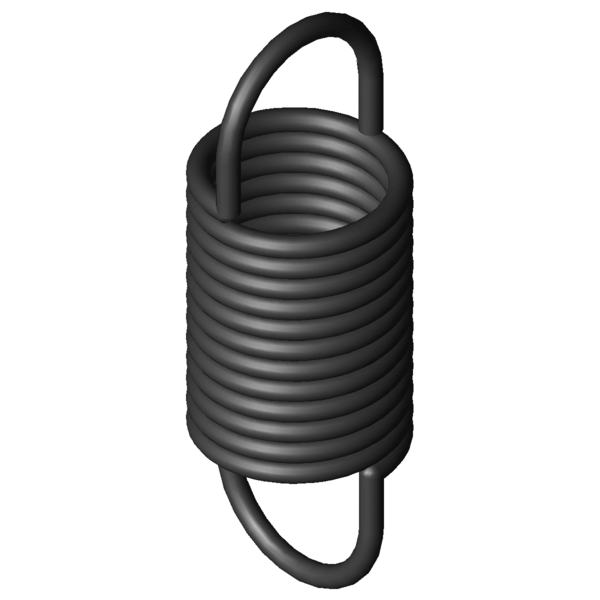

Home » Products » Extension Springs » z-276hx Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Extension Spring Z-276HX Spring steel Ø 5.5 x 50 x 138 mm / 270° Scaled prices - Extension Spring Z-276HX Quantity Single price [EUR] 1 14.4000 EUR 2 11.4700 EUR 3 7.0900 EUR 7 5.2300 EUR 17 5.2300 EUR 37 5.2300 EUR 75 5.2300 EUR 125 5.2300 EUR 175 5.2300 EUR 250 5.2300 EUR 350 5.2300 EUR Extension Spring Buy Product image Extension Spring Z-276HX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-276HX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm prestressed spring deflection F2 - N loaded spring force L2 - mm loaded spring length s2 - mm loaded spring deflection Eyelet position 270 ° Eyelet position d 5.5 mm Wire diameter D - mm mean coil diameter De 50 mm outer coil diameter Dh 59.1 mm minimum bush diameter L0 138 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 75.63 mm length of unstressed spring body Ln 239.4 mm maximum spring length, inner loop to inner loop sn 101.4 mm Maximum spring deflection Fn 921.2 N Maximum spring force n - pc. Number of aktive coils nt - pc. total number of coils Lh 31.2 mm distance of inner edge of loop from the spring body R 8.29 N/mm Spring rate F0 80 N initial tension Fntol 47.9 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.8 mm (+/-) tolerance of outer coil diameter Oesttol 20 degree (+/-) tolerance of loop position Weight 380.8368 g weight of one spring Price group ###AK - price group Technical drawing Extension Spring Datasheet Extension Spring Z-276HX Spring steel Ø 5.5 x 50 x 138 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-276HX Spring steel Ø 5.5 x 50 x 138 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-276HX Spring steel Ø 5.5 x 50 x 138 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-276HX Spring steel Ø 5.5 x 50 x 138 mm / 270° force-path-calculation Extension Spring Z-276HX Inquiry formular Extension Spring Z-276HX Spring steel Ø 5.5 x 50 x 138 mm / 270° Inquiry formular Extension Spring Z-276HX Similar extension springs to Extension Spring Z-276HX Spring steel Ø 5.5 x 50 x 138 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-276HX EN 10270-1 5.5 50 138 921.2 239.4 101.4 8.29 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-209MX 50 162 2.14 EN 10270-1 532.3 397.9 235.9 54.7 | 89.0 | 50.4 | 24.8 Z-177GX 40 114 2.253 EN 10270-1 357.1 263.84 149.84 51.8 | 76.0 | 53.2 | 26.2 Z-178X 44 117 2.964 EN 10270-1 436.3 255.96 138.96 58.9 | 81.8 | 60.2 | 34.6 Z-238AX 60 149 3 EN 10270-1 585 334.9 185.9 60.9 | 89.0 | 59.0 | 34.6 Z-239AX 50 172 3.36 EN 10270-1 707.9 368.3 196.3 64.8 | 90.4 | 64.3 | 39.7 Z-209LX 50 126 3.48 EN 10270-1 532.3 271 145 65.1 | 91.0 | 63.9 | 40.4 Z-186AX 36 132 3.84 EN 10270-1 528.1 260.7 128.7 64.5 | 80.1 | 68.1 | 45.2 Z-216JX 40 146 4.5 EN 10270-1 658.2 279.7 133.7 71.1 | 85.4 | 73.6 | 54.2 Z-260HX 60 154 4.51 EN 10270-1 774.5 317.1 163.1 72.1 | 91.0 | 73.1 | 52.3 Z-276JX 50 182 5.09 EN 10270-1 921.2 347 165 78.0 | 91.9 | 80.7 | 61.5 Z-239X 50 132 5.48 EN 10270-1 707.9 252.6 120.6 80.2 | 95.5 | 80.5 | 64.6 Z-246JX 40 156 7.15 EN 10270-1 873.5 267.6 111.6 88.5 | 86.5 | 92.8 | 86.2 Z-216HX 40 110 7.32 EN 10270-1 658.2 192.2 82.2 81.6 | 80.5 | 76.3 | 88.1 Z-306HX 60 162 8.12 EN 10270-1 1122 290.2 128.2 87.4 | 85.3 | 80.6 | 96.3 Z-276HX 50 138 8.29 EN 10270-1 921.2 239.4 101.4 100.0 | 100.0 | 100.0 | 100.0 Z-283JX 40 165 10.94 EN 10270-1 1134 257.7 92.7 82.8 | 87.9 | 86.3 | 74.3 Z-246HX 40 116 11.64 EN 10270-1 873.5 184.6 68.6 79.2 | 85.0 | 81.2 | 71.3 Z-313HX 50 145 15.08 EN 10270-1 1331 225.2 80.2 74.4 | 94.2 | 74.2 | 54.7 Z-283HX 40 121 17.8 EN 10270-1 1134 178 57 67.9 | 89.2 | 68.7 | 45.7 Z-320HX 40 130 32.88 EN 10270-1 1632 173.5 43.5 53.7 | 87.2 | 49.7 | 24.2 Number of similar metal springs: 19 Customs tariff number: 73202085; Extension Spring Z-276HX Country of origin: DE, German; Extension Spring Z-276HX Product image - Extension Springs Z-276HX QR-Code: Extension Spring Z-276HX
