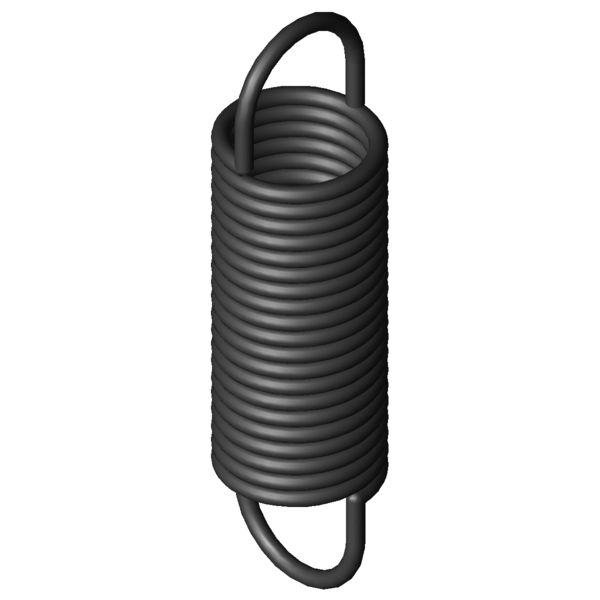

Home » Products » Extension Springs » z-276jx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-276JX Spring steel Ø 5.5 x 50 x 182 mm / 270° Scaled prices - Extension Spring Z-276JX Quantity Single price [EUR] 1 15.2800 EUR 2 12.1700 EUR 3 7.9400 EUR 7 6.0400 EUR 17 6.0400 EUR 37 6.0400 EUR 75 6.0400 EUR 125 6.0400 EUR 175 6.0400 EUR 250 6.0400 EUR 350 6.0400 EUR Extension Spring Buy Product image Extension Spring Z-276JX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-276JX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 5.5 mm Wire diameter D mm mean coil diameter De 50 mm outer coil diameter Dh 59.1 mm minimum bush diameter L0 182 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 119.63 mm length of unstressed spring body Ln 347 mm maximum spring length, inner loop to inner loop sn 165 mm Maximum spring deflection Fn 921.2 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 31.2 mm distance of inner edge of loop from the spring body R 5.09 N/mm Spring rate F0 80 N initial tension Fntol 46.2 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.8 mm (+/-) tolerance of outer coil diameter Oesttol 25 degree (+/-) tolerance of loop position Weight 590.9405 g weight of one spring Price group ###AN - price group Technical drawing Extension Spring Datasheet Extension Spring Z-276JX Spring steel Ø 5.5 x 50 x 182 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-276JX Spring steel Ø 5.5 x 50 x 182 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-276JX Spring steel Ø 5.5 x 50 x 182 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-276JX Spring steel Ø 5.5 x 50 x 182 mm / 270° force-path-calculation Extension Spring Z-276JX Inquiry formular Extension Spring Z-276JX Spring steel Ø 5.5 x 50 x 182 mm / 270° Inquiry formular Extension Spring Z-276JX Similar extension springs to Extension Spring Z-276JX Spring steel Ø 5.5 x 50 x 182 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-276JX EN 10270-1 5.5 50 182 921.2 347 165 5.09 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-209BX 60 180 1.18 EN 10270-1 438 534.1 354.1 52.4 | 88.0 | 47.1 | 22.2 Z-211X 50 222 1.314 EN 10270-1 532.3 605.81 383.81 54.4 | 87.9 | 50.4 | 24.8 Z-179X 44 173 1.466 EN 10270-1 436.3 453.44 280.44 55.4 | 85.3 | 53.1 | 27.9 Z-210X 50 195 1.598 EN 10270-1 532.3 510.58 315.58 59.0 | 91.7 | 55.0 | 30.2 Z-238BX 60 189 1.84 EN 10270-1 585 491.6 302.6 61.3 | 90.2 | 59.0 | 34.6 Z-178AX 44 145 1.96 EN 10270-1 436.3 354.7 209.7 60.1 | 80.1 | 63.0 | 37.3 Z-241X 50 238 2.07 EN 10270-1 707.9 557.23 319.23 64.4 | 89.1 | 64.3 | 39.7 Z-209MX 50 162 2.14 EN 10270-1 532.3 397.9 235.9 64.9 | 90.3 | 63.9 | 40.4 Z-240X 50 208 2.518 EN 10270-1 707.9 470.48 262.48 70.3 | 92.8 | 69.9 | 48.3 Z-260JX 60 198 2.77 EN 10270-1 774.5 463.4 265.4 72.4 | 91.8 | 73.1 | 52.3 Z-239AX 50 172 3.36 EN 10270-1 707.9 368.3 196.3 80.1 | 95.1 | 80.5 | 64.6 Z-217X 40 179 3.365 EN 10270-1 658.2 357.83 178.83 78.2 | 86.7 | 81.9 | 65.9 Z-209LX 50 126 3.48 EN 10270-1 532.3 271 145 74.1 | 83.7 | 72.8 | 65.8 Z-277X 50 222 3.812 EN 10270-1 921.2 442.68 220.68 85.4 | 94.0 | 87.4 | 74.8 Z-276JX 50 182 5.09 EN 10270-1 921.2 347 165 100.0 | 100.0 | 100.0 | 100.0 Z-247X 40 192 5.352 EN 10270-1 873.5 341.22 149.22 92.2 | 88.6 | 92.6 | 95.4 Z-239X 50 132 5.48 EN 10270-1 707.9 252.6 120.6 86.0 | 87.8 | 75.0 | 95.1 Z-306HX 60 162 8.12 EN 10270-1 1122 290.2 128.2 76.7 | 86.5 | 79.9 | 63.8 Z-276HX 50 138 8.29 EN 10270-1 921.2 239.4 101.4 78.0 | 91.9 | 80.7 | 61.5 Z-313JX 50 195 9.26 EN 10270-1 1331 325.7 130.7 74.2 | 93.5 | 74.2 | 54.8 Z-283JX 40 165 10.94 EN 10270-1 1134 257.7 92.7 68.2 | 90.2 | 68.7 | 45.6 Z-350HX 50 210 14.83 EN 10270-1 1763 315.4 105.4 60.0 | 88.4 | 58.1 | 33.4 Z-313HX 50 145 15.08 EN 10270-1 1331 225.2 80.2 60.5 | 89.0 | 58.9 | 33.6 Z-320JX 40 180 20.2 EN 10270-1 1632 250.9 70.9 54.2 | 88.7 | 49.7 | 24.3 Z-380HX 50 227 27.14 EN 10270-1 2515 308 81 47.9 | 83.0 | 42.9 | 18.0 Number of similar metal springs: 24 Customs tariff number: 73202085; Extension Spring Z-276JX Country of origin: DE, German; Extension Spring Z-276JX Product image - Extension Springs Z-276JX QR-Code: Extension Spring Z-276JX
