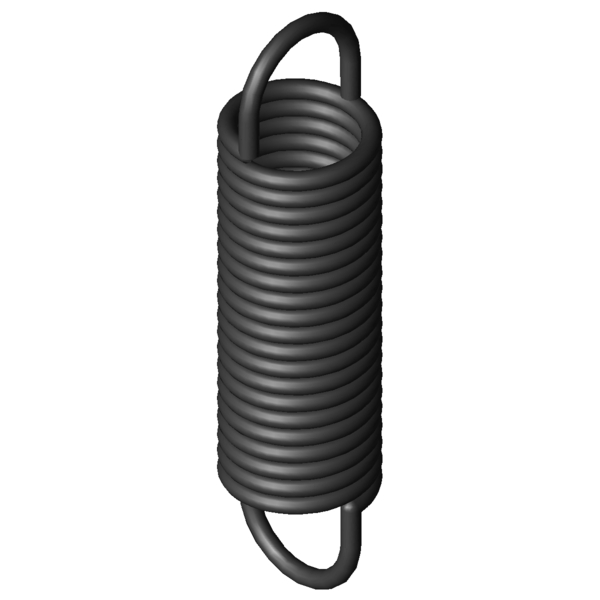

Home » Products » Extension Springs » z-313jx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-313JX Spring steel Ø 6.3 x 50 x 195 mm / 270° Scaled prices - Extension Spring Z-313JX Quantity Single price [EUR] 1 15.7400 EUR 2 12.5400 EUR 3 8.4100 EUR 7 6.6100 EUR 17 6.6100 EUR 37 6.6100 EUR 75 6.6100 EUR 125 6.6100 EUR 175 6.6100 EUR 250 6.6100 EUR 350 6.6100 EUR Extension Spring Buy Product image Extension Spring Z-313JX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-313JX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 6.3 mm Wire diameter D mm mean coil diameter De 50 mm outer coil diameter Dh 60 mm minimum bush diameter L0 195 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 137.03 mm length of unstressed spring body Ln 325.7 mm maximum spring length, inner loop to inner loop sn 130.7 mm Maximum spring deflection Fn 1331 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 29 mm distance of inner edge of loop from the spring body R 9.26 N/mm Spring rate F0 120 N initial tension Fntol 71.9 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 25 degree (+/-) tolerance of loop position Weight 761.4102 g weight of one spring Price group ###AP - price group Technical drawing Extension Spring Datasheet Extension Spring Z-313JX Spring steel Ø 6.3 x 50 x 195 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-313JX Spring steel Ø 6.3 x 50 x 195 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-313JX Spring steel Ø 6.3 x 50 x 195 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-313JX Spring steel Ø 6.3 x 50 x 195 mm / 270° force-path-calculation Extension Spring Z-313JX Inquiry formular Extension Spring Z-313JX Spring steel Ø 6.3 x 50 x 195 mm / 270° Inquiry formular Extension Spring Z-313JX Similar extension springs to Extension Spring Z-313JX Spring steel Ø 6.3 x 50 x 195 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-313JX EN 10270-1 6.3 50 195 1331 325.7 130.7 9.26 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-241X 50 238 2.07 EN 10270-1 707.9 557.23 319.23 52.0 | 87.1 | 47.1 | 21.8 Z-209MX 50 162 2.14 EN 10270-1 532.3 397.9 235.9 51.6 | 84.8 | 47.7 | 22.2 Z-240X 50 208 2.518 EN 10270-1 707.9 470.48 262.48 56.3 | 91.0 | 51.5 | 26.5 Z-218X 40 206 2.767 EN 10270-1 658.2 423.5 217.5 55.5 | 82.0 | 54.8 | 29.7 Z-260JX 60 198 2.77 EN 10270-1 774.5 463.4 265.4 57.4 | 89.7 | 53.7 | 28.7 Z-239AX 50 172 3.36 EN 10270-1 707.9 368.3 196.3 61.5 | 89.2 | 59.9 | 35.4 Z-217X 40 179 3.365 EN 10270-1 658.2 357.83 178.83 59.5 | 81.1 | 61.3 | 36.1 Z-277X 50 222 3.812 EN 10270-1 921.2 442.68 220.68 65.6 | 91.7 | 64.2 | 41.0 Z-306JX 60 212 4.99 EN 10270-1 1122 420.6 208.6 72.7 | 91.8 | 73.5 | 52.8 Z-276JX 50 182 5.09 EN 10270-1 921.2 347 165 74.2 | 93.5 | 74.2 | 54.8 Z-247X 40 192 5.352 EN 10270-1 873.5 341.22 149.22 73.3 | 85.9 | 76.6 | 57.5 Z-314X 50 242 6.93 EN 10270-1 1331 416.85 174.85 85.2 | 93.5 | 87.4 | 74.7 Z-284X 40 205 8.181 EN 10270-1 1134 328.97 123.97 89.1 | 87.5 | 90.0 | 89.8 Z-276HX 50 138 8.29 EN 10270-1 921.2 239.4 101.4 82.9 | 86.0 | 73.4 | 89.2 Z-313JX 50 195 9.26 EN 10270-1 1331 325.7 130.7 100.0 | 100.0 | 100.0 | 100.0 Z-350HX 50 210 14.83 EN 10270-1 1763 315.4 105.4 77.7 | 94.3 | 78.1 | 60.9 Z-313HX 50 145 15.08 EN 10270-1 1331 225.2 80.2 77.8 | 91.5 | 80.7 | 61.4 Z-320JX 40 180 20.2 EN 10270-1 1632 250.9 70.9 67.6 | 90.8 | 67.9 | 44.2 Z-380HX 50 227 27.14 EN 10270-1 2515 308 81 59.5 | 88.2 | 57.4 | 32.8 Number of similar metal springs: 18 Customs tariff number: 73202085; Extension Spring Z-313JX Country of origin: DE, German; Extension Spring Z-313JX Product image - Extension Springs Z-313JX QR-Code: Extension Spring Z-313JX
