Extension Spring Z-166AX Spring steel Ø 3.2 x 35.2 x 90.8 mm / 270°

Scaled prices - Extension Spring Z-166AX

Quantity Single price [EUR]
1 6.8600 EUR
2 4.3200 EUR
3 3.3700 EUR
7 2.8700 EUR
17 2.8700 EUR
37 2.8700 EUR
75 2.8700 EUR
125 2.8700 EUR
175 2.8700 EUR
250 2.8700 EUR
350 2.8700 EUR
450 2.8700 EUR

Extension Spring Buy

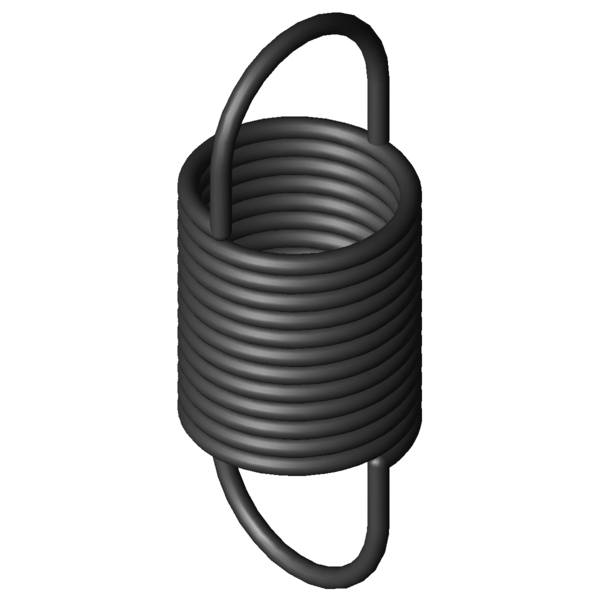

Product image Extension Spring Z-166AX
Product image Extension Spring Z-166AX
Quantity: Add to shopping cart

Technical Data - Extension Spring Z-166AX

Formula symbols Value Unit Description
Material EN 10270-1 - type of material
Eylet shape 1/1 deutsche - Eylet shape
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm prestressed spring deflection
F2 N loaded spring force
L2 mm loaded spring length
s2 mm loaded spring deflection
Eyelet position 270 ° Eyelet position
d 3.2 mm Wire diameter
D mm mean coil diameter
De 35.2 mm outer coil diameter
Dh 40.6 mm minimum bush diameter
L0 90.8 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk 44 mm length of unstressed spring body
Ln 197.11 mm maximum spring length, inner loop to inner loop
sn 106.31 mm Maximum spring deflection
Fn 290.5 N Maximum spring force
n pc. Number of aktive coils
nt pc. total number of coils
Lh 23.4 mm distance of inner edge of loop from the spring body
R 2.557 N/mm Spring rate
F0 18.77 N initial tension
Fntol 17.77 N (+/-) tolerance of maximum spring force
L0tol 1.8 mm (+/-) tolerance of unstressed length
Detol 0.6 mm (+/-) tolerance of outer coil diameter
Oesttol 23 degree (+/-) tolerance of loop position
Weight 92.7 g weight of one spring
Price group ###ZM - price group
Technical drawing Extension Spring
Technical drawing Extension Spring

Datasheet Extension Spring Z-166AX Spring steel Ø 3.2 x 35.2 x 90.8 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-166AX Spring steel Ø 3.2 x 35.2 x 90.8 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-166AX Spring steel Ø 3.2 x 35.2 x 90.8 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-166AX Spring steel Ø 3.2 x 35.2 x 90.8 mm / 270°

force-path-calculation Extension Spring Z-166AX

Inquiry formular Extension Spring Z-166AX Spring steel Ø 3.2 x 35.2 x 90.8 mm / 270°

Inquiry formular Extension Spring Z-166AX

Similar extension springs to Extension Spring Z-166AX Spring steel Ø 3.2 x 35.2 x 90.8 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness
Z-166AX EN 10270-1 3.2 35.2 90.8 290.5 197.11 106.31 2.557 100.0 | 100.0 | 100.0 | 100.0
RZ-166AX 1.4310 3.2 35.2 90.8 240.9 193.7 102.9 2.196 91.8 | 100.0 | 89.9 | 85.7
Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority
article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %
Overall | Geometrie | Load | Stiffness
Z-149X 34.5 112 0.491 EN 10270-1 148.5 394.65 282.65 49.8 | 85.7 | 44.4 | 19.2
Z-132X 27 78.8 0.528 EN 10270-1 101.2 257.41 178.61 47.7 | 75.3 | 47.2 | 20.7
Z-147E-21X 30 82.3 0.705 EN 10270-1 118 242.3 160 54.0 | 81.5 | 53.5 | 27.0
Z-162E-11X 38 100.5 0.91 EN 10270-1 180 289 188.5 61.4 | 90.2 | 59.2 | 34.9
Z-147HX 24 88.6 0.931 EN 10270-1 148 237.15 148.55 58.6 | 78.2 | 61.3 | 36.5
Z-152X 27.5 101 1.029 EN 10270-1 184.9 267.39 166.39 62.2 | 82.1 | 63.8 | 40.7
Z-148X 34.5 79.7 1.034 EN 10270-1 148.5 213.89 134.19 64.5 | 88.0 | 65.2 | 40.5
Z-162U-10X 40 101 1.1 EN 10270-1 214.2 284.5 183.5 66.4 | 90.6 | 65.8 | 42.7
Z-162HX 30 112 1.257 EN 10270-1 233.4 283.55 171.55 68.5 | 84.6 | 71.2 | 49.8
Z-163X 43.2 100 1.421 EN 10270-1 238.4 259.52 159.52 73.3 | 90.8 | 74.4 | 54.7
Z-162E-10X 38 83.5 1.47 EN 10270-1 180 200.2 116.7 74.6 | 90.7 | 76.5 | 56.4
Z-162U-19X 32 108 1.63 EN 10270-1 265.6 258.3 150.3 78.4 | 89.6 | 81.1 | 64.7
Z-162GX 30 86.6 1.976 EN 10270-1 233.4 195.77 109.17 85.5 | 89.4 | 88.9 | 78.2
Z-155X 22.5 93 2.01 EN 10270-1 223.8 195.56 102.56 82.2 | 79.9 | 86.8 | 79.9
Z-166AX 35.2 90.8 2.557 EN 10270-1 290.5 197.11 106.31 100.0 | 100.0 | 100.0 | 100.0
Z-162U-18X 32 83.5 2.65 EN 10270-1 265.6 175.9 92.4 92.1 | 92.2 | 89.2 | 95.1
Z-166X 35.2 87.6 2.774 EN 10270-1 290.5 185.57 97.97 95.7 | 98.8 | 96.1 | 92.2
Z-162FX 30 69.8 3.191 EN 10270-1 233.4 137.38 67.58 78.1 | 83.2 | 72.0 | 79.1
Z-177FX 40 92.1 3.639 EN 10270-1 357.1 184.86 92.76 82.4 | 91.8 | 84.3 | 71.0
Z-162U-29X 24 94 4.29 EN 10270-1 348.5 168.8 74.8 73.9 | 86.2 | 76.9 | 58.7
Z-186X 36 104 5.788 EN 10270-1 528.1 189.31 85.31 66.7 | 88.4 | 67.6 | 44.1
Z-169X 28.2 76.4 5.818 EN 10270-1 358.7 134.02 57.62 66.5 | 88.1 | 67.6 | 43.9
Z-177K-10X 32 89 5.86 EN 10270-1 441.6 158.4 69.4 67.0 | 92.6 | 65.5 | 42.9
Z-216HX 40 110 7.32 EN 10270-1 658.2 192.2 82.2 58.5 | 80.6 | 60.7 | 34.1
Z-177MX 25 89.7 11.086 EN 10270-1 555.1 136.46 46.76 52.5 | 86.2 | 48.2 | 23.0
Z-194X 29 93.6 12.139 EN 10270-1 645.8 143.18 49.58 51.1 | 86.5 | 45.8 | 21.0
Z-223HX 30 94 19.76 EN 10270-1 858.7 133.8 39.8 44.2 | 84.3 | 35.6 | 12.7
Z-202X 24 85.6 23.709 EN 10270-1 765.7 115 29.4 41.4 | 80.8 | 32.8 | 10.5
Z-253HX 30 100 31.96 EN 10270-1 1134 132 32 38.5 | 80.0 | 27.9 | 7.7
Z-230HX 25 87 38.03 EN 10270-1 1008 110.6 23.6 37.1 | 79.3 | 25.5 | 6.4
Number of similar metal springs: 29

Customs tariff number: 73202085; Extension Spring Z-166AX

Country of origin: DE, German; Extension Spring Z-166AX
